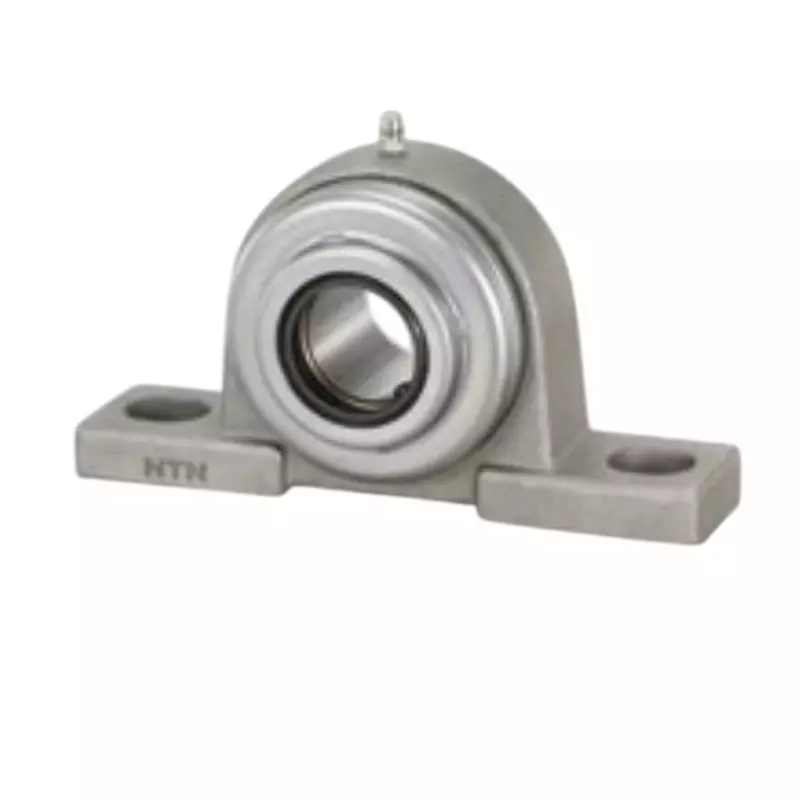

| Type of Product | Stainless Steel Series Bearing Unit Pillow Type Unit F-FS-UCPM2 Type |
| Model No | F-FS-UCPM202/LP09 |
| Monotaro ID | 79830094 |
| Lubrication | Oil-free type |
Type of Product |
Stainless Steel Series Bearing Unit Pillow Type Unit F-FS-UCPM2 Type |
Model No |
F-FS-UCPM202/LP09 |
Monotaro ID |
79830094 |
Lubrication |
Oil-free type |
Shape |
Pillow type |

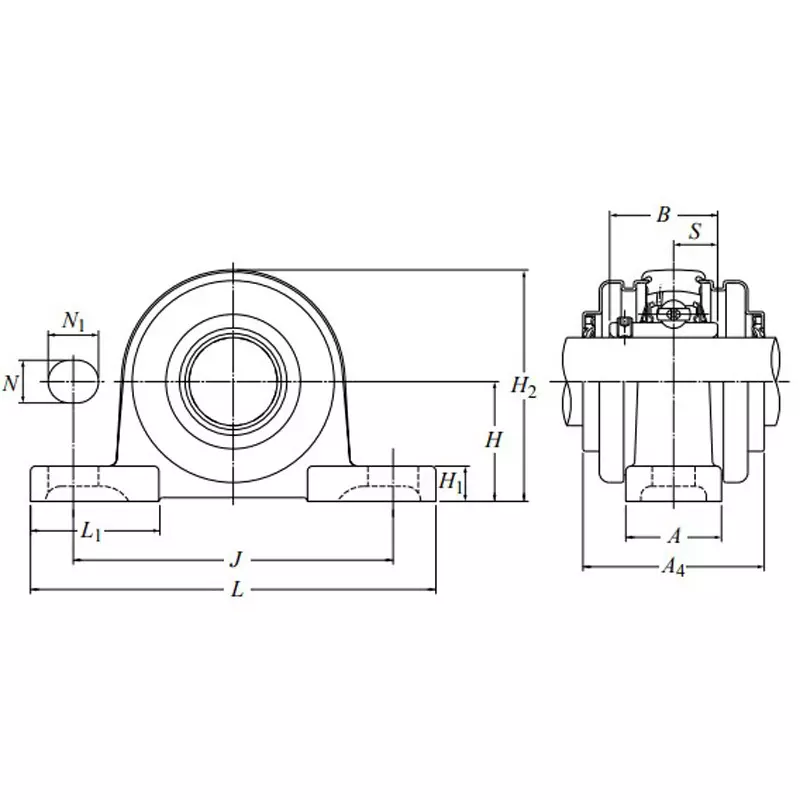

Dimensions H (mm) |
33.299999999999997 |
Dimensions A (mm) |
30 |
Cover |
Stainless steel cover with rubber seals on both sides |
Shank Diameter (Φmm) |
15 |
Dimension N1 (mm) |
14 |
Grease symbol |
LP09 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
120 |
Dimension L1 |
42 mm |
Dimension H1 |
11 mm |
RoHS Directive |
Correspondence |
Dimension n (mm) |
12 |
Dimension J (mm) |
95 |
Dimension H2 |
64 mm |
