| Type of Product | Bearing Unit Pillow Type Oil-Free Type |
| Model No | C-UCP215 |
| Monotaro ID | 353701 |
| Mass (Kg) | 11 Kg (Reference) |
Type of Product |
Bearing Unit Pillow Type Oil-Free Type |
Model No |
C-UCP215 |
Monotaro ID |
353701 |
Mass (Kg) |
11 Kg (Reference) |

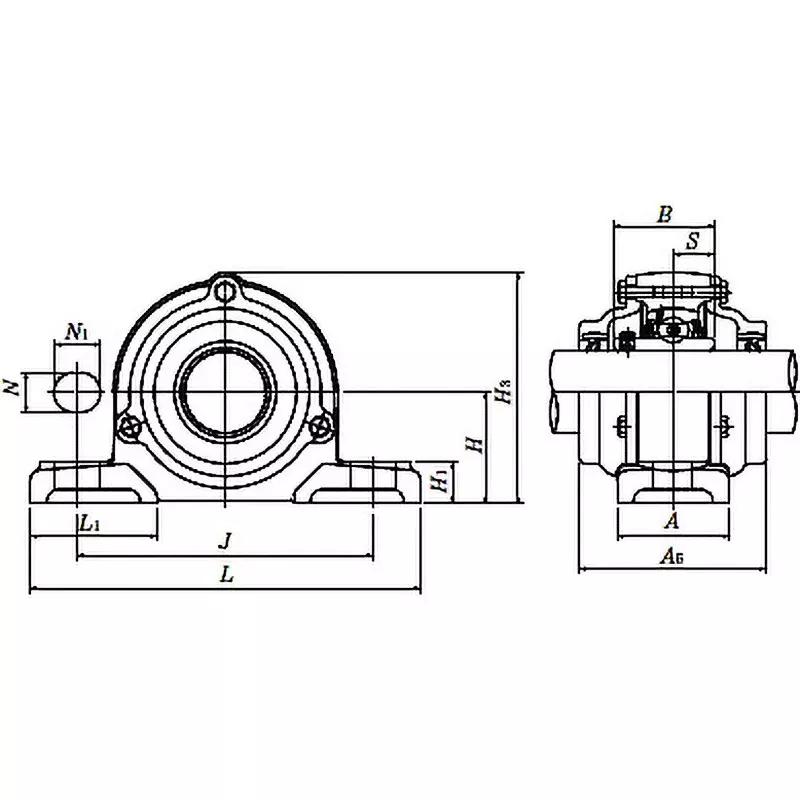

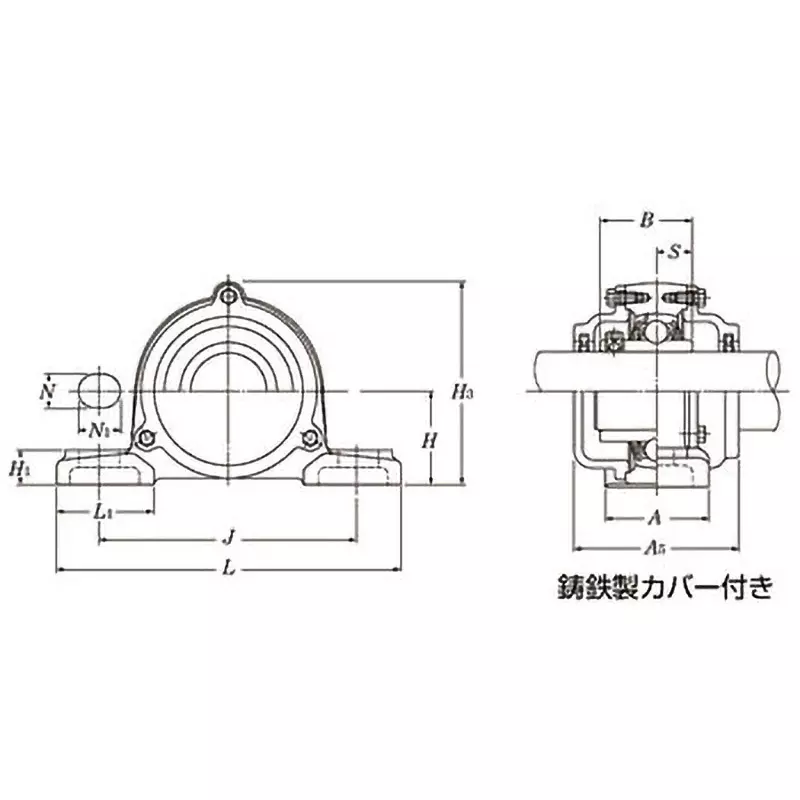

Dimensions B (mm) |
77.8 |
Shape |
Pillow unit |
Dimensions H (mm) |
82.6 |
Dimensions A (mm) |
74 |
Cover |
Cast iron cover with rubber seals on both sides |
Shank Diameter (Φmm) |
75 |
Basic Static Load Rating (kN) |
49.5 |
Basic Dynamic Load Rating (kN) |
66 |
Grease Nipple |
No grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type |
Nominal Size of Mounting Bolt |
M20 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
275 |
Dimension T |
4 mm |
Dimension L1 |
80 mm |
Dimension H1 |
28 mm |
Dimension S |
33.3 mm |
Dimension n (mm) |
25 |
Dimension J (mm) |
217 |
