Ships within 25 days
View
View
View
View

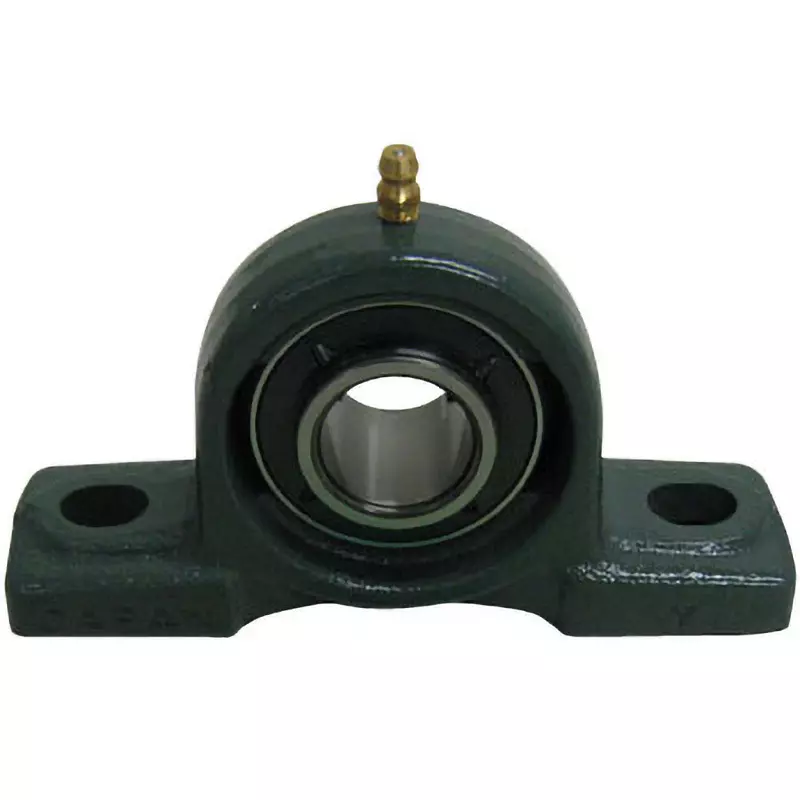

| Type of Product | Bearing Unit Pillow Type Oil Supply Type for Heat Resistance |
| Model No | UCP202HT2D1 |
| Monotaro ID | 355625 |

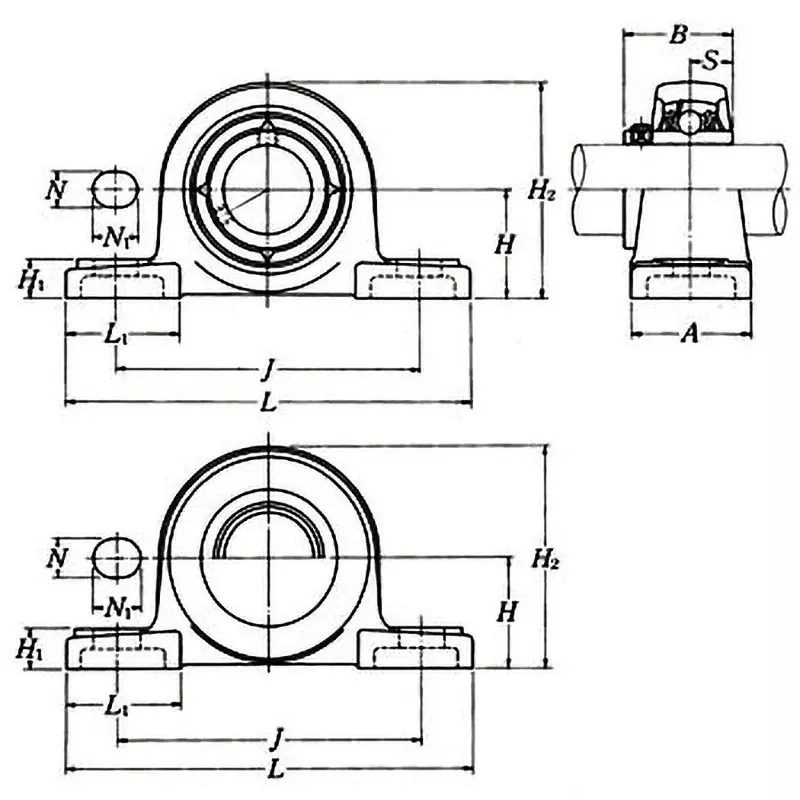

| Dimensions B (mm) | 31 |
Type of Product |
Bearing Unit Pillow Type Oil Supply Type for Heat Resistance |
Model No |
UCP202HT2D1 |
Monotaro ID |
355625 |
Dimensions B (mm) |
31 |
Shape |
Pillow unit |
Dimensions H (mm) |
30.2 |
Dimensions A (mm) |
38 |
Cover |
Without cover |
Shank Diameter (Φmm) |
15 |
Basic Static Load Rating (kN) |
6.65 |
Basic Dynamic Load Rating (kN) |
12.8 |
Grease Nipple |
With silicone grease (for heat and cold resistance) |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type |
Dimension N1 (mm) |
16 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
127 |
Dimension L1 |
42 mm |
Dimension H1 |
14 mm |
Dimension S |
12.7 mm |
Dimension n (mm) |
13 |
Dimension J (mm) |
95 |
Dimension H2 |
62 mm |
