Ships within 25 days
View
View
View
View

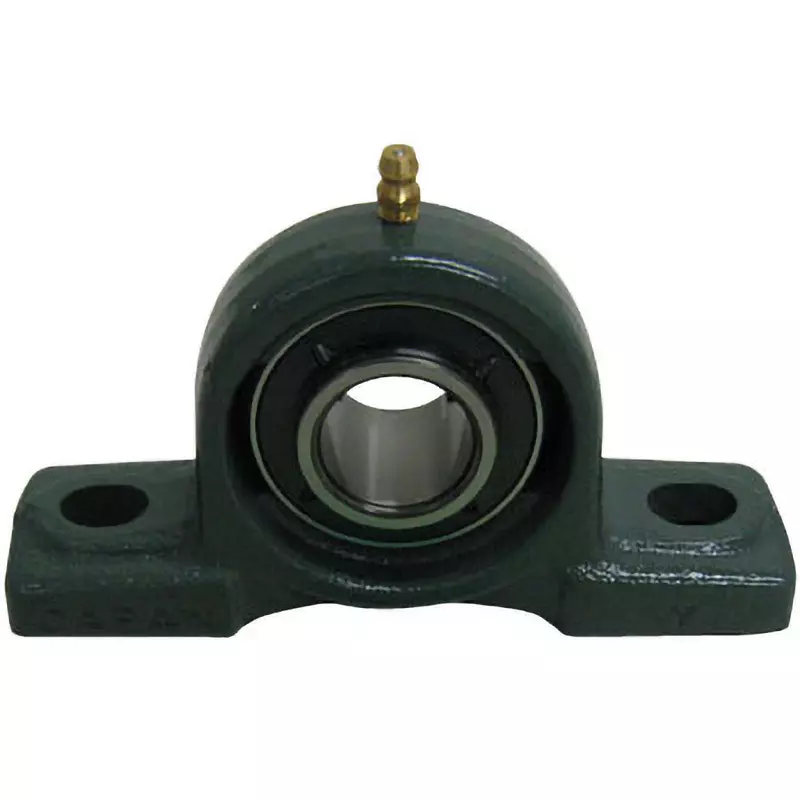

| Type of Product | Bearing Unit Cast Iron Pillow Unit for Oil-Resistant Heat Resistance |
| Model No | UCP310HT2D1 |
| Monotaro ID | 359475 |
| Dimensions B (mm) | 61 |
Type of Product |
Bearing Unit Cast Iron Pillow Unit for Oil-Resistant Heat Resistance |
Model No |
UCP310HT2D1 |
Monotaro ID |
359475 |
Dimensions B (mm) |
61 |
Shape |
Pillow unit |
Dimensions H (mm) |
75 |
Dimensions A (mm) |
75 |
Cover |
Without cover |
Shank Diameter (Φmm) |
50 |
Basic Static Load Rating (kN) |
38.5 |
Basic Dynamic Load Rating (kN) |
62 |
Grease Nipple |
With silicone grease (for heat and cold resistance) |
Load Rank |
For heavy loads |
Shaft Hole Type |
Cylindrical hole type |
Dimension N1 (mm) |
35 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
275 |
Dimension L1 |
75 mm |
Dimension H1 |
27 mm |
Dimension S |
22 mm |
Dimension n (mm) |
20 |
Dimension J (mm) |
212 |
Dimension H2 |
143 mm |
