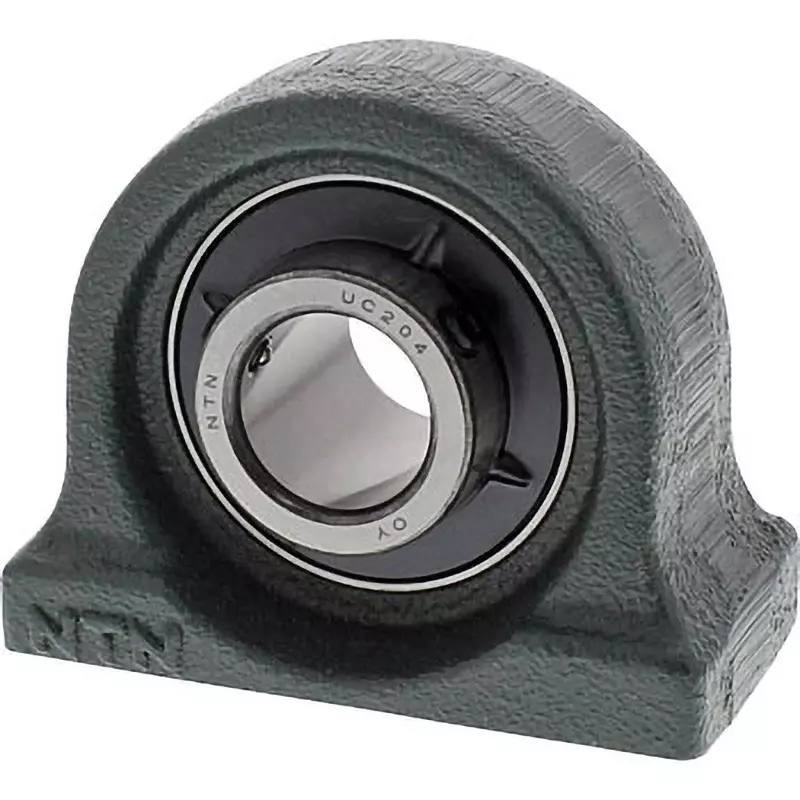

| Type of Product | Bearing Unit Narrow Pillow Type Oil-Free Type |
| Model No | UCUP208 |
| Monotaro ID | 364165 |
| Dimensions B (mm) | 49.2 |
Type of Product |
Bearing Unit Narrow Pillow Type Oil-Free Type |
Model No |
UCUP208 |
Monotaro ID |
364165 |
Dimensions B (mm) |
49.2 |
Shape |
Pillow unit |
Dimensions H (mm) |
49.2 |
Dimensions A (mm) |
54 |
Cover |
Without cover |
Shank Diameter (Φmm) |
40 |
Basic Static Load Rating (kN) |
17.8 |
Basic Dynamic Load Rating (kN) |
29.1 |
Grease Nipple |
No grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |

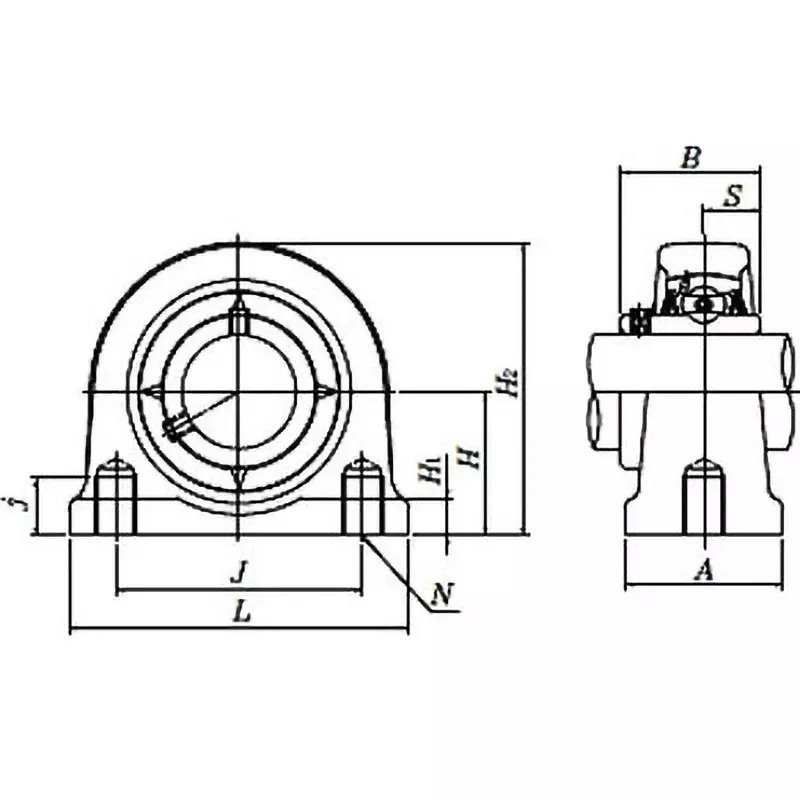

Dimension L (mm) |
116 |
Dimension H1 |
13 mm |
Dimension S |
19 mm |
Dimension n (mm) |
M14×2 |
Dimension J (mm) |
84 |
Dimension H2 |
100 mm |
Dimension (mm) |
20 |
