Ships within 25 days
View
View
View
View
| Type of Product | Plummer Block Split Type SN5 Standard Type |
| Model No | SN513L5 |
| Monotaro ID | 41103134 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SN5 Standard Type |
Model No |
SN513L5 |
Monotaro ID |
41103134 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Tapered bore bearing application type |

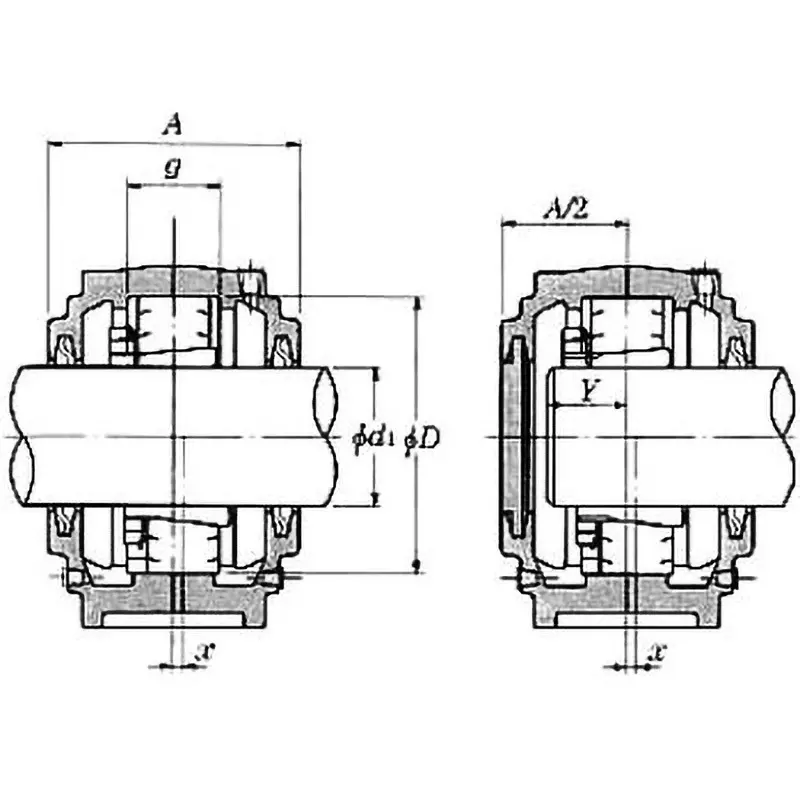

Dimensions D (mm) |
120 |
Mass (Kg) |
5.6 Kg |
Dimensions g (mm) |
43 |
Shaft diameter d1 (Φmm) |
60 |
Dimensions H (mm) |
80 |
Dimensions A (mm) |
110 |
Dimension N1 (mm) |
23 |
Number |
(Inner diameter of the receiving shaft) 13 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |

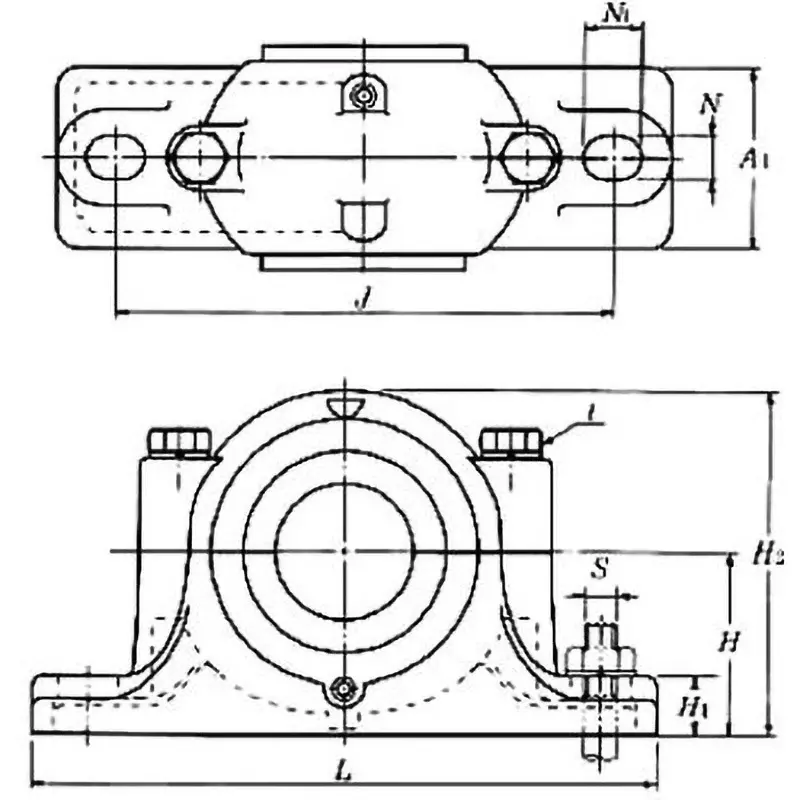

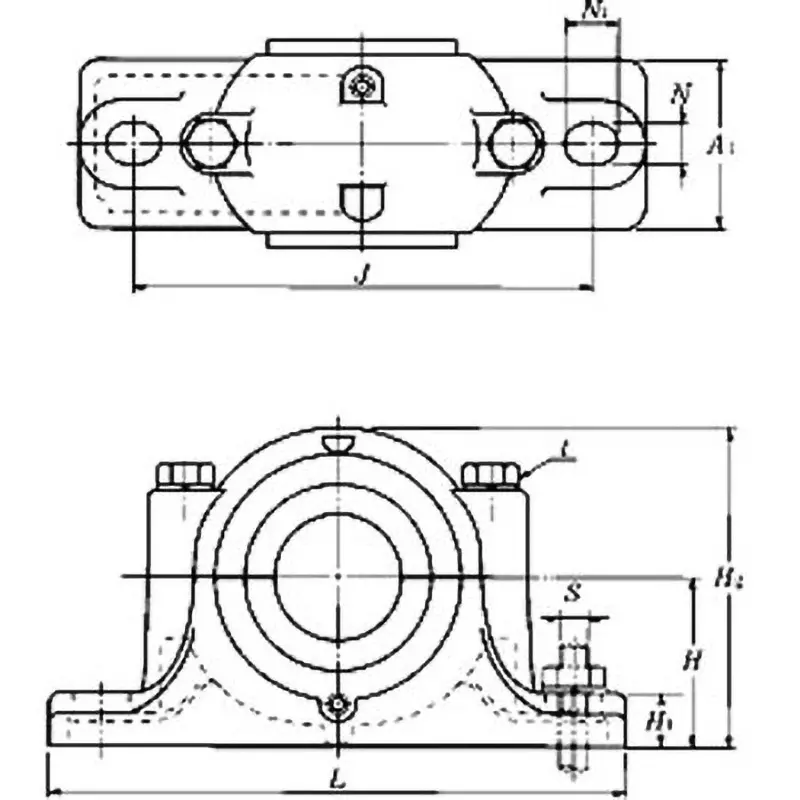

Dimension L (mm) |
275 |
Dimension T |
M12 |
Dimension H1 |
30 mm |
Dimension S |
M16 |
Nominal No. |
SC513, (Rubber seal) ZF13 |
Dimension n (mm) |
18 |
Dimension J (mm) |
230 |
Dimension H2 |
150 mm |
Dimension A1 |
80 mm |
