Ships within 25 days
View
View
View
View

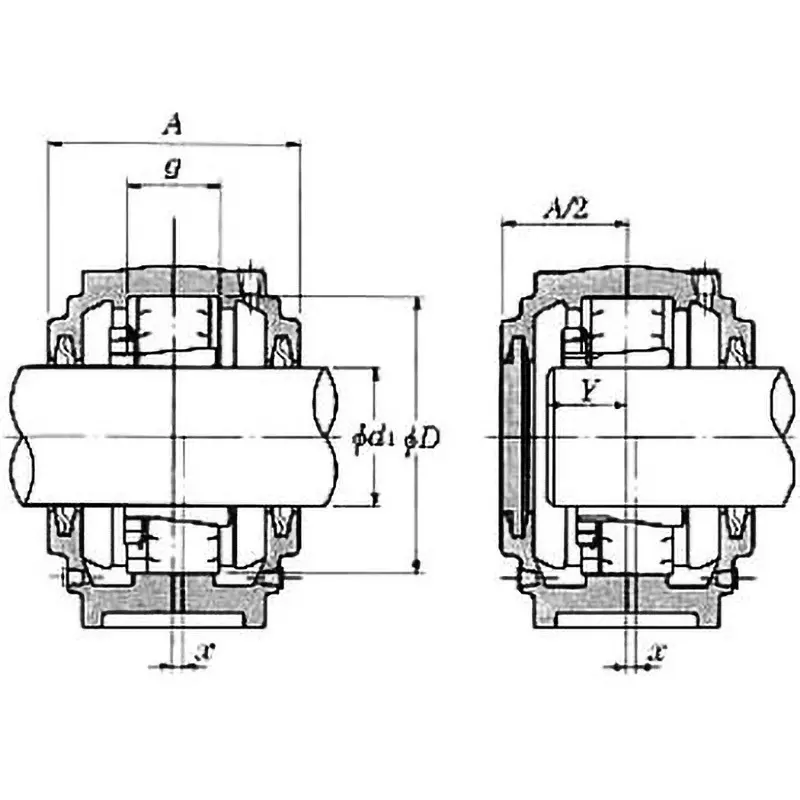

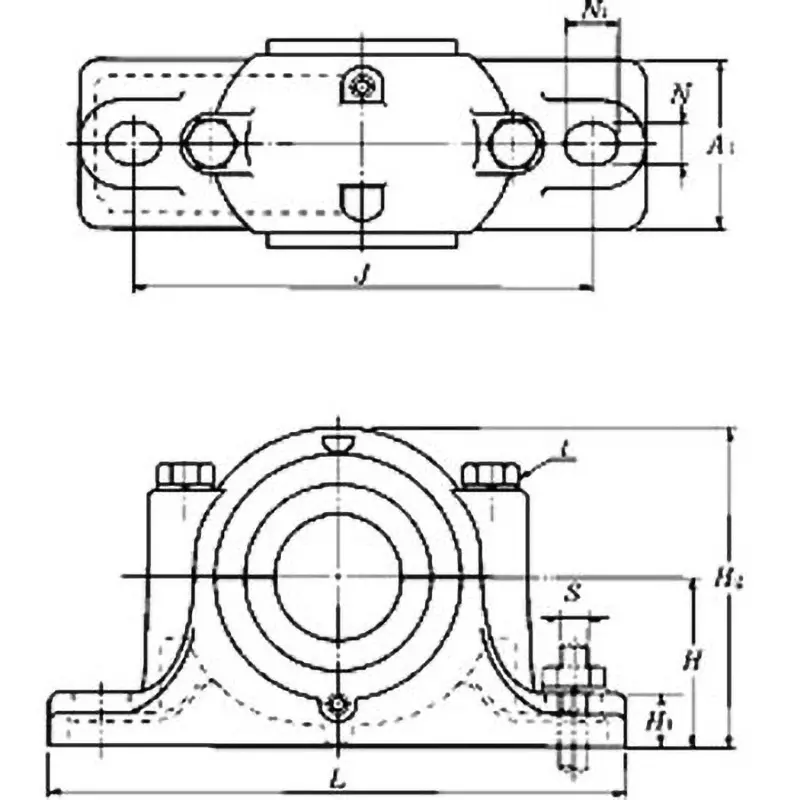

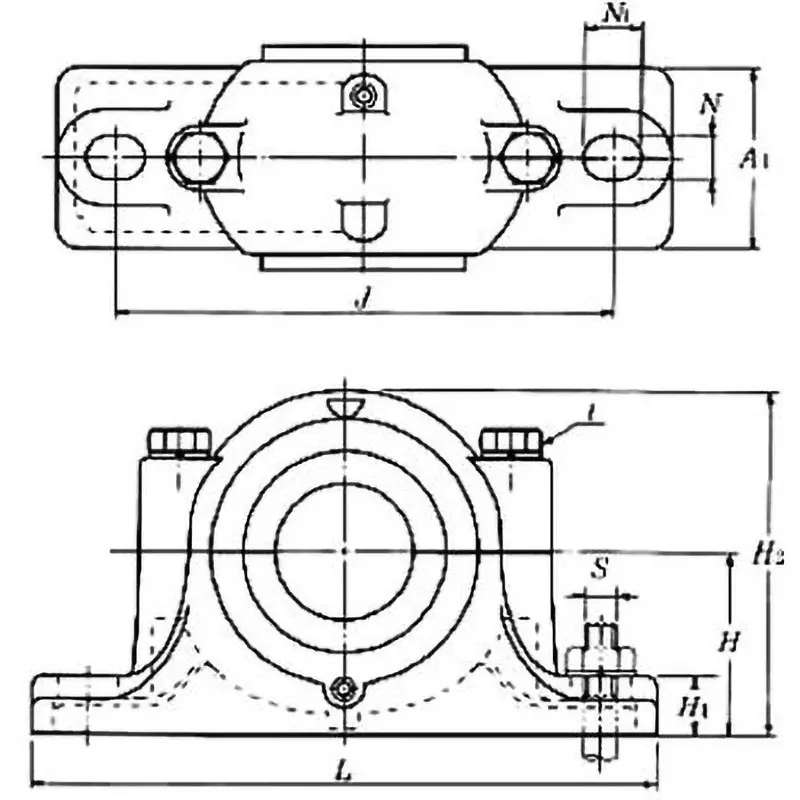

| Type of Product | Plummer Block Split Type SN5 Standard Type |
| Model No | SN519L5 |
| Monotaro ID | 41103387 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SN5 Standard Type |
Model No |
SN519L5 |
Monotaro ID |
41103387 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Tapered bore bearing application type |
Dimensions D (mm) |
170 |
Mass (Kg) |
14 Kg |
Dimensions g (mm) |
53 |
Shaft diameter d1 (Φmm) |
85 |
Dimensions H (mm) |
112 |
Dimensions A (mm) |
140 |
Dimension N1 (mm) |
27 |
Number |
(Inner bore number of the receiving shaft) 19 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
345 |
Dimension T |
M16 |
Dimension H1 |
35 mm |
Dimension S |
M20 |
Nominal No. |
SC519, (Rubber seal) ZF19 |
Dimension n (mm) |
22 |
Dimension J (mm) |
290 |
Dimension H2 |
210 mm |
Dimension A1 |
100 mm |
