| Type of Product | Plummer Block Split Type SN6 Standard Type |
| Model No | S620L1 |
| Monotaro ID | 41104132 |
| Lubrication | Standard grease nipple and drain plug are attached |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Plummer Block Split Type SN6 Standard Type |
Model No |
S620L1 |
Monotaro ID |
41104132 |
Lubrication |
Standard grease nipple and drain plug are attached |
Type |
Tapered bore bearing application type |

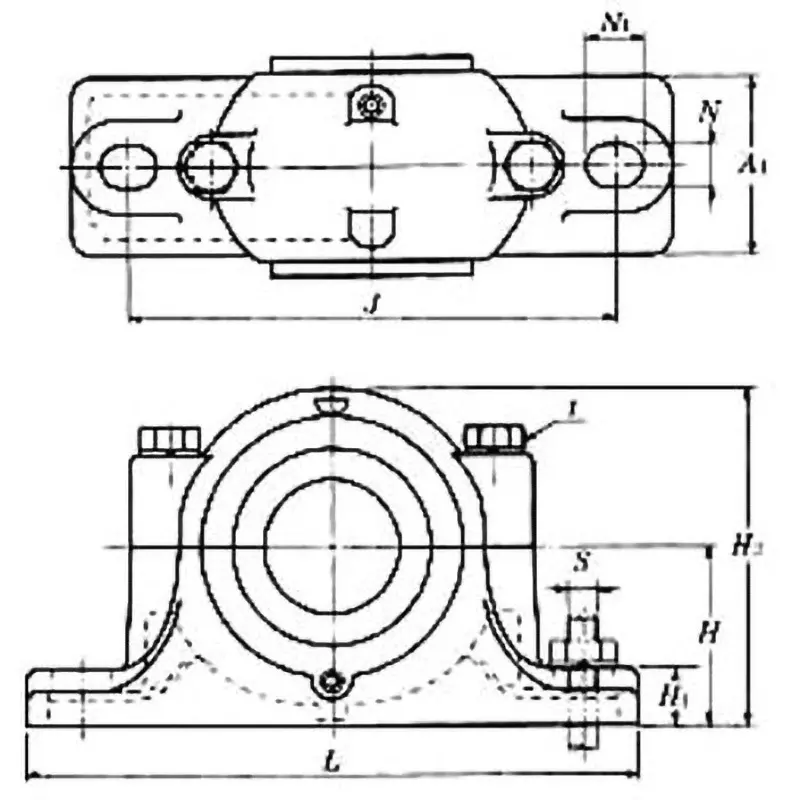

Dimensions D (mm) |
215 |
Mass (Kg) |
29 Kg |
Dimensions g (mm) |
83 |
Shaft diameter d1 (Φmm) |
90 |
Dimensions H (mm) |
140 |
Dimensions A (mm) |
175 |
Dimension N1 (mm) |
26 |
Number |
(Inner bore number of shaft used) 20 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
420 |
Dimension T |
M20 |
Dimension H1 |
38 mm |
Dimension S |
M24 |
Nominal No. |
SC620, (Rubber seal) ZF20 |
Dimension n (mm) |
26 |
Dimension J (mm) |
350 |
Dimension H2 |
280 mm |
Dimension A1 |
120 mm |
