Ships within 25 days
View
View
View
View
| Type of Product | Bearing Unit Pillow Type Oil-Free Type |
| Model No | C-UCP204 |
| Monotaro ID | 353376 |
| Mass (Kg) | 1 Kg (Reference) |
Type of Product |
Bearing Unit Pillow Type Oil-Free Type |
Model No |
C-UCP204 |
Monotaro ID |
353376 |
Mass (Kg) |
1 Kg (Reference) |

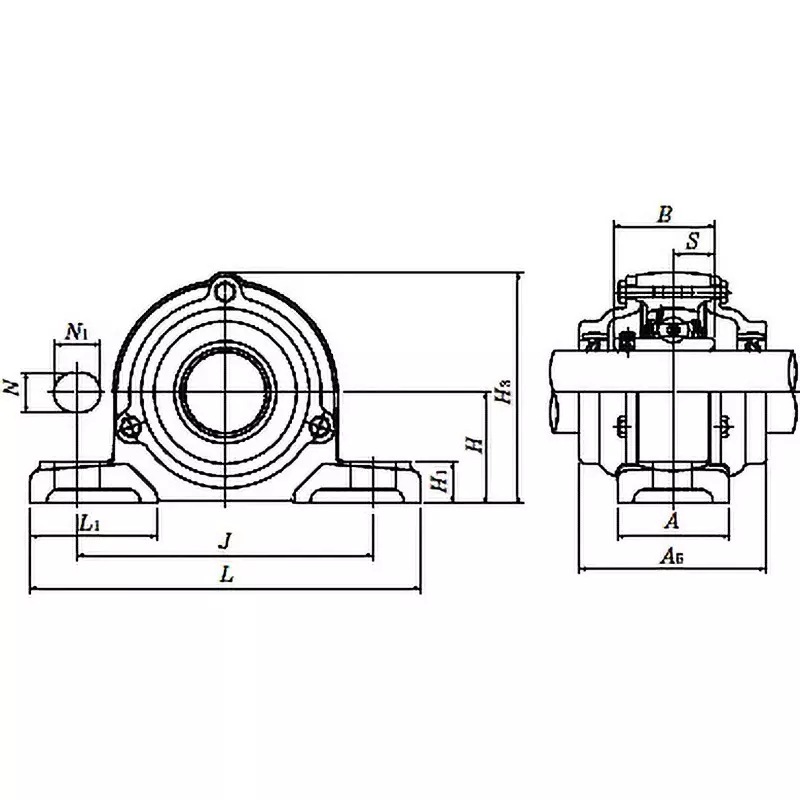

Dimensions B (mm) |
31 |
Shape |
Pillow unit |
Dimensions H (mm) |
33.299999999999997 |
Dimensions A (mm) |
38 |
Cover |
Cast iron cover with rubber seals on both sides |
Shank Diameter (Φmm) |
20 |
Basic Static Load Rating (kN) |
6.65 |
Basic Dynamic Load Rating (kN) |
12.8 |
Grease Nipple |
No grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type |
Nominal Size of Mounting Bolt |
M10 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
127 |
Dimension T |
2 mm |
Dimension L1 |
42 mm |
Dimension H1 |
14 mm |
Dimension S |
12.7 mm |
Dimension n (mm) |
13 |
Dimension J (mm) |
95 |
