| Type of Product | Bearing Unit Pillow Type Oil-Free Type |
| Model No | C-UCP207 |
| Monotaro ID | 353464 |
| Mass (Kg) | 2.3 Kg (Reference) |
Type of Product |
Bearing Unit Pillow Type Oil-Free Type |
Model No |
C-UCP207 |
Monotaro ID |
353464 |
Mass (Kg) |
2.3 Kg (Reference) |

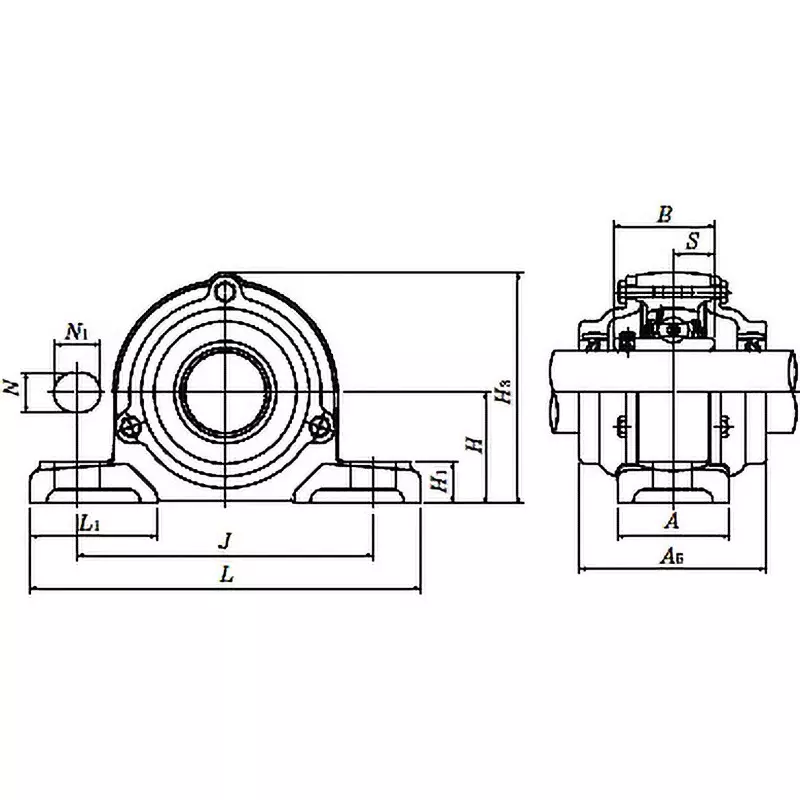

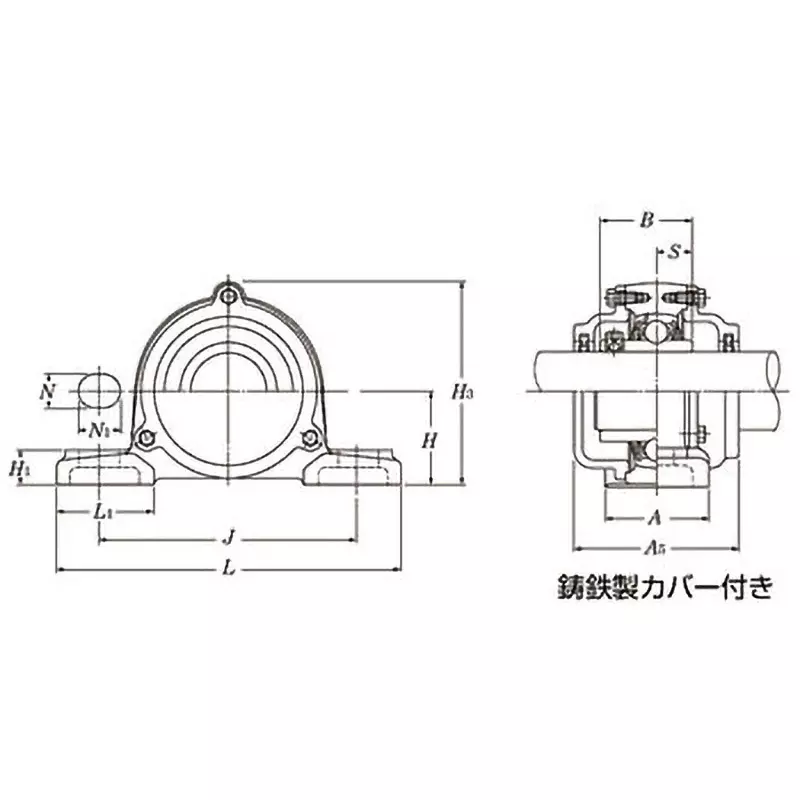

Dimensions B (mm) |
42.9 |
Shape |
Pillow unit |
Dimensions H (mm) |
47.6 |
Dimensions A (mm) |
48 |
Cover |
Cast iron cover with rubber seals on both sides |
Shank Diameter (Φmm) |
35 |
Basic Static Load Rating (kN) |
15.3 |
Basic Dynamic Load Rating (kN) |
25.7 |
Grease Nipple |
No grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type |
Nominal Size of Mounting Bolt |
M14 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
167 |
Dimension T |
3 mm |
Dimension L1 |
54 mm |
Dimension H1 |
18 mm |
Dimension S |
17.5 mm |
Dimension n (mm) |
17 |
Dimension J (mm) |
127 |
