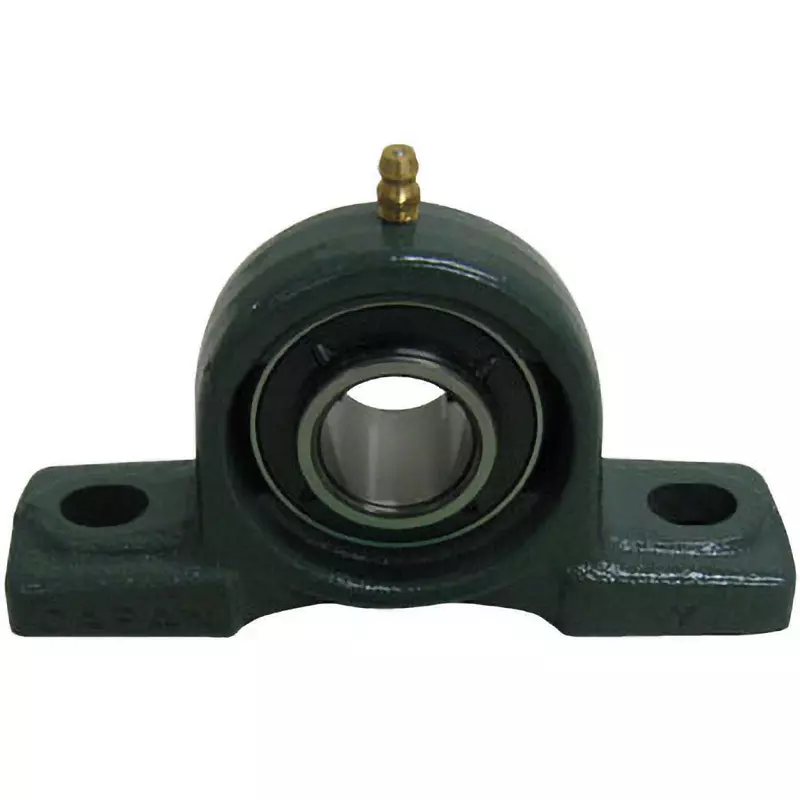

| Type of Product | Bearing Unit Cast Iron Pillow Unit for Oil-Resistant Heat Resistance |
| Model No | UCP315HT2D1 |
| Monotaro ID | 359624 |

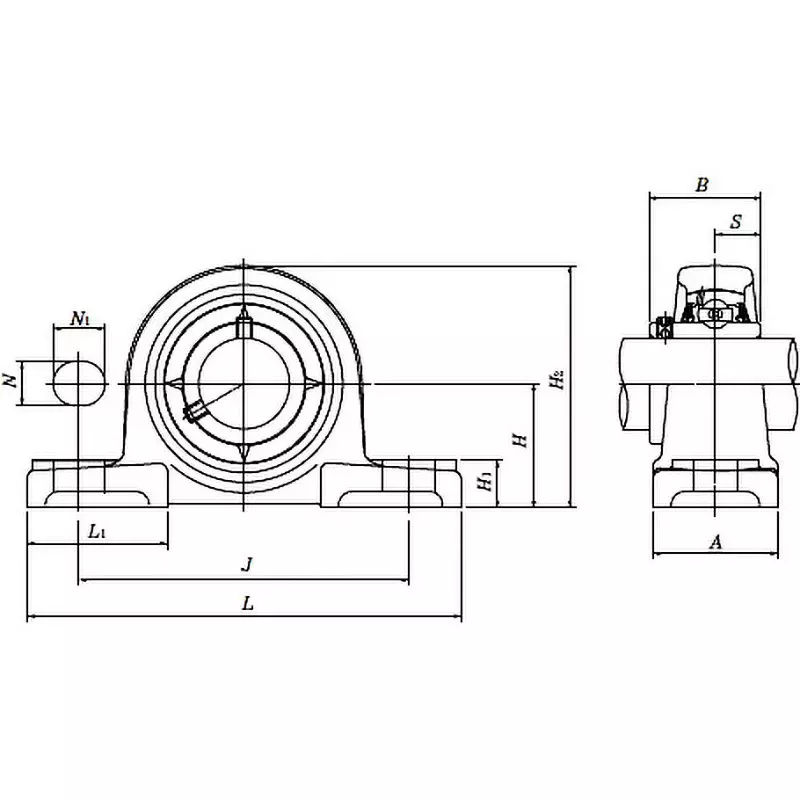

| Dimensions B (mm) | 82 |
Type of Product |
Bearing Unit Cast Iron Pillow Unit for Oil-Resistant Heat Resistance |
Model No |
UCP315HT2D1 |
Monotaro ID |
359624 |
Dimensions B (mm) |
82 |
Shape |
Pillow unit |
Dimensions H (mm) |
100 |
Dimensions A (mm) |
100 |
Cover |
Without cover |
Shank Diameter (Φmm) |
75 |
Basic Static Load Rating (kN) |
77 |
Basic Dynamic Load Rating (kN) |
113 |
Grease Nipple |
With silicone grease (for heat and cold resistance) |
Load Rank |
For heavy loads |
Shaft Hole Type |
Cylindrical hole type |
Dimension N1 (mm) |
40 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
380 |
Dimension L1 |
110 mm |
Dimension H1 |
35 mm |
Dimension S |
32 mm |
Dimension n (mm) |
27 |
Dimension J (mm) |
290 |
Dimension H2 |
198 mm |
