Ships within 19 days
View
View
View
View

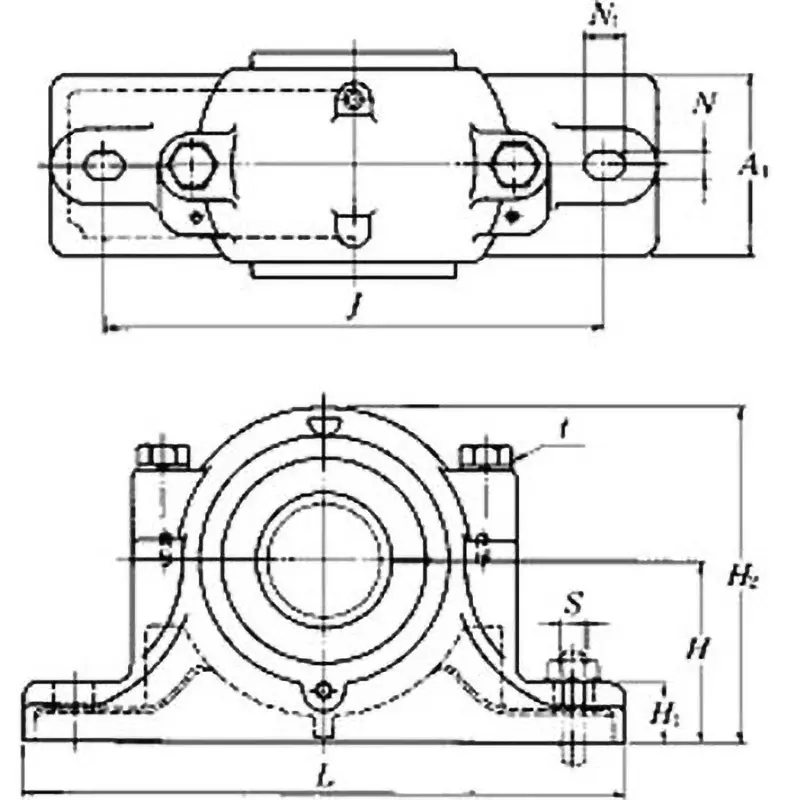

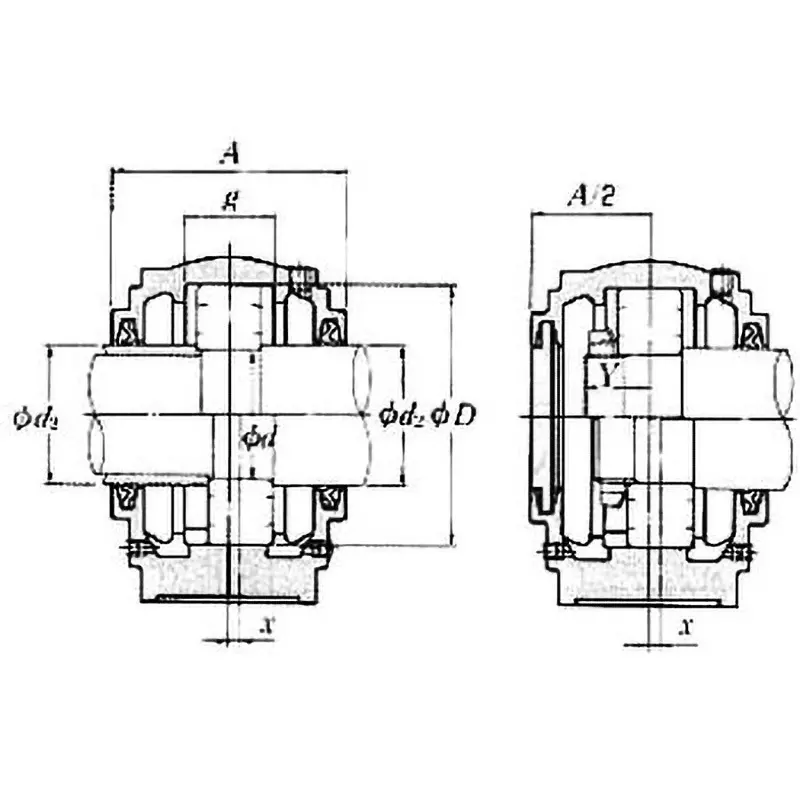

| Type of Product | Plummer Block Split Type SN2 Large Bore Type |
| Model No | SN214L5 |
| Monotaro ID | 41104884 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SN2 Large Bore Type |
Model No |
SN214L5 |
Monotaro ID |
41104884 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Cylindrical bore bearing applicable type |
Dimensions D (mm) |
125 |
Mass (Kg) |
5.7 Kg |
Dimensions g (mm) |
44 |
Shaft diameter d1 (Φmm) |
70 |
Dimensions H (mm) |
80 |
Dimensions A (mm) |
115 |
Dimension N1 (mm) |
23 |
Number |
(Inner diameter number of receiving shaft) 14 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
275 |
Dimension T |
M12 |
Dimension H1 |
30 mm |
Dimension S |
M16 |
Nominal No. |
SN214, (rubber seal) ZF18 |
Dimension n (mm) |
18 |
Dimension J (mm) |
230 |
Dimension H2 |
155 mm |
Dimension A1 |
80 mm |
Shaft Diameter D2 (Φmm) |
80 |
