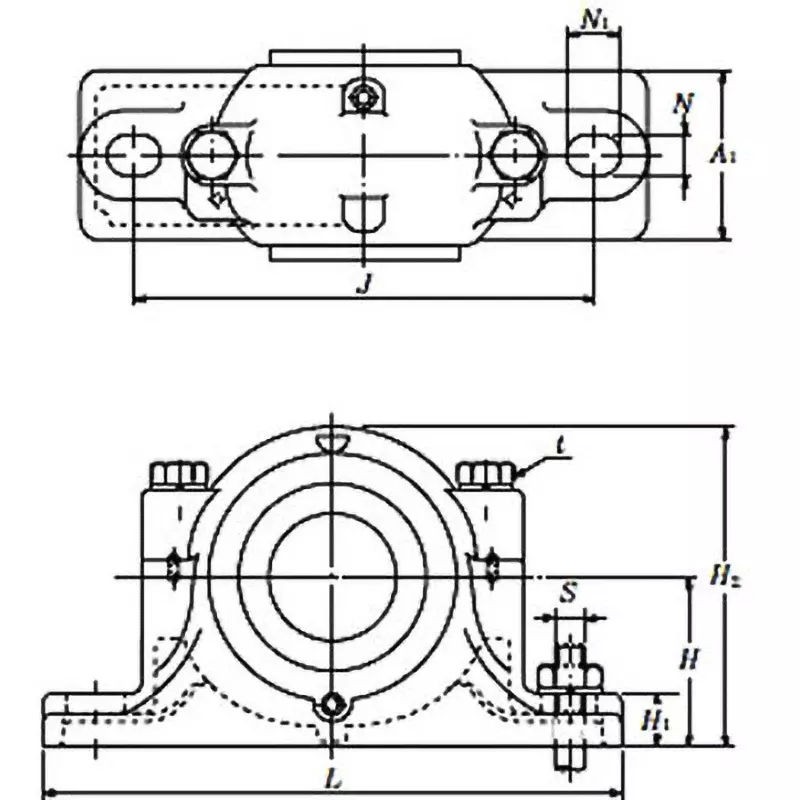

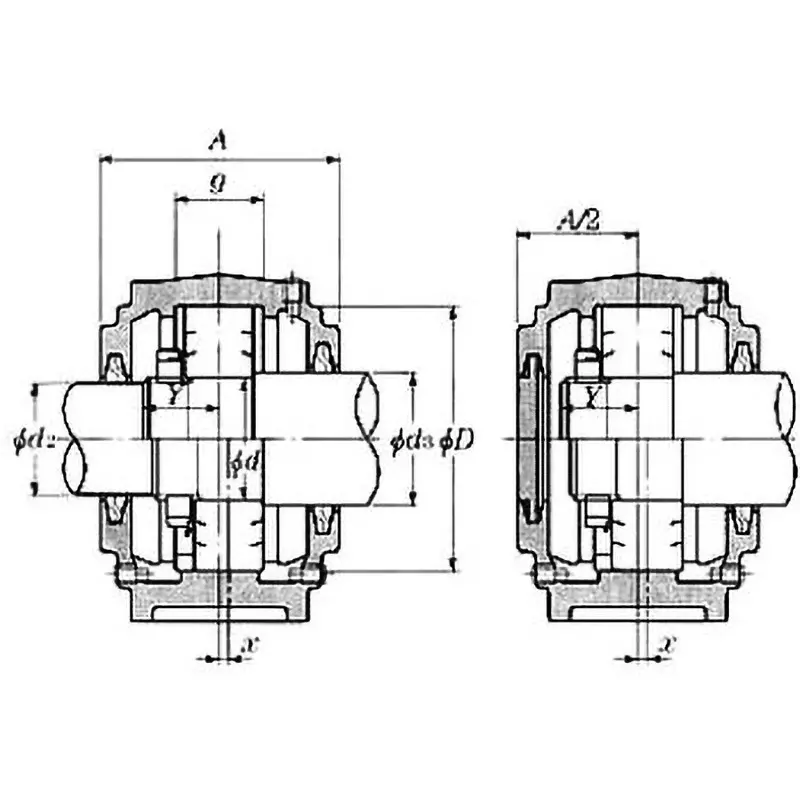

| Type of Product | Plummer Block Split Type SNZ2 Different Diameter |
| Model No | SNZ217L5 |
| Monotaro ID | 41105977 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SNZ2 Different Diameter |
Model No |
SNZ217L5 |
Monotaro ID |
41105977 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Cylindrical bore bearing applicable type |
Dimensions D (mm) |
150 |
Mass (Kg) |
14 Kg |
Dimensions g (mm) |
46 |
Shaft diameter d1 (Φmm) |
85 |
Dimensions H (mm) |
95 |
Dimensions A (mm) |
125 |
Dimension N1 (mm) |
27 |
Number |
(Inner bore number of shaft used) 17 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
320 |
Dimension T |
M16 |
Dimension H1 |
32 mm |
Shaft Outer Diameter |
95 mm |
Dimension S |
M20 |
Nominal No. |
SNZ217, (Rubber seal) d2 side / ZF17: d3 side / ZF21 |
Dimension n (mm) |
22 |
Dimension J (mm) |
290 |
Dimension H2 |
185 mm |
Dimension A1 |
90 mm |
