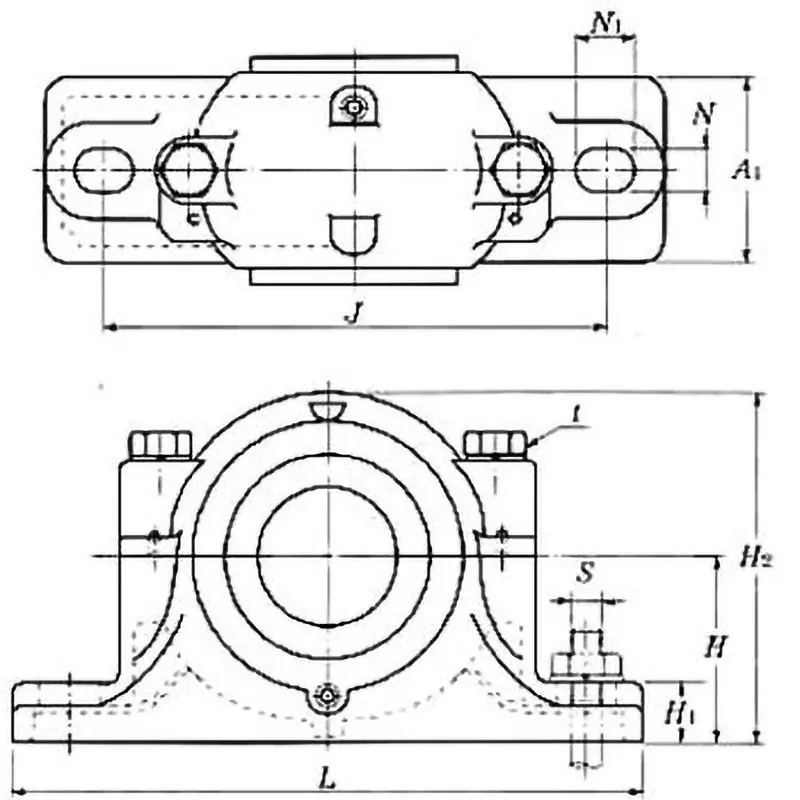

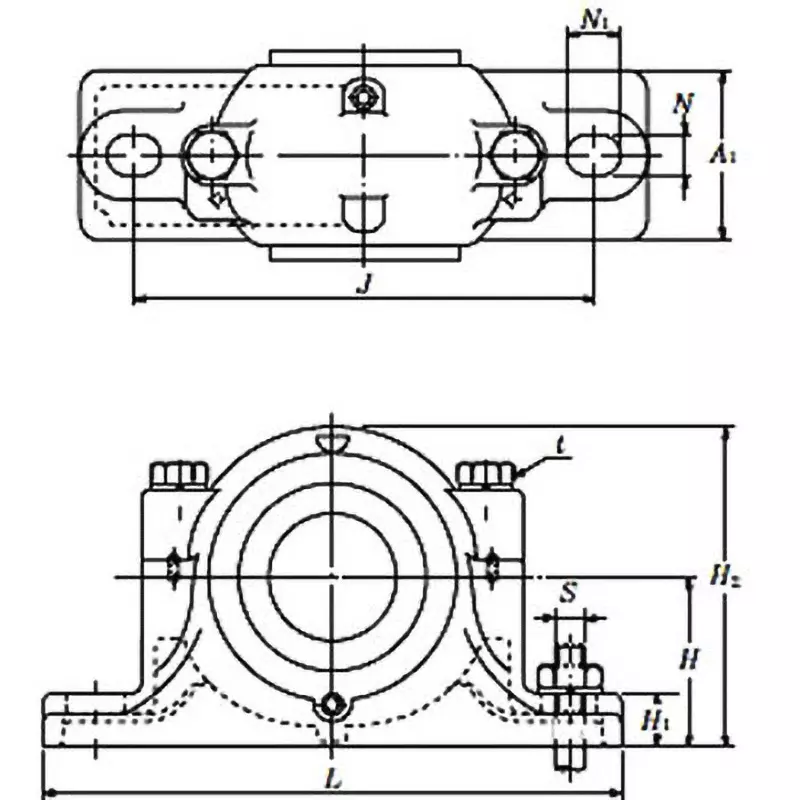

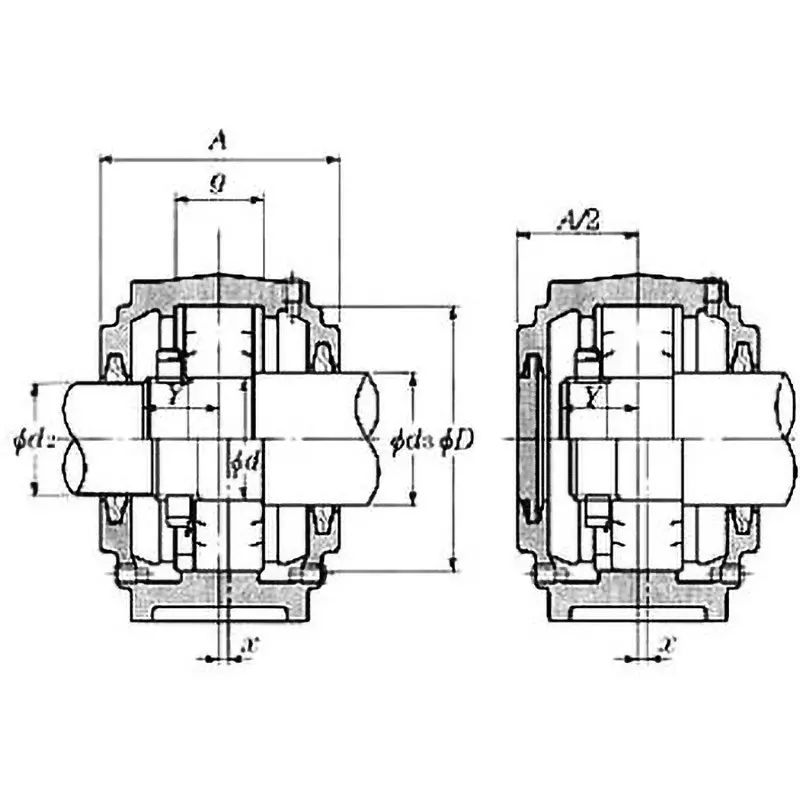

| Type of Product | Plummer Block Split Type SNZ2 Different Diameter |
| Model No | SNZ224L5 |
| Monotaro ID | 41106108 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SNZ2 Different Diameter |
Model No |
SNZ224L5 |
Monotaro ID |
41106108 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Cylindrical bore bearing applicable type |
Dimensions D (mm) |
215 |
Mass (Kg) |
33 Kg |
Dimensions g (mm) |
86 |
Shaft diameter d1 (Φmm) |
120 |
Dimensions H (mm) |
140 |
Dimensions A (mm) |
185 |
Dimension N1 (mm) |
32 |
Number |
(Inner diameter number of the receiving shaft) 24 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
410 |
Dimension T |
M20 |
Dimension H1 |
45 mm |
Shaft Outer Diameter |
135 mm |
Dimension S |
M24 |
Nominal No. |
SNZ224, (Rubber seal) d2 side / ZF24: d3 side / ZF30 |
Dimension n (mm) |
26 |
Dimension J (mm) |
350 |
Dimension H2 |
270 mm |
Dimension A1 |
120 mm |
