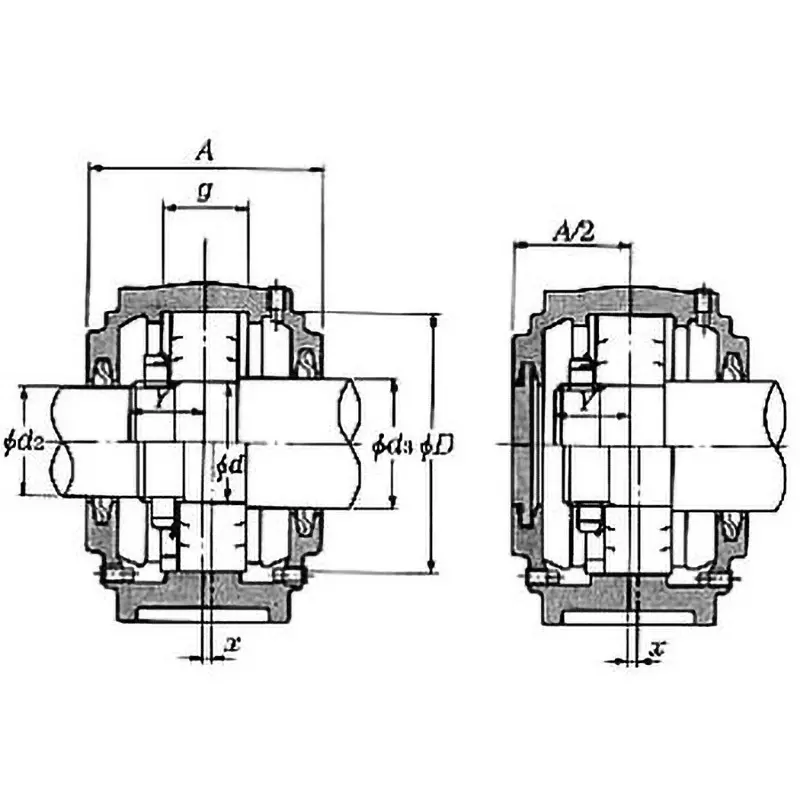

| Type of Product | Plummer Block Split Type SNZ3 Different Diameter |
| Model No | SNZ311L5 |
| Monotaro ID | 41106476 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SNZ3 Different Diameter |
Model No |
SNZ311L5 |
Monotaro ID |
41106476 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Cylindrical bore bearing applicable type |

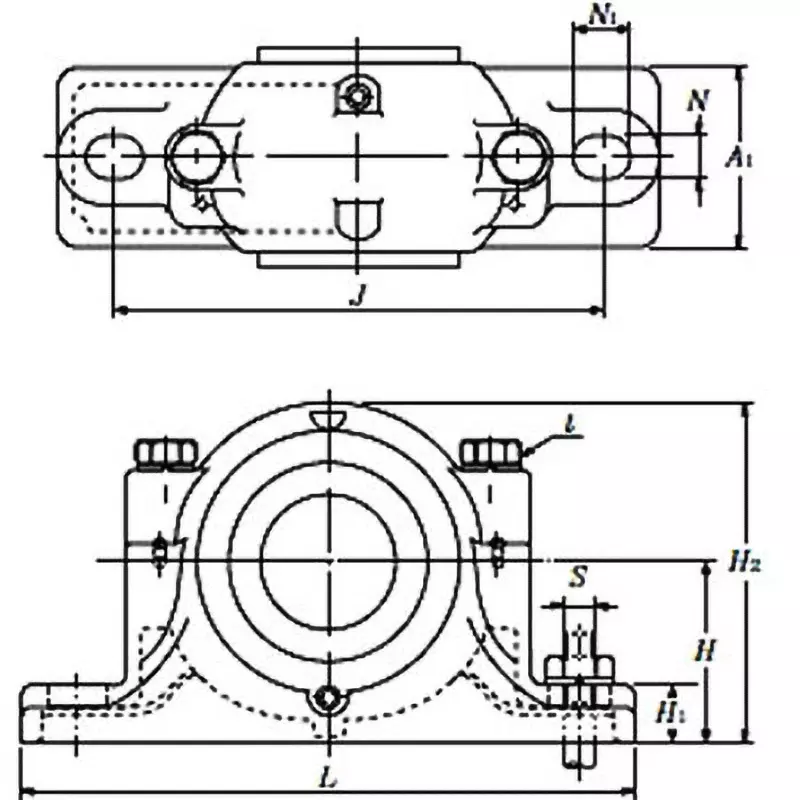

Dimensions D (mm) |
120 |
Mass (Kg) |
6.6 Kg |
Dimensions g (mm) |
53 |
Shaft diameter d1 (Φmm) |
55 |
Dimensions H (mm) |
80 |
Dimensions A (mm) |
120 |
Dimension N1 (mm) |
23 |
Number |
(Inner diameter number of the receiving shaft) 11 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
275 |
Dimension T |
M12 |
Dimension H1 |
30 mm |
Shaft Outer Diameter |
65 mm |
Dimension S |
M16 |
Nominal No. |
SNZ311, (Rubber seal) d2 side / ZF11: d3 side / ZF15 |
Dimension n (mm) |
18 |
Dimension J (mm) |
230 |
Dimension H2 |
150 mm |
Dimension A1 |
80 mm |
