| Type of Product | Plummer Block Split Type Sd5 Standard Type |
| Model No | SD538GL5 |
| Monotaro ID | 41106948 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type Sd5 Standard Type |
Model No |
SD538GL5 |
Monotaro ID |
41106948 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Tapered bore bearing application type |

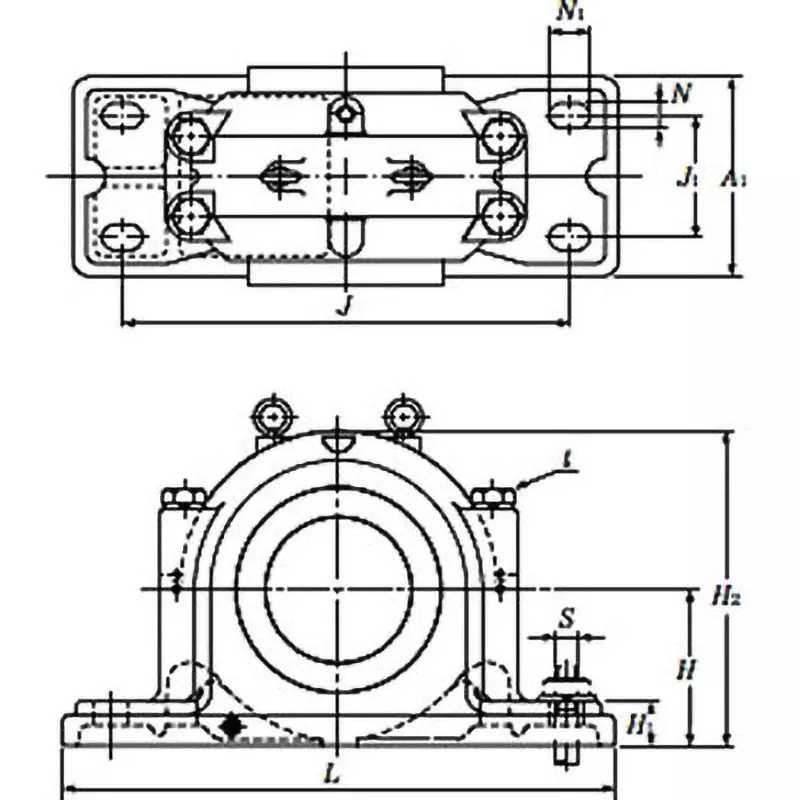

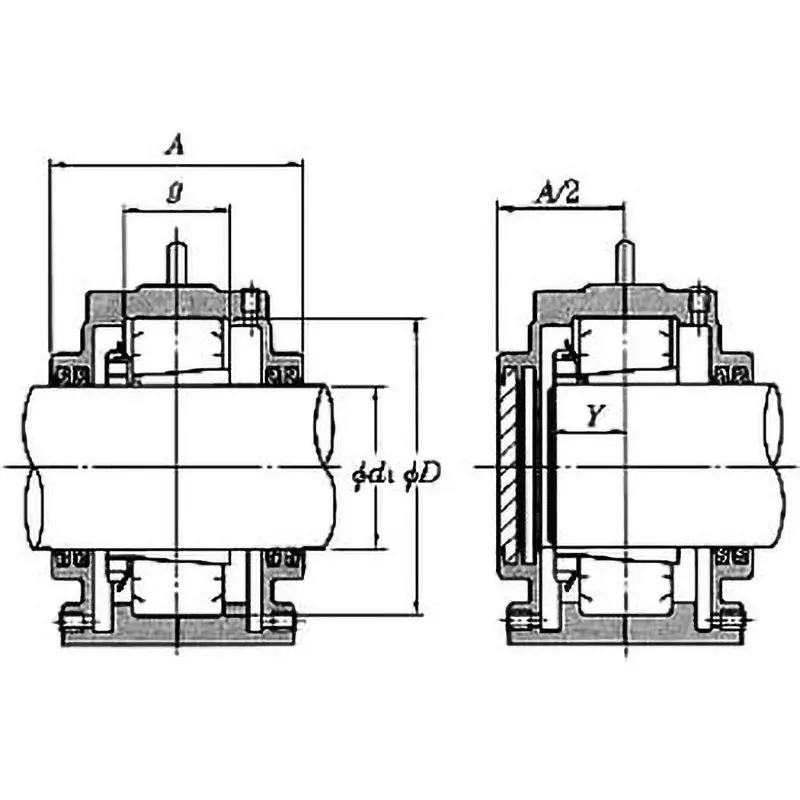

Dimensions D (mm) |
340 |
Mass (Kg) |
130 Kg |
Dimensions g (mm) |
102 |
Shaft diameter d1 (Φmm) |
170 |
Dimensions H (mm) |
200 |
Dimensions A (mm) |
290 |
Dimension N1 (mm) |
55 |
Number |
(Inner diameter number of the receiving shaft) 38 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
700 |
Dimension T |
M31 |
Dimension H1 |
65 mm |
Dimension S |
M39 |
Nominal No. |
SD538G, (Rubber seal) ZF38 |
Dimension n (mm) |
35 |
Dimension J (mm) |
570 |
Dimension H2 |
400 mm |
Dimension A1 |
260 mm |
Dimension J1 (mm) |
160 |
