Ships within 25 days
View
View
View
View
| Type of Product | Spline Shaft |
| Model No | SS 30+1500L |
| Monotaro ID | 7270532 |
| Suitable For | Nut: DPM3040, DPM3056, DP30 |
Type of Product |
Spline Shaft |
Model No |
SS 30+1500L |
Monotaro ID |
7270532 |
Suitable For |
Nut: DPM3040, DPM3056, DP30 |
Mass (Kg) |
8.25 |
Shaft Length (mm) |
1500 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
RoHS Directive |
Correspondence |
Shaft Outer Diameter |
Φ31.8 mm |
Deviation |
Single maximum: ± 0.025 mm, cumulative maximum: ± 0.2 / 300 mm |

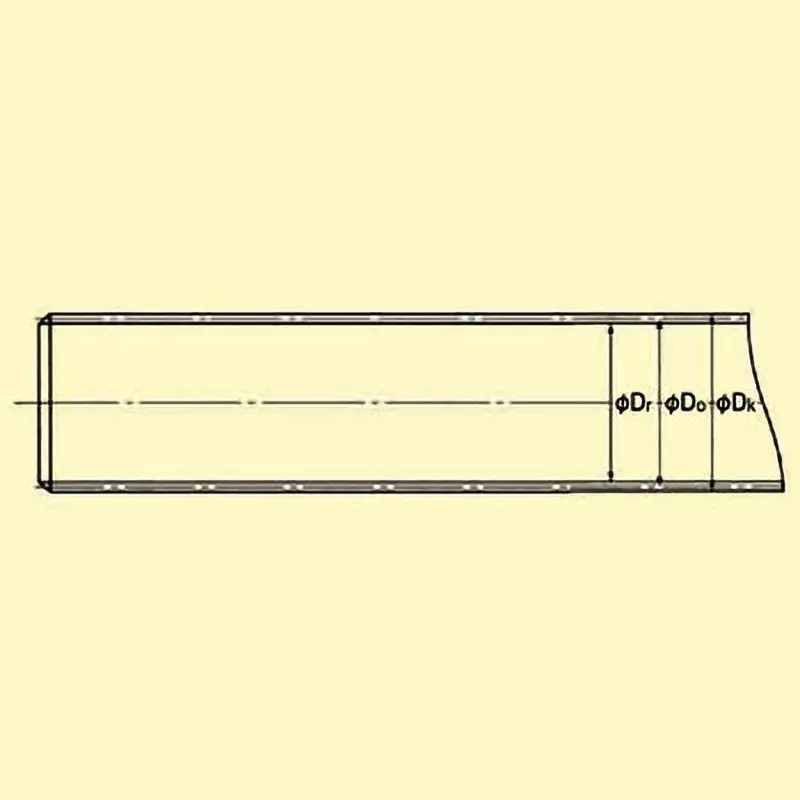

Dimension Dr (Φmm) |
28.2 |
Dimension D0 (Φmm) |
30 |
No. of Teeth |
20 |
