| Type of Product | Screw Nut |
| Model No | DCM 40 |
| Material | High strength zinc alloy |
| Monotaro ID | 7270837 |
Type of Product |
Screw Nut |
Model No |
DCM 40 |
Material |
High strength zinc alloy |
Monotaro ID |
7270837 |
Mass (g) |
980 |

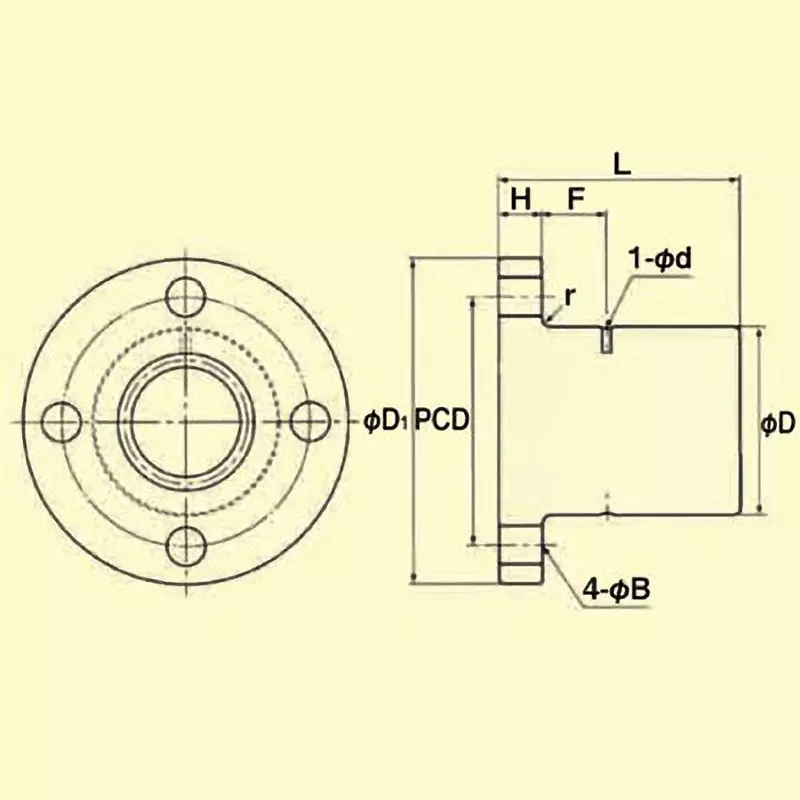

Outer Diameter D (Φmm) |
58 |
Suitable For |
Axis: CS40 |
Type |
30° Trapezoidal Flange Type |
Outer Diameter (Φmm) |
98 |
Dimension D (Φmm) |
3 |
Dimension F (Φmm) |
19 |
Length L (mm) |
70 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
PCD (mm) |
76 |
Dimension B (Φmm) |
11 |
RoHS Directive |
Correspondence |
Outer Diameter Tolerance (mm) |
0 to -0.074 |
Dynamic Allowable Thrust (N) |
33800 |
Dimension R |
2.5 mm |
Flange Static Permissible Load (N) |
106000 |
Flange Thickness (mm) |
12 |
Shaft Type |
CS40 |
