Ships within 25 days
View
View
View
View
| Type of Product | Ball Screw Support Unit |
| Model No | BK 12 |
| Monotaro ID | 39251274 |
| Type | Fixed Side Square Shape |
Type of Product |
Ball Screw Support Unit |
Model No |
BK 12 |
Monotaro ID |
39251274 |
Type |
Fixed Side Square Shape |
Mass (Kg) |
0.41 |

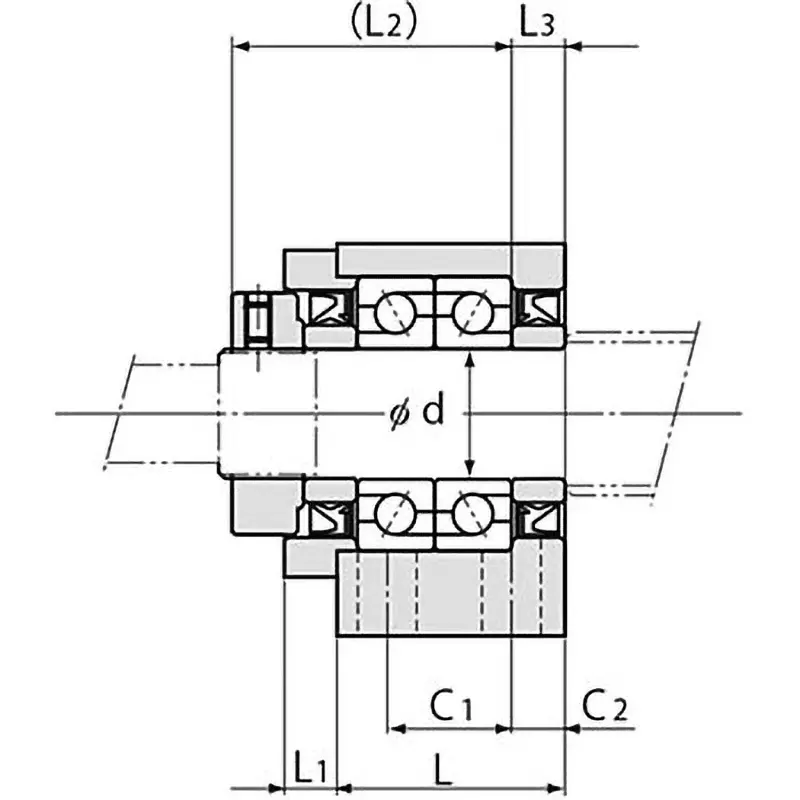

Dimension C1 (mm) |
13 |
Dimension L3 (mm) |
5 |
Dimension d2 (Φmm) |
10.8 |
Dimension B1 (mm) |
35 |
Dimension d1 (Φmm) |
6.6 |
Dimension C2 (mm) |
6 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Dimension H (Φmm) |
43 |
Thread Size M |
M3 |
Dimension B (Φmm) |
60 |
Dimension L (mm) |
25 |
Dimension E (Φmm) |
18 |
Dimension T |
19 mm |
Dimension L1 |
5 mm |
Dimension L2 |
29 mm |
Dimension H1 |
25 mm (±0.02) |
Dimension P |
46 mm |
