| Type of Product | Screw Shaft |
| Model No | CS 25T+500L |
| Material | S35C |
| Monotaro ID | 7271083 |
Type of Product |
Screw Shaft |
Model No |
CS 25T+500L |
Material |
S35C |
Monotaro ID |
7271083 |
Suitable For |
Nut: DC25, DCM25 |
Mass (Kg) |
1.55 |
Shaft Length (mm) |
500 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
RoHS Directive |
Correspondence |
Lead |
5 mm |
Shaft Outer Diameter |
Φ25 mm |
Deviation |
Single maximum: ± 0.025 mm, cumulative maximum: ± 0.2 / 300 mm |

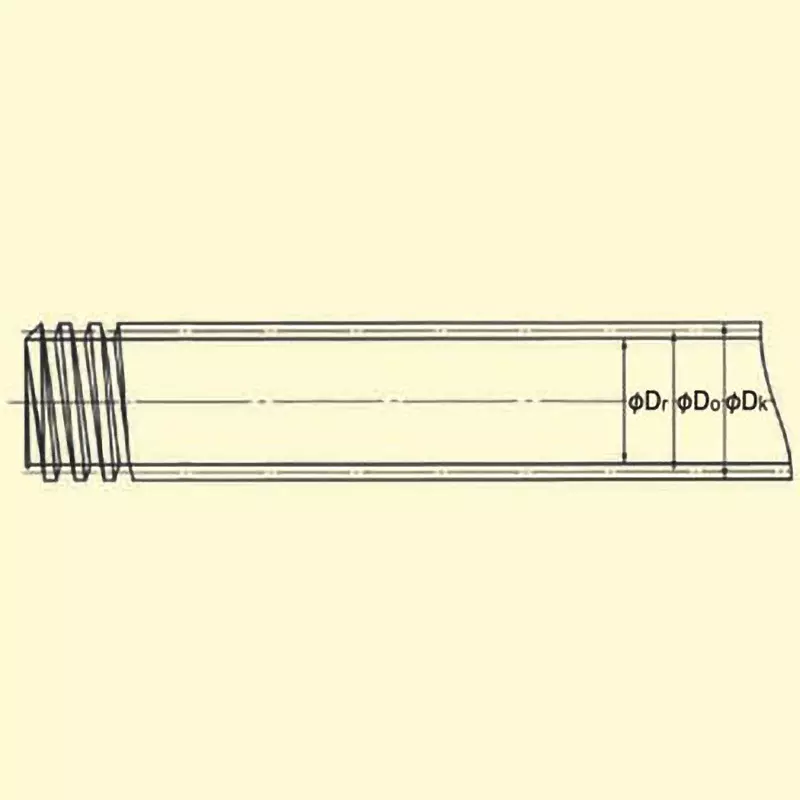

Dimension Dr (Φmm) |
19.5 |
Dimension D0 (Φmm) |
22.5 |
Lead Angle |
4° 03 minutes |
Suitable Nut |
DC25 DCM25 |
