| Type of Product | Spline Nut |
| Model No | DP 17 |
| Material | High strength zinc alloy |
| Monotaro ID | 7270654 |
Type of Product |
Spline Nut |
Model No |
DP 17 |
Material |
High strength zinc alloy |
Monotaro ID |
7270654 |
Mass (g) |
65 |

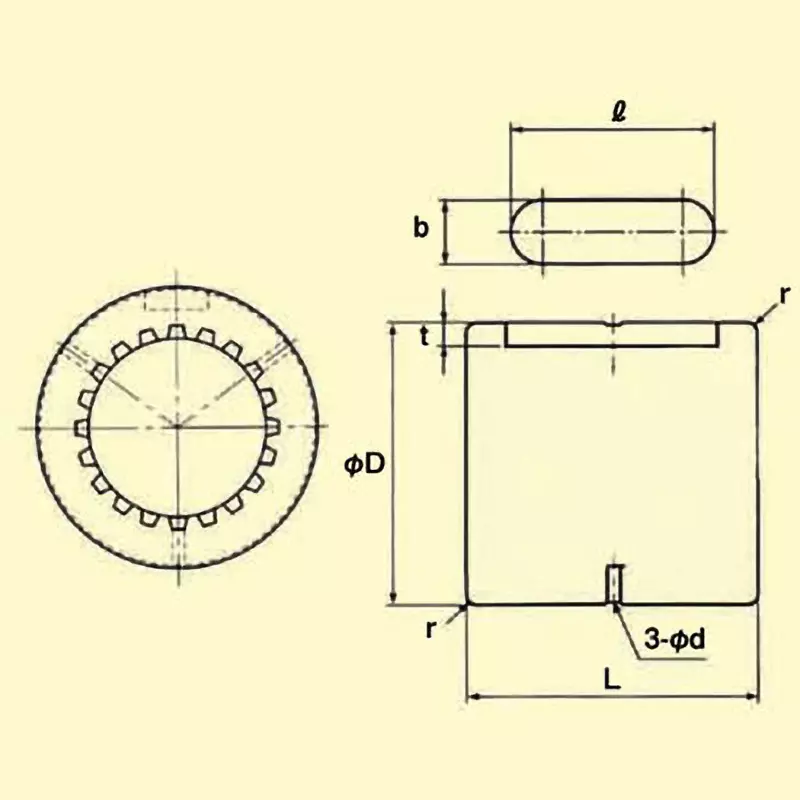

Outer Diameter D (Φmm) |
28 |
Suitable For |
Axis: SS17 |
Type |
Straight Type |
Dimension D (Φmm) |
1.5 |
Length L (mm) |
26(0 to -0.3) |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Dimension B (Φmm) |
5(0 to -0.030(N9)) |
Dimension L (mm) |
18 |
Dimension T |
2.5 mm |
RoHS Directive |
Correspondence |
Outer Diameter Tolerance (mm) |
0 to -0.052(h9) |
Allowable Torque (Nm) |
48 (pm contact pressure 9.8 N / mm <sup>2)</sup> |
Dimension R |
1 mm |
Clearance |
Maximum rotation direction: α ≦ 20 minutes |
