| Type of Product | Spline Nut |
| Model No | DPM 2040 |
| Material | High strength zinc alloy |
| Monotaro ID | 7270313 |
Type of Product |
Spline Nut |
Model No |
DPM 2040 |
Material |
High strength zinc alloy |
Monotaro ID |
7270313 |
Mass (g) |
200 |

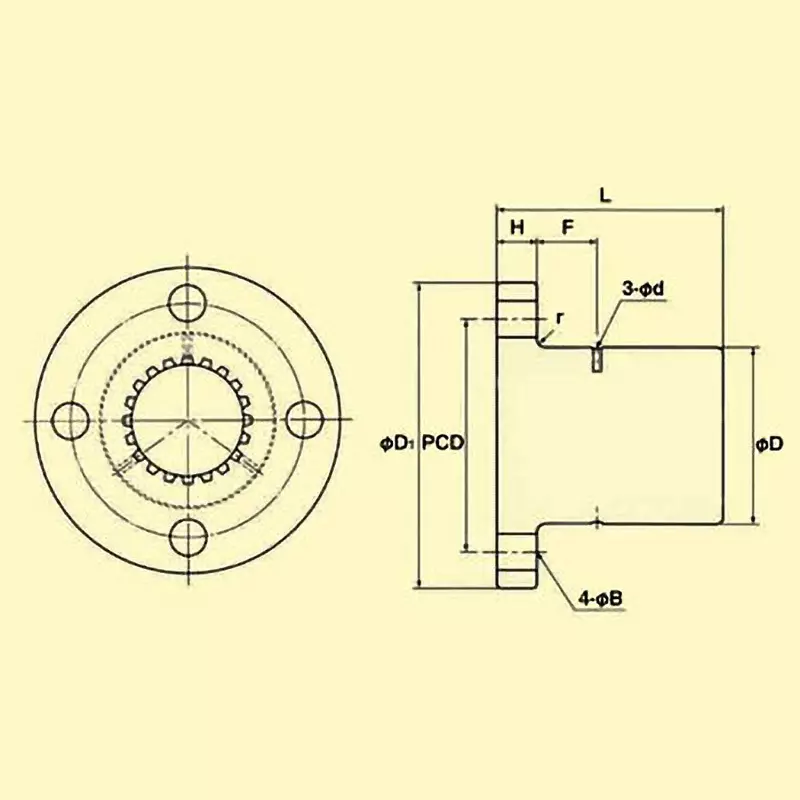

Outer Diameter D (Φmm) |
32 |
Suitable For |
Axis: SS2040 |
Type |
Flange Type |
Outer Diameter (Φmm) |
56 |
Dimension D (Φmm) |
1.5 |
Dimension F (Φmm) |
10.5 |
Length L (mm) |
40 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
PCD (mm) |
42 |
Dimension B (Φmm) |
6.6 |
RoHS Directive |
Correspondence |
Outer Diameter Tolerance (mm) |
0 to -0.062(h9) |
Allowable Torque (Nm) |
100 (at contact pressure 9.8 N / mm <sup>2)</sup> |
Dimension R |
1.5 mm |
Flange Thickness (mm) |
7 |
Clearance |
Maximum rotation direction: α ≦ 20 minutes |
