| Type of Product | Spline Nut |
| Model No | DPM 4555 |
| Material | High strength zinc alloy |
| Monotaro ID | 7270401 |
Type of Product |
Spline Nut |
Model No |
DPM 4555 |
Material |
High strength zinc alloy |
Monotaro ID |
7270401 |
Mass (g) |
980 |

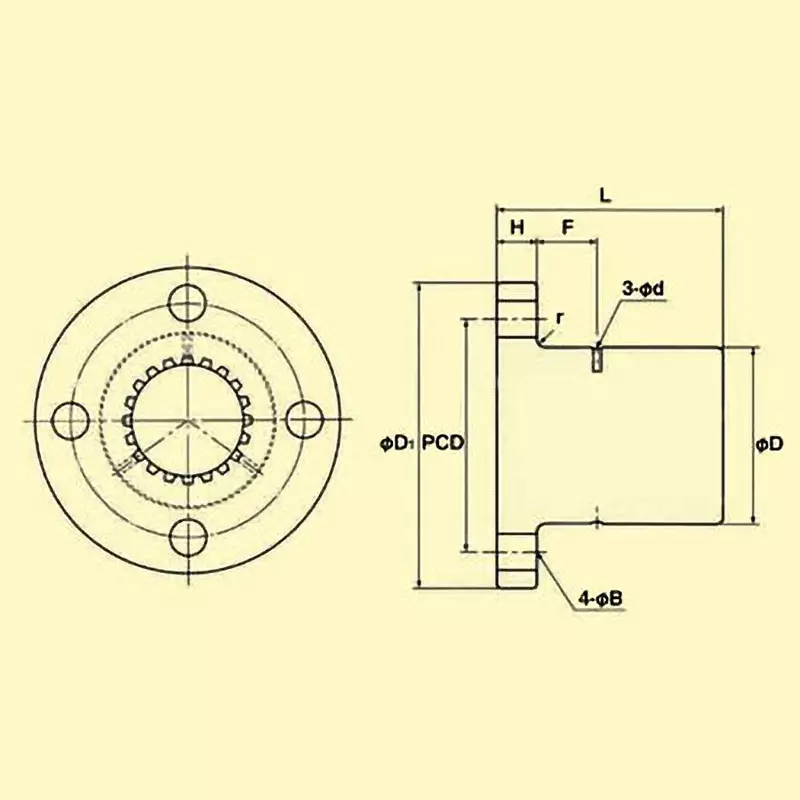

Outer Diameter D (Φmm) |
64 |
Suitable For |
Axis: SS4555 |
Type |
Flange Type |
Outer Diameter (Φmm) |
104 |
Dimension D (Φmm) |
3 |
Dimension F (Φmm) |
21.5 |
Length L (mm) |
55 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
PCD (mm) |
80 |
Dimension B (Φmm) |
11 |
RoHS Directive |
Correspondence |
Outer Diameter Tolerance (mm) |
0 to -0.074(h9) |
Allowable Torque (Nm) |
680 (at contact pressure 9.8 N / mm <sup>2)</sup> |
Dimension R |
2.5 mm |
Flange Thickness (mm) |
12 |
Clearance |
Maximum rotation direction: α ≦ 20 minutes |
