| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Silicone Coating Handle |
| Model No | AP-140-Si-1-1-N7(TAK60) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Silicone Coating Handle |
Model No |
AP-140-Si-1-1-N7(TAK60) |
Material |
Silicone (SI), Aluminum Alloy (ADC) |
Weight |
280 g |

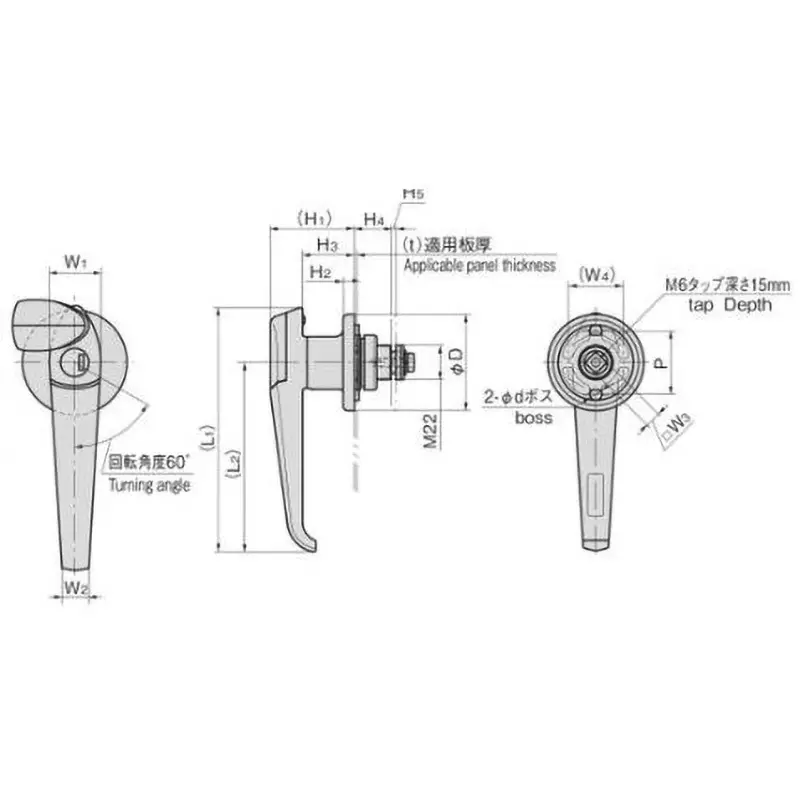

Dimensions P (mm) |
40 |
Dimensions L1 (mm) |
155 |
TAKIGEN Code |
4546 |
Dimensions l2 (mm) |
120 |
Monotaro ID |
54340397 |
Included Components |
2 Large Nuts, Screws And Keys |
Key |
TAK60 |
Dimensions H2 (mm) |
7.2 |
Dimension W4 (mm) |
35 |
Dimension H3 (mm) |
33 |
Dimensions W2 (mm) |
16.5 |
Dimension D (Φmm) |
61.4 |
Dimension H5 (mm) |
8 |
Dimensions H1 (mm) |
53.5 |
Dimension H4 (mm) |
23.5 |
Dimensions W1 (mm) |
33 |
Suitable Thickness of Workpiece (mm) |
0.8 to 10 |
Standard Color |
Gray |
