Ships within 25 days
View
View
View
View
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Plane Swing Handle |
| Model No | A-475-A-1-1(#0200) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Plane Swing Handle |
Model No |
A-475-A-1-1(#0200) |
Material |
Zinc Alloy (ZDC) |
Weight |
260 g |

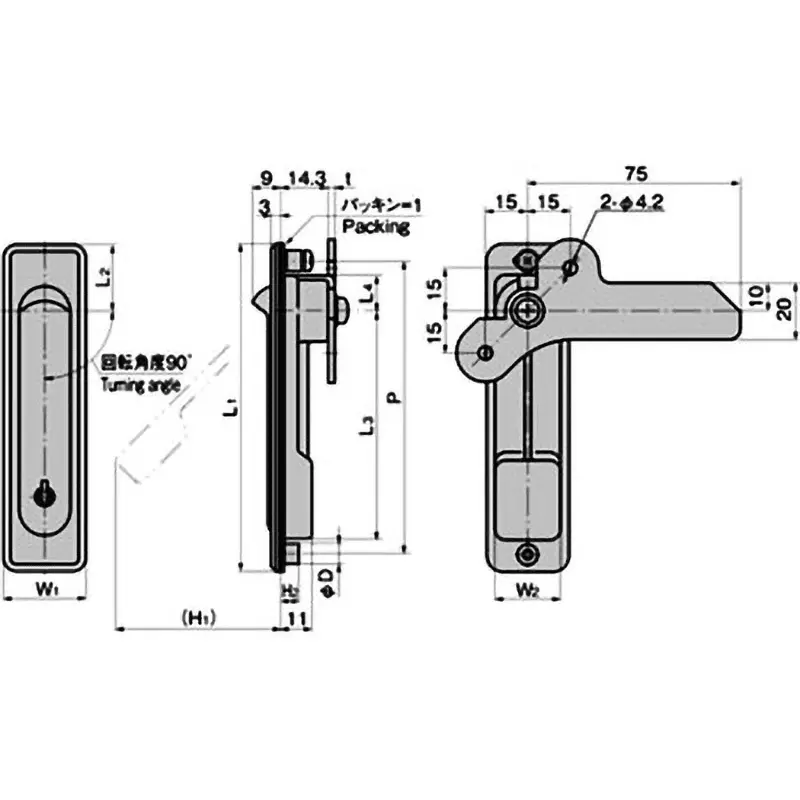

Dimensions P (mm) |
128 |
Dimensions L1 (mm) |
142 |
Dimensions l2 (mm) |
26 |
Monotaro ID |
61099998 |
Included Components |
2 Keys, Screw Set, Special Clasp |
Dimensions H2 (mm) |
7 |
Dimensions W2 (mm) |
26 |
Dimension W3 (mm) |
27 |
Dimension D (Φmm) |
8 |
Dimensions H1 (mm) |
72 |
Dimensions W1 (mm) |
32 |
Dimension L3 (mm) |
103 |
Suitable Thickness of Workpiece (mm) |
0.6 to 2.0 |
Dimensions l4 (mm) |
13 |
Dimensions l5 (mm) |
109 |
Dimension L6 |
103.5 mm |
Dimensions T (mm) |
2.2999999999999998 |
Dimension L7 |
117 |
Import Country |
Direct Import from Japan |
