| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

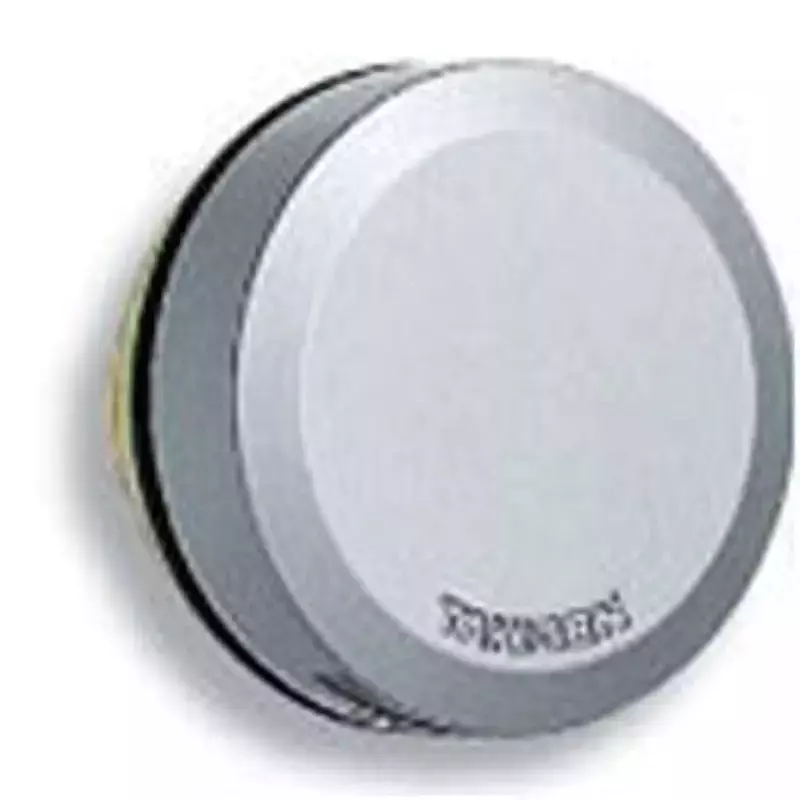

| Type of Product | Lock Handle (Main Unit) |
| Model No | A-310-2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Lock Handle (Main Unit) |
Model No |
A-310-2 |
Material |
Body: Zinc Alloy (ZDC) |
Weight |
300 g |

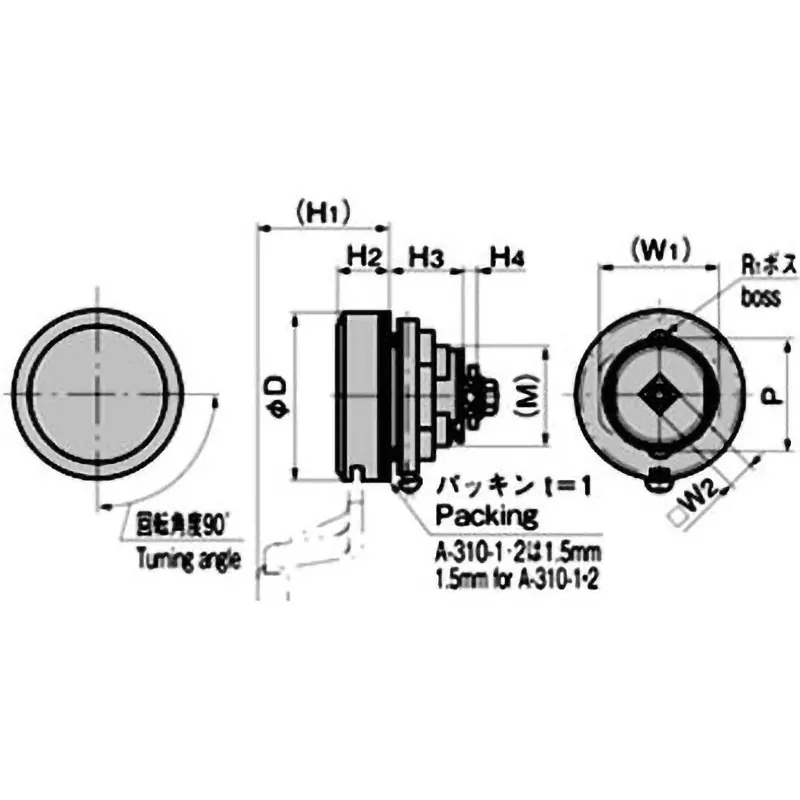

Dimensions P (mm) |
30 |
Surface Finish Type |
Body: Acrylic Resin Baking Finish |
TAKIGEN Code |
590 |
Monotaro ID |
61098975 |
Included Components |
Large Nut and Screw Set |
Maximum Panel Thickness (mm) |
7 |
Dimensions H2 (mm) |
19.5 |
Dimension H3 (mm) |
27 |
Dimensions W2 (mm) |
8 |
Dimension D (Φmm) |
50 |
Dimensions H1 (mm) |
49 |
Dimension H4 (mm) |
4 |
Dimensions W1 (mm) |
32.5 |
Dimension M |
M30 |
Dimension r1 (mm) |
4 |
Dimension R2 (mm) |
4.5 |
