| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG. CO., LTD. |

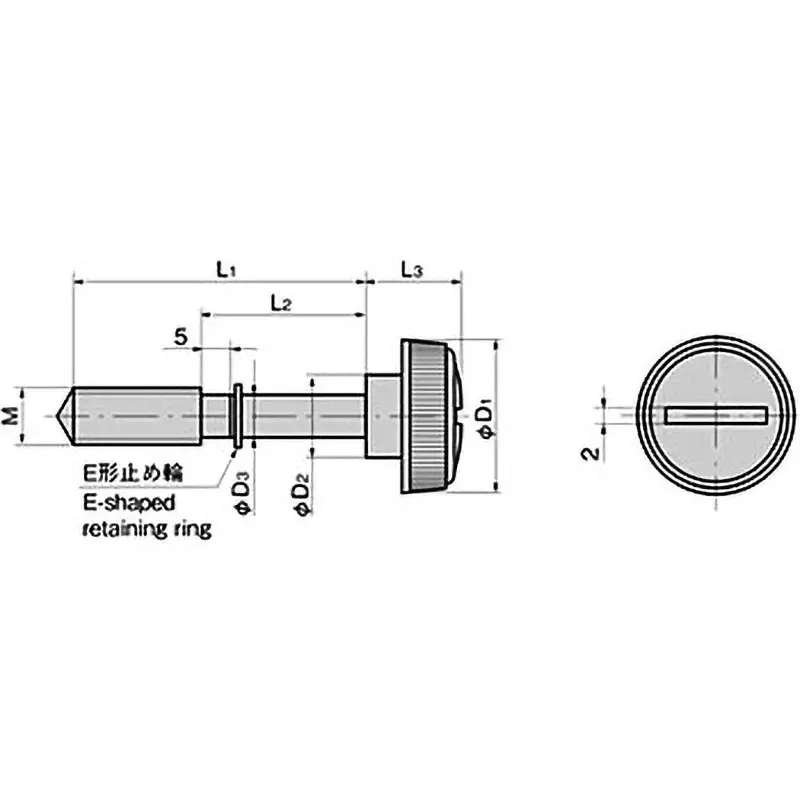

| Type of Product | Foot Length Knurled Knob (M4 X L1 = 20 X L2 = 12) |
| Model No | AP-176-10-Black |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Type of Product |
Foot Length Knurled Knob (M4 X L1 = 20 X L2 = 12) |
Model No |
AP-176-10-Black |
Material |
ABS Resin |
Features |
Each color is used properly according to the management purpose. |
Surface Finish Type |
Mounting part: Nickel plating (MBNi) |
TAKIGEN Code |
477 |
Monotaro ID |
62797638 |
Included Components |
E type retaining ring |
Dimension L3 (mm) |
10 |
Type |
Round type |
Standard Color |
Black |
Dimension d2 (Φmm) |
8 |
Dimension d1 (Φmm) |
15 |
Dimension M |
M4 |
Dimension d3 (Φmm) |
3 |
Mass (g) |
2.5 |
Import Country |
Direct Import from Japan |
Dimension L1 |
20 mm |
Dimension L2 |
12 mm |
Connection to Equipment |
Male screw (with step) |
Nominal Size of Screw |
M4 |
Mounting Material |
Free-cutting brass bar (C3602BD) |
Mounting Length (mm) |
20 |
