| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Flat Handle |
| Model No | A-181-1-1(#0050) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Flat Handle |
Model No |
A-181-1-1(#0050) |
Material |
Zinc Alloy (ZDC) |
Weight |
370 g |

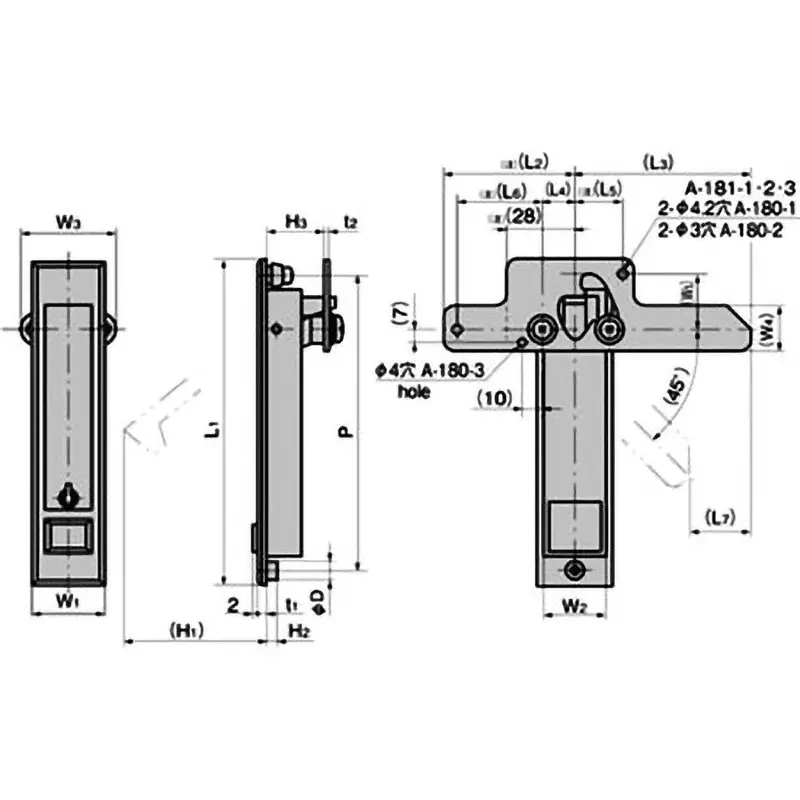

Dimensions P (mm) |
128 |
Dimensions L1 (mm) |
142 |
Dimensions l2 (mm) |
62 |
Monotaro ID |
61097252 |
Included Components |
2 Keys (No.0050), Screw Set, Special Clasp |
Dimensions H2 (mm) |
5 |
Dimension H3 (mm) |
24.5 |
Dimensions W2 (mm) |
26 |
Dimension W3 (mm) |
40 |
Dimension D (Φmm) |
8 |
Dimensions H1 (mm) |
58 |
Dimensions W1 (mm) |
32 |
Dimension L3 (mm) |
75 |
Suitable Thickness of Workpiece (mm) |
1.2 to 1.8 |
Dimensions l4 (mm) |
14 |
Dimension L6 |
42 mm |
Dimensions R (mm) |
4.5 |
Dimension t1 (mm) |
3 |
Dimension t2 (mm) |
3.2 |
Import Country |
Direct Import from Japan |
