| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Flat Swing Handle |
| Model No | A-446-2-1(#0200) W/0 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Flat Swing Handle |
Model No |
A-446-2-1(#0200) W/0 |
Material |
Zinc Alloy (ZDC) |

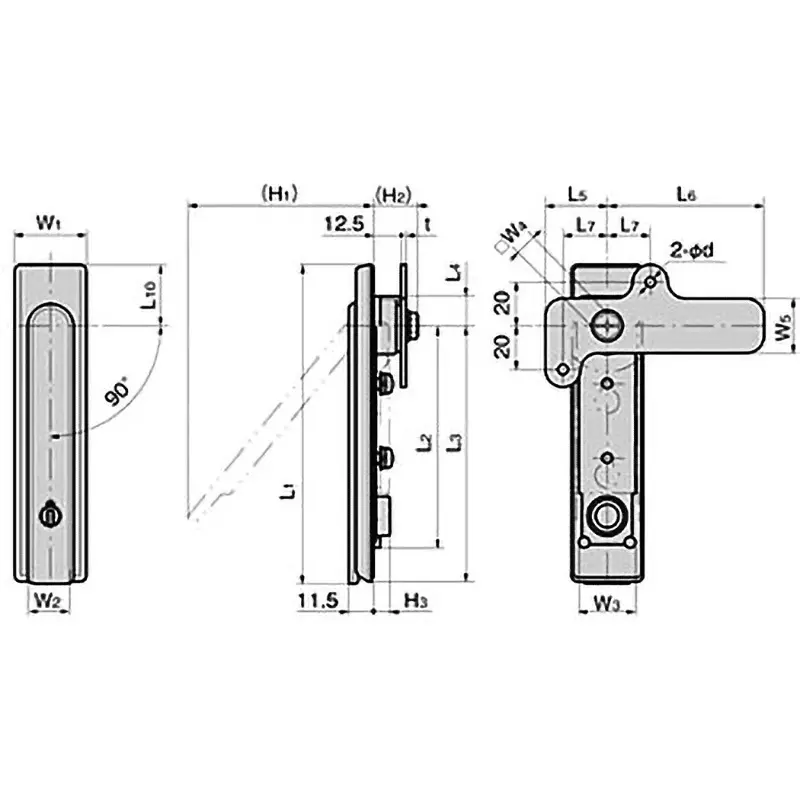

Dimensions L1 (mm) |
121 |
Surface Finish Type |
Acrylic Resin Baking Finish (Silver) |
Dimensions l2 (mm) |
83.5 |
Monotaro ID |
62798952 |
Included Components |
Dedicated Clasp, Mounting Plate, Screw Set |
Dimension W4 (mm) |
8 |
Dimensions W2 (mm) |
19 |
Dimension W3 (mm) |
23 |
Dimensions H1 (mm) |
76.3 |
Dimensions W1 (mm) |
30 |
Dimension L3 (mm) |
93 |
Dimensions l4 (mm) |
11.8 |
Dimensions l5 (mm) |
22 |
Dimension L6 |
62 mm |
Dimension L8 (mm) |
12 |
Dimension L7 |
15 |
Dimension W5 (mm) |
24 |
Dimension W6 (mm) |
24 |
Dimension L10 |
27 |
Dimension L9 (mm) |
96 |
