| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

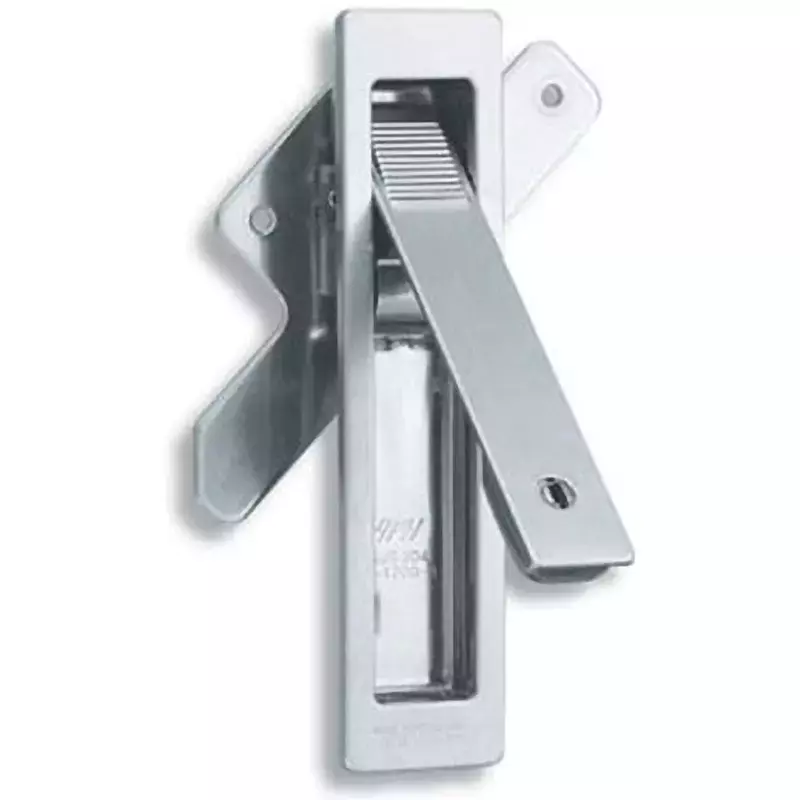

| Type of Product | Stainless Steel Flat Handle |
| Model No | A-1700-3-1(#0200) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Stainless Steel Flat Handle |
Model No |
A-1700-3-1(#0200) |
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |

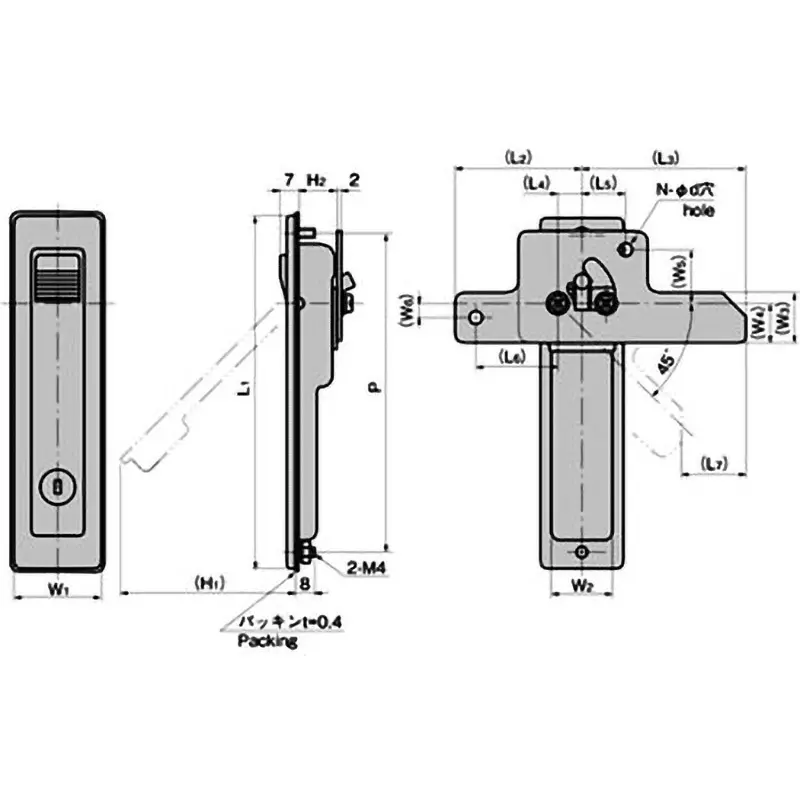

Dimensions P (mm) |
72 |
Dimensions L1 (mm) |
84 |
Dimensions l2 (mm) |
18.5 |
Monotaro ID |
61104654 |
Included Components |
Clasp, Screw Set, 2 Keys |
Dimensions H2 (mm) |
13 |
Dimension W4 (mm) |
10 |
Dimensions W2 (mm) |
23 |
Dimension W3 (mm) |
15 |
Dimensions H1 (mm) |
26 |
Dimensions W1 (mm) |
29 |
Dimension L3 (mm) |
61.5 |
Dimension n (mm) |
1 |
Suitable Thickness of Workpiece (mm) |
0 to 3.5 |
Dimensions l4 (mm) |
8.5 |
Dimensions l5 (mm) |
21.5 |
Dimension L8 (mm) |
44.5 |
Dimension L7 |
22 |
Dimension W5 (mm) |
15 |
