| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

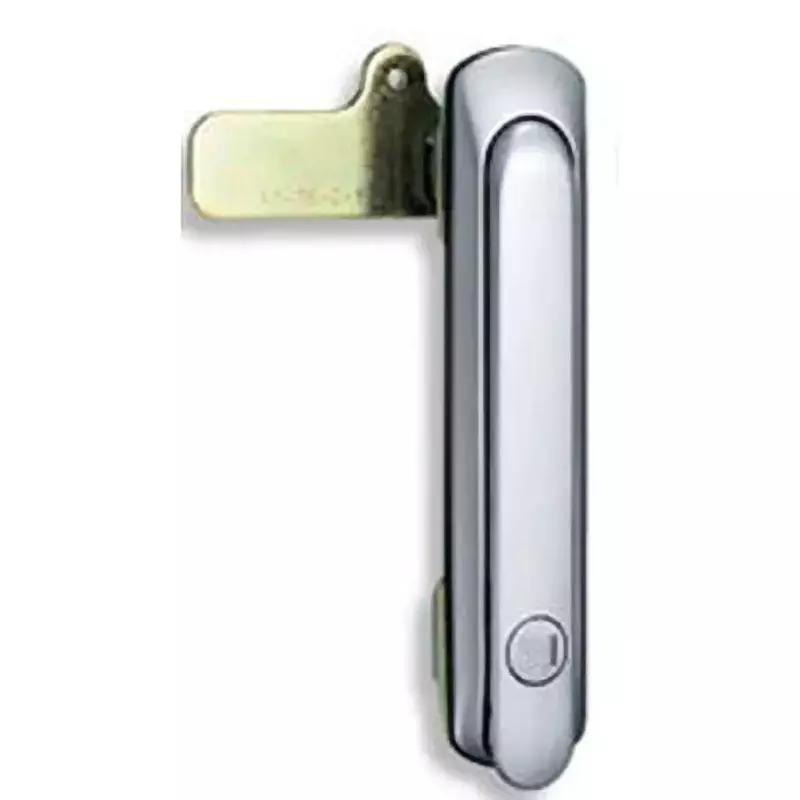

| Type of Product | Flat Swing Handle |
| Model No | A-464-L2-1 Satellite (#0200) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Flat Swing Handle |
Model No |
A-464-L2-1 Satellite (#0200) |
Material |
Aluminum Alloy (ADC) |
Weight |
580 g |

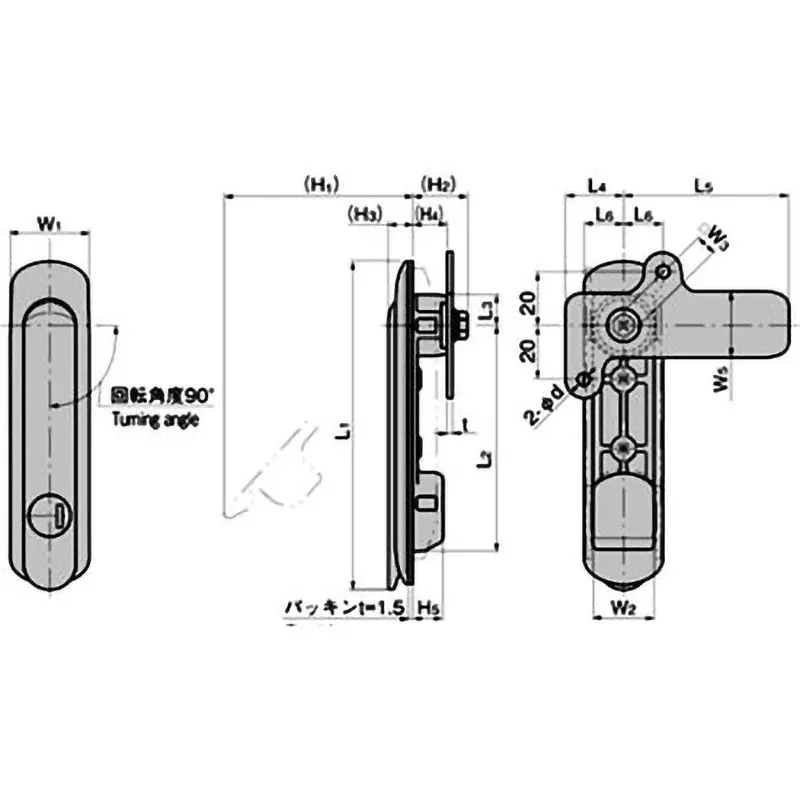

Dimensions L1 (mm) |
170 |
Dimensions l2 (mm) |
129.5 |
Monotaro ID |
61099876 |
Included Components |
Clasp, Mounting Plate, Screw Set, 2 Keys |
Dimensions H2 (mm) |
30 |
Dimension H3 (mm) |
11 |
Dimensions W2 (mm) |
24.5 |
Dimension W3 (mm) |
10 |
Dimension H5 (mm) |
21 |
Dimensions H1 (mm) |
107 |
Dimension H4 (mm) |
20 |
Dimensions W1 (mm) |
36 |
Dimension L3 (mm) |
19.5 |
Suitable Thickness of Workpiece (mm) |
0 to 2.5 |
Dimensions l4 (mm) |
28 |
Dimensions l5 (mm) |
72 |
Dimension L6 |
20 mm |
Dimensions T (mm) |
3.2 |
Import Country |
Direct Import from Japan |
