| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

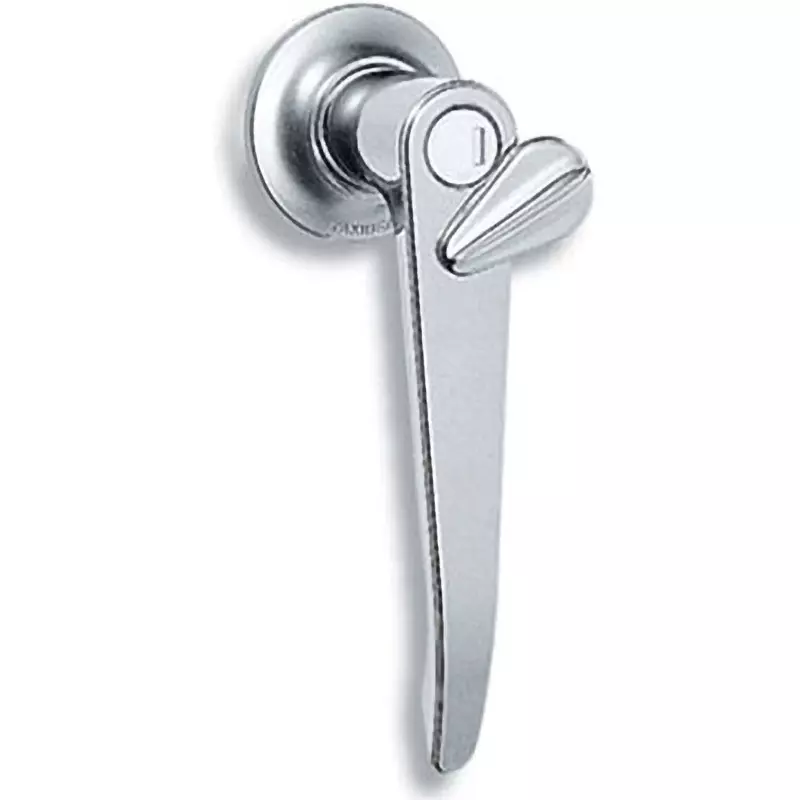

| Type of Product | Cannon Type Handle |
| Model No | A-33-1-1(#0200) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Cannon Type Handle |
Model No |
A-33-1-1(#0200) |
Material |
Zinc Alloy (ZDC) |
Weight |
285 g |
Surface Finish Type |
Chrome Plating (MZCR) |
Monotaro ID |
61093068 |
Included Components |
Large Nut And Screw Set |
Maximum Panel Thickness (mm) |
1.6 |
Key |
200 |

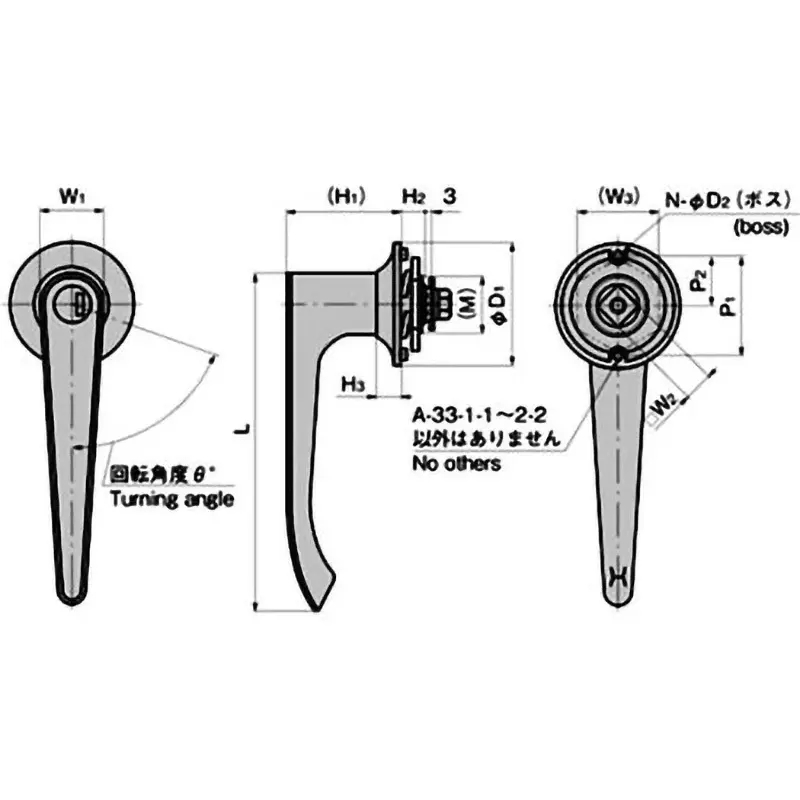

Dimensions H2 (mm) |
8.3000000000000007 |
Dimension H3 (mm) |
9 |
Dimensions W2 (mm) |
10 |
Dimension W3 (mm) |
32 |
Dimension L (mm) |
135 |
Dimensions H1 (mm) |
49 |
Dimensions W1 (mm) |
25 |
Dimension P1 (mm) |
40 |
Dimension P2 (mm) |
- |
Dimension n (mm) |
2 |
Dimension d2 (Φmm) |
4 |
Dimension |
θ70° |
Dimension d1 (Φmm) |
48 |
