| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

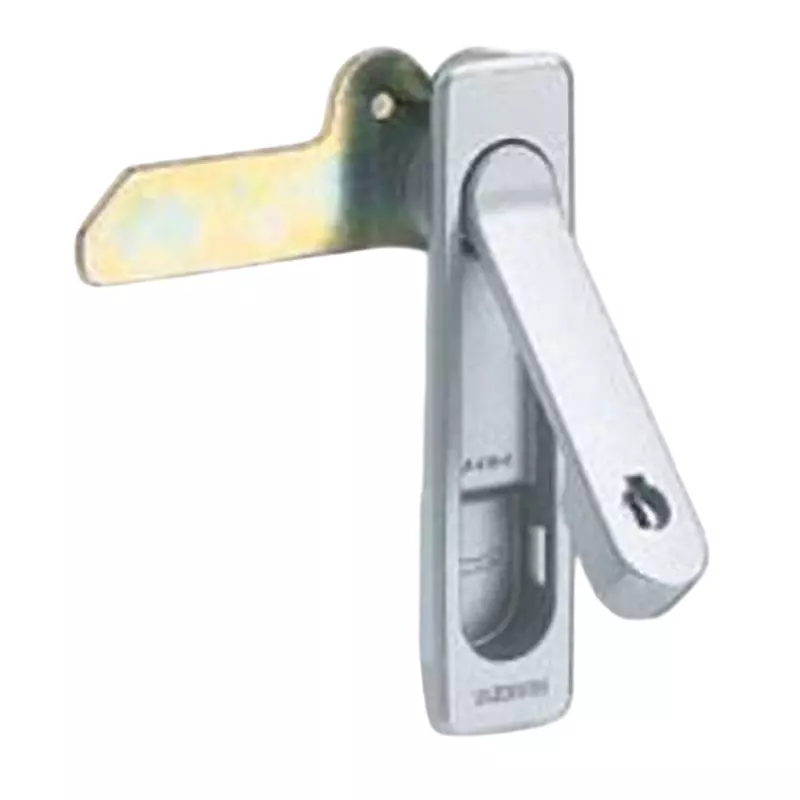

| Type of Product | Plane Swing Handle |
| Model No | A-475-A-2-2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Plane Swing Handle |
Model No |
A-475-A-2-2 |
Material |
Zinc Alloy (ZDC) |
Weight |
213 g |

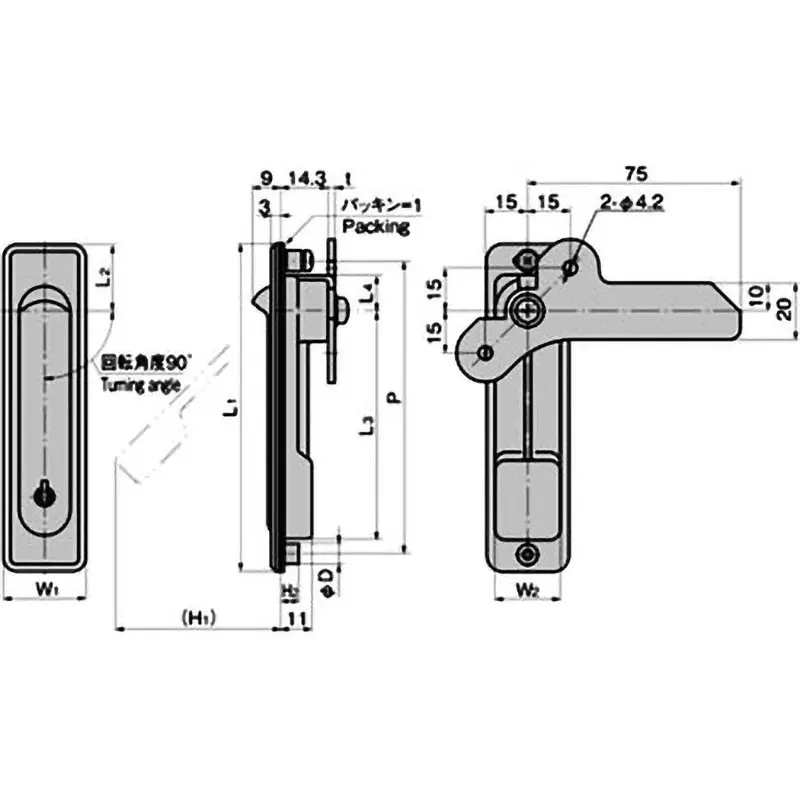

Dimensions P (mm) |
105 |
Dimensions L1 (mm) |
117 |
Dimensions l2 (mm) |
24 |
Monotaro ID |
61100025 |
Included Components |
Screw Set, Special Clasp, Mounting Plate |
Dimensions H2 (mm) |
6 |
Dimensions W2 (mm) |
23 |
Dimension W3 (mm) |
24 |
Dimension D (Φmm) |
7 |
Dimensions H1 (mm) |
56 |
Dimensions W1 (mm) |
30 |
Dimension L3 (mm) |
82 |
Suitable Thickness of Workpiece (mm) |
0.6 to 2.6 |
Dimensions l4 (mm) |
13 |
Dimensions l5 (mm) |
87 |
Dimension L6 |
82.5 mm |
Dimensions T (mm) |
2.2999999999999998 |
Dimension L7 |
96 |
