Ships within 25 days
View
View
View
View
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG. CO., LTD. |

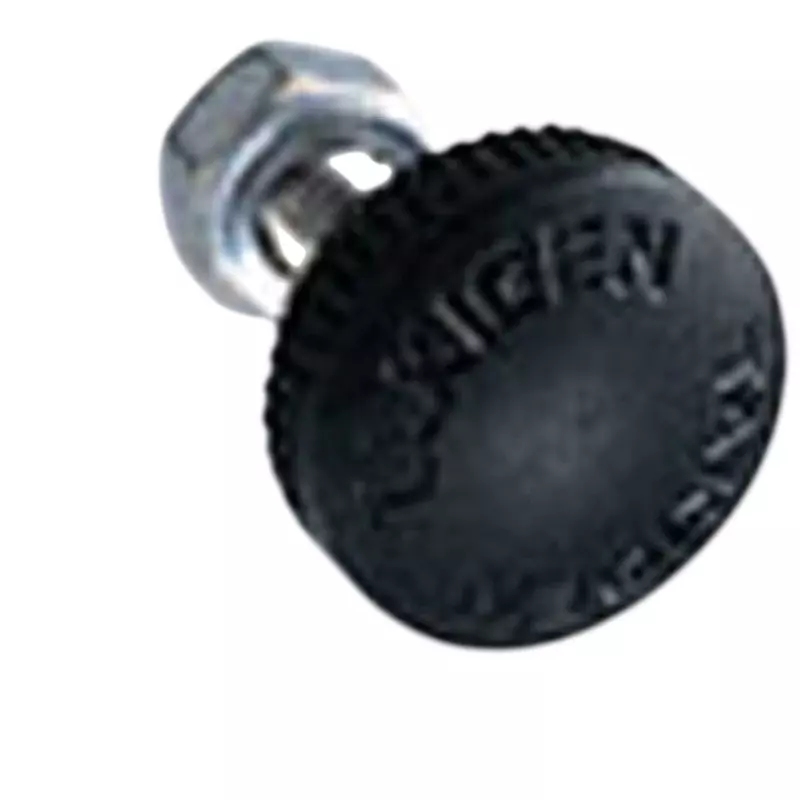

| Type of Product | Knurled Knob (M6 X L10) |
| Model No | AP-38-1-Black |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Type of Product |
Knurled Knob (M6 X L10) |
Model No |
AP-38-1-Black |
Material |
ABS Resin |
Surface Finish Type |
Mounting part: Nickel plating (MBNi) |
TAKIGEN Code |
1366 |
Monotaro ID |
61093217 |
Included Components |
SW / Nut |

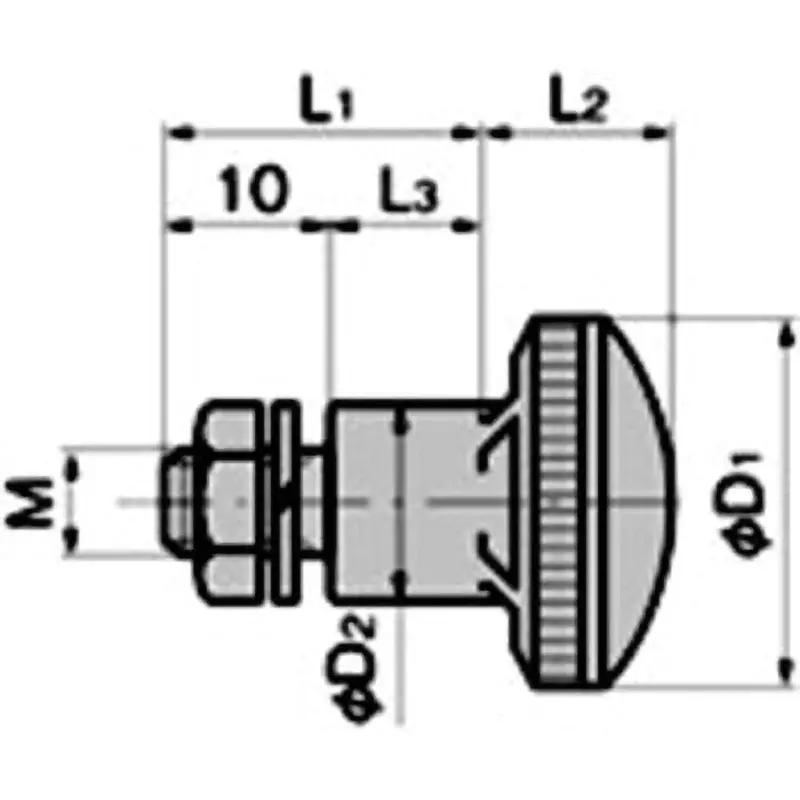

Dimension L3 (mm) |
9 |
Type |
Round type |
Dimension d2 (Φmm) |
11 |
Dimension d1 (Φmm) |
22 |
Dimension M |
M6 |
Mass (g) |
9 |
Import Country |
Direct Import from Japan |
Dimension L1 |
19 mm |
Dimension L2 |
11 mm |
Connection to Equipment |
Male screw (with step) |
Nominal Size of Screw |
M6 |
Mounting Material |
Free-cutting brass bar (C3604BD) |
Mounting Length (mm) |
10 |
