| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG. CO., LTD. |

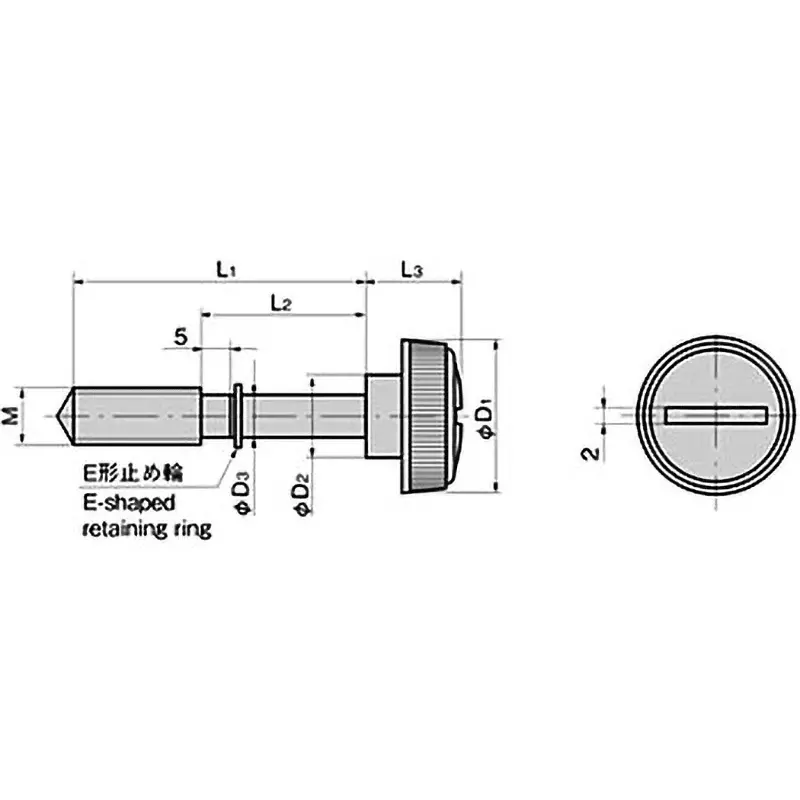

| Type of Product | Foot Length Knurl Knob (M4 X L1 = 27 X L2 = 17) |
| Model No | AP-176-9-Gray |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Type of Product |
Foot Length Knurl Knob (M4 X L1 = 27 X L2 = 17) |
Model No |
AP-176-9-Gray |
Material |
ABS Resin |
Features |
Each color is used properly according to the management purpose. |
Surface Finish Type |
Mounting part: Nickel plating (MBNi) |
TAKIGEN Code |
471 |
Monotaro ID |
62797613 |
Included Components |
E type retaining ring |
Dimension L3 (mm) |
10 |
Type |
Round type |
Standard Color |
Gray |
Dimension d2 (Φmm) |
8 |
Dimension d1 (Φmm) |
15 |
Dimension M |
M4 |
Dimension d3 (Φmm) |
3 |
Mass (g) |
3.5 |
Import Country |
Direct Import from Japan |
Dimension L1 |
27 mm |
Dimension L2 |
17 mm |
Connection to Equipment |
Male screw (with step) |
Nominal Size of Screw |
M4 |
Mounting Material |
Free-cutting brass bar (C3602BD) |
Mounting Length (mm) |
27 |
