| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

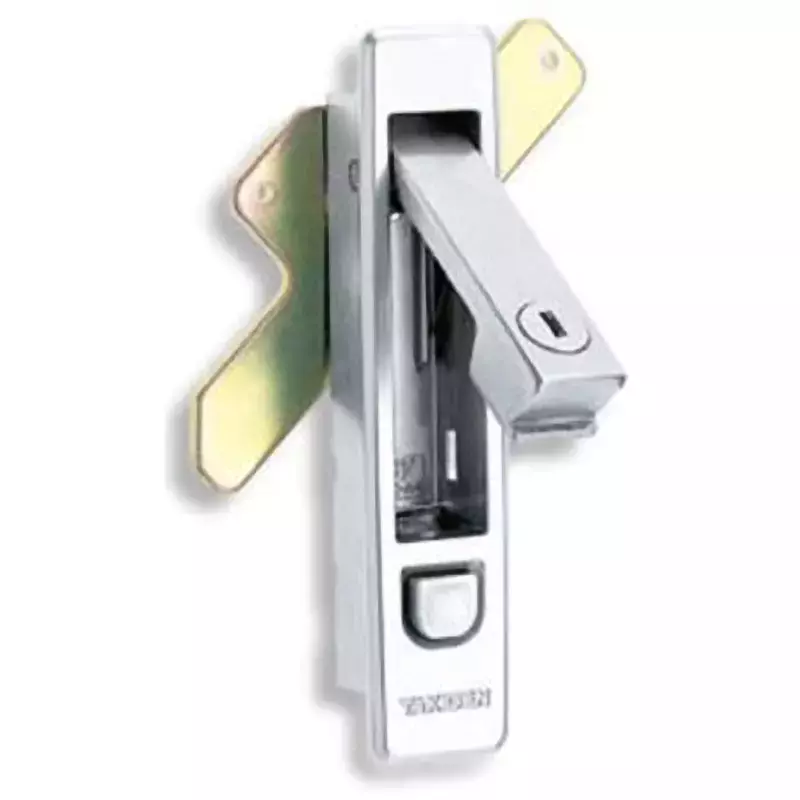

| Type of Product | Plane Handle |
| Model No | A-260-A-1-2 with new AB clasp |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Plane Handle |
Model No |
A-260-A-1-2 with new AB clasp |
Material |
Zinc Alloy (ZDC) |
Weight |
395 g |

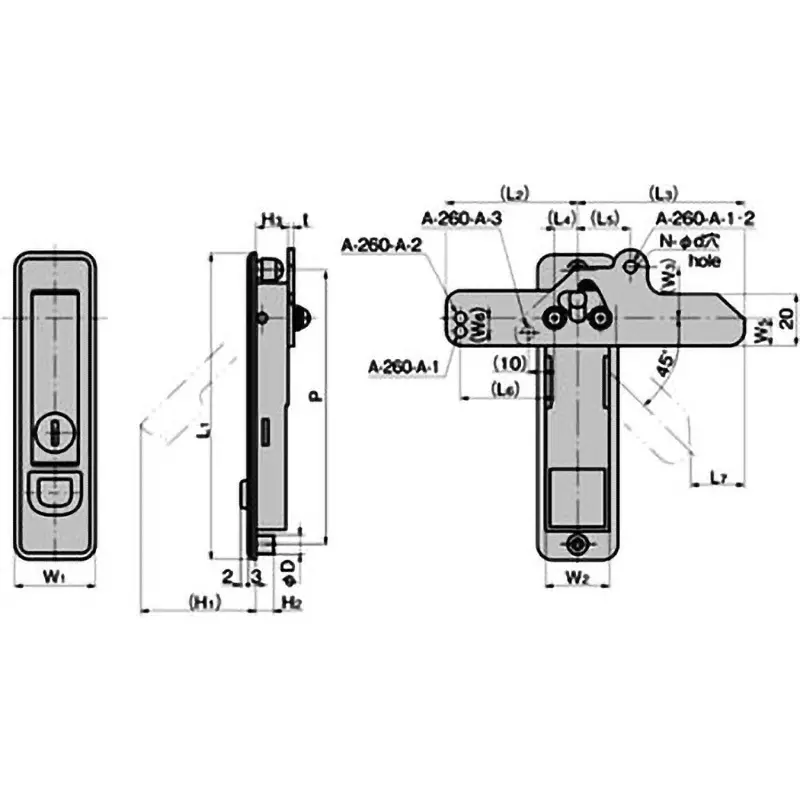

Dimensions P (mm) |
128 |
Dimensions L1 (mm) |
142 |
Dimensions l2 (mm) |
49.5 |
Monotaro ID |
61098652 |
Included Components |
Screw Set, Special Clasp |
Dimensions H2 (mm) |
7 |
Dimension H3 (mm) |
17 |
Dimensions W2 (mm) |
26 |
Dimension W3 (mm) |
22 |
Dimension D (Φmm) |
8 |
Dimensions H1 (mm) |
58 |
Dimension L3 (mm) |
65.5 |
Dimension n (mm) |
2 |
Dimensions l4 (mm) |
9.5 |
Dimension L6 |
34.5 mm |
Dimensions T (mm) |
3.2 |
Dimensions R (mm) |
4.5 |
Dimensions w (mm) |
32 |
