| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

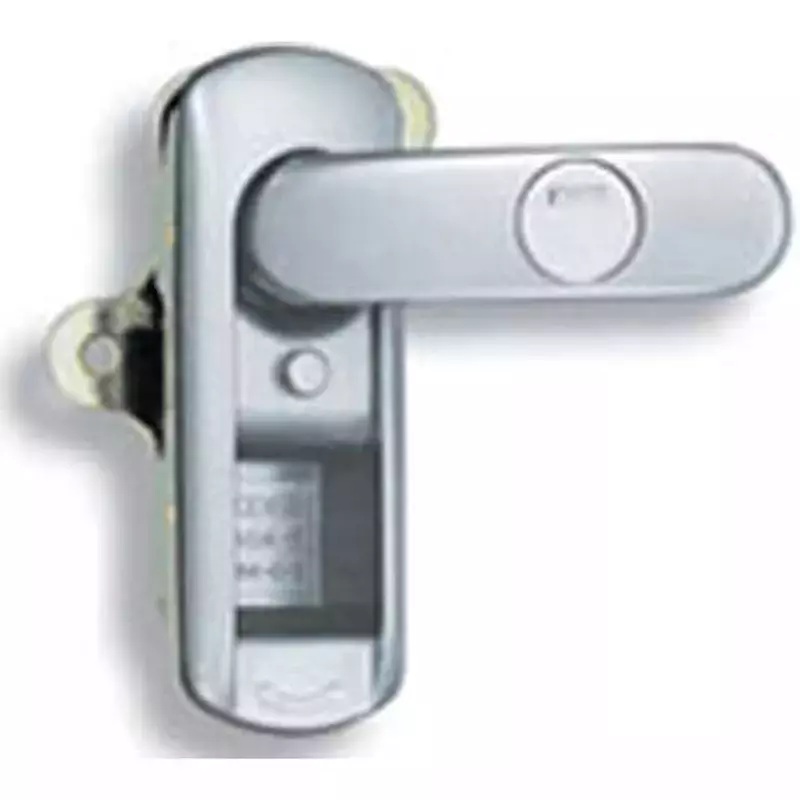

| Type of Product | Flat Handle |
| Model No | A-464-F-3-1-R Satellite (TAK60) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Flat Handle |
Model No |
A-464-F-3-1-R Satellite (TAK60) |
Material |
Zinc Alloy (ZDC) |
Weight |
380 g |

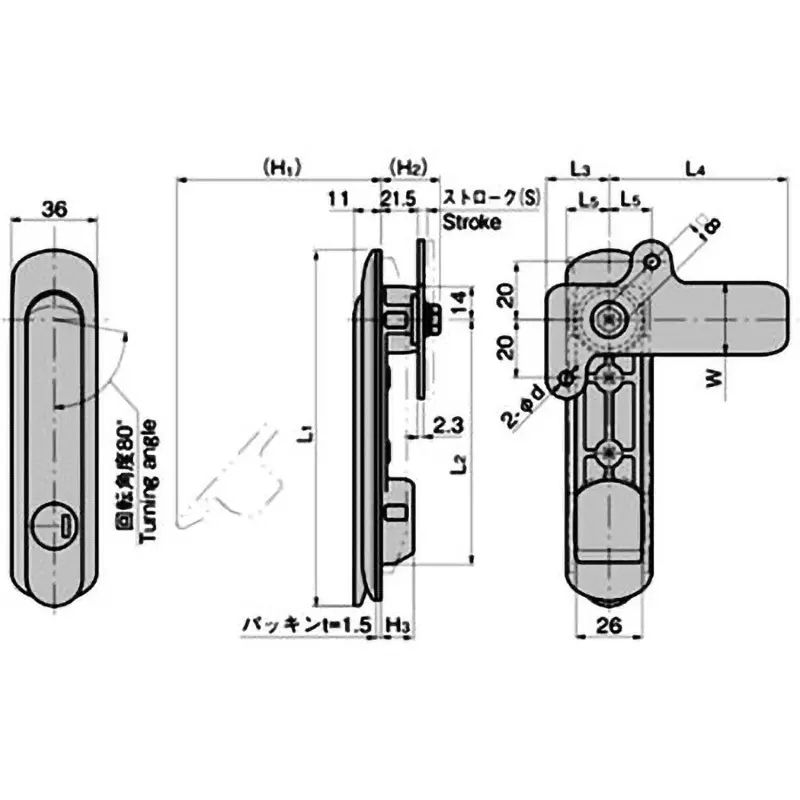

Dimensions L1 (mm) |
89 |
Surface Finish Type |
Satellite Chrome Plating (MZCR) |
TAKIGEN Code |
4076 |
Dimensions l2 (mm) |
48 |
Monotaro ID |
61099833 |
Included Components |
Clasp, Mounting Plate, Screw Set, 2 Keys |
Key |
TAK60 |
Dimensions H2 (mm) |
30 |
Dimension H3 (mm) |
18.5 |
Dimensions H1 (mm) |
50 |
Dimension L3 (mm) |
22 |
Suitable Thickness of Workpiece (mm) |
0 to 2.3 |
Dimensions l4 (mm) |
62 |
Dimensions l5 (mm) |
15 |
Dimension L6 |
63 mm |
Dimensions s (mm) |
2.2999999999999998 |
Dimensions w (mm) |
24 |
Dimension L7 |
48 |
