| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

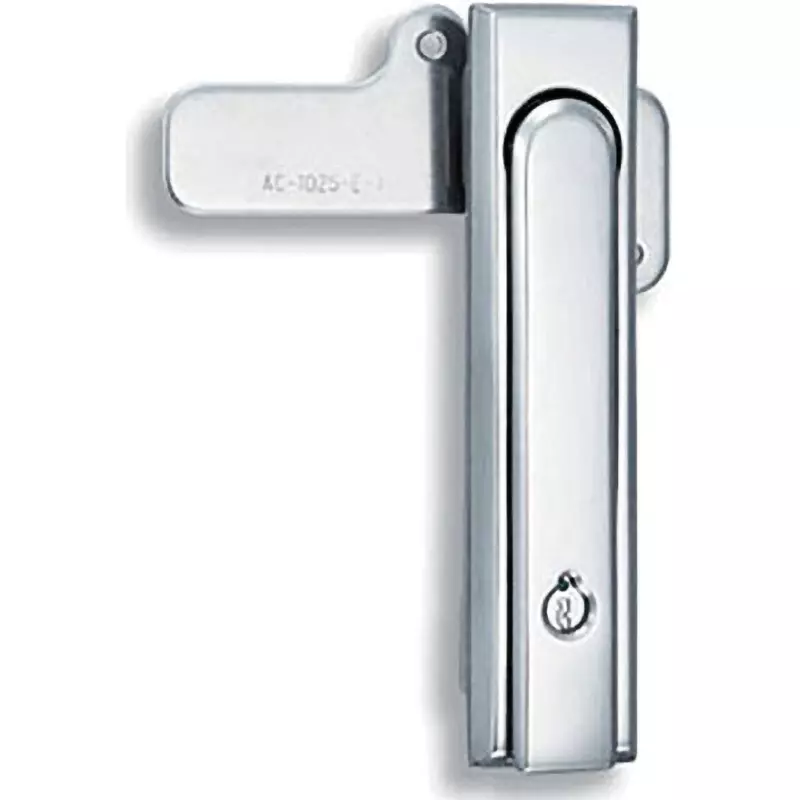

| Type of Product | Flat Swing Handle |
| Model No | A-1446-1-1(#0200) W/2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Flat Swing Handle |
Model No |
A-1446-1-1(#0200) W/2 |
Material |
Stainless Steel Casting (SUS304) |

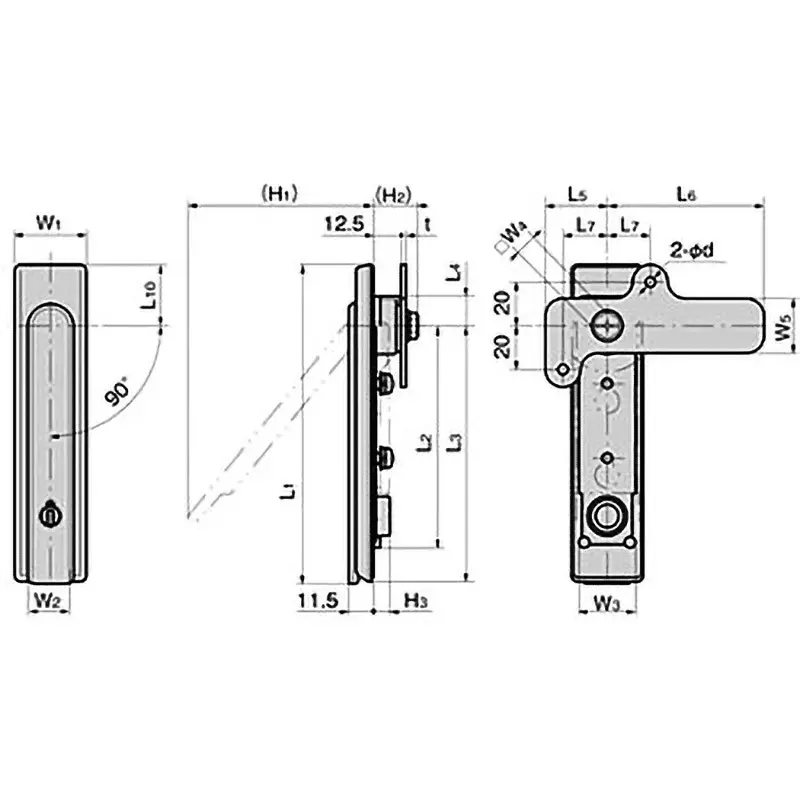

Dimensions L1 (mm) |
146 |
Surface Finish Type |
Mirror Buffing |
Dimensions l2 (mm) |
101.5 |
Monotaro ID |
62801777 |
Included Components |
2 Keys, Special Clasp, Mounting Plate, Screw Set |
Dimension W4 (mm) |
10 |
Dimensions W2 (mm) |
21 |
Dimension W3 (mm) |
26 |
Dimensions H1 (mm) |
85 |
Dimensions W1 (mm) |
33 |
Dimension L3 (mm) |
117 |
Dimensions l4 (mm) |
13.5 |
Dimensions l5 (mm) |
28 |
Dimension L6 |
72 mm |
Dimension L8 (mm) |
14.5 |
Dimension L7 |
20 |
Dimension W5 (mm) |
25 |
Dimension W6 (mm) |
27 |
Dimension L10 |
28 |
Dimension L9 (mm) |
117 |
