| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG. CO., LTD. |

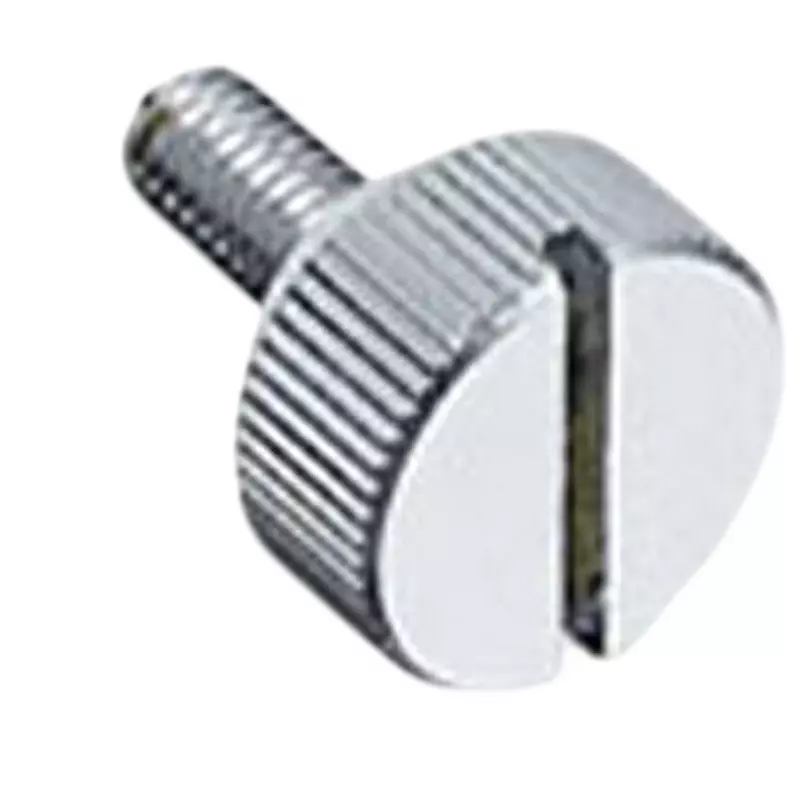

| Type of Product | Knurled Knob (M5 X L1 = 12.5) All Screws |
| Model No | A-176-S-3 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Type of Product |
Knurled Knob (M5 X L1 = 12.5) All Screws |
Model No |
A-176-S-3 |
Material |
Free-cutting brass bar (C3602BD) |
Surface Finish Type |
Body: Chrome plating (MBCr), Mounting part: Chrome plating (MBCr) |
TAKIGEN Code |
1505 |
Monotaro ID |
61096866 |
Included Components |
1 nylon washer |
Type |
Round type |

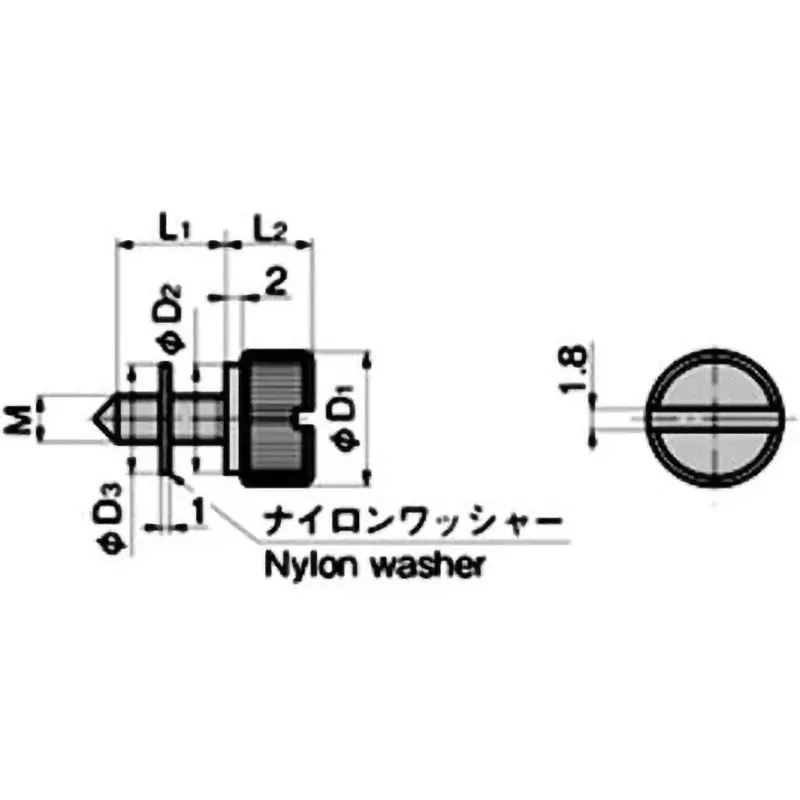

Dimension d2 (Φmm) |
12 |
Dimension d1 (Φmm) |
15 |
Dimension M |
M5 |
Dimension d3 (Φmm) |
12 |
Mass (g) |
15 |
Import Country |
Direct Import from Japan |
Dimension L1 |
12.5 mm |
Dimension L2 |
10 mm |
Connection to Equipment |
Male screw |
Nominal Size of Screw |
M5 |
Mounting Material |
Free-cutting brass bar (C3602BD) |
Mounting Length (mm) |
12.5 |
