| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

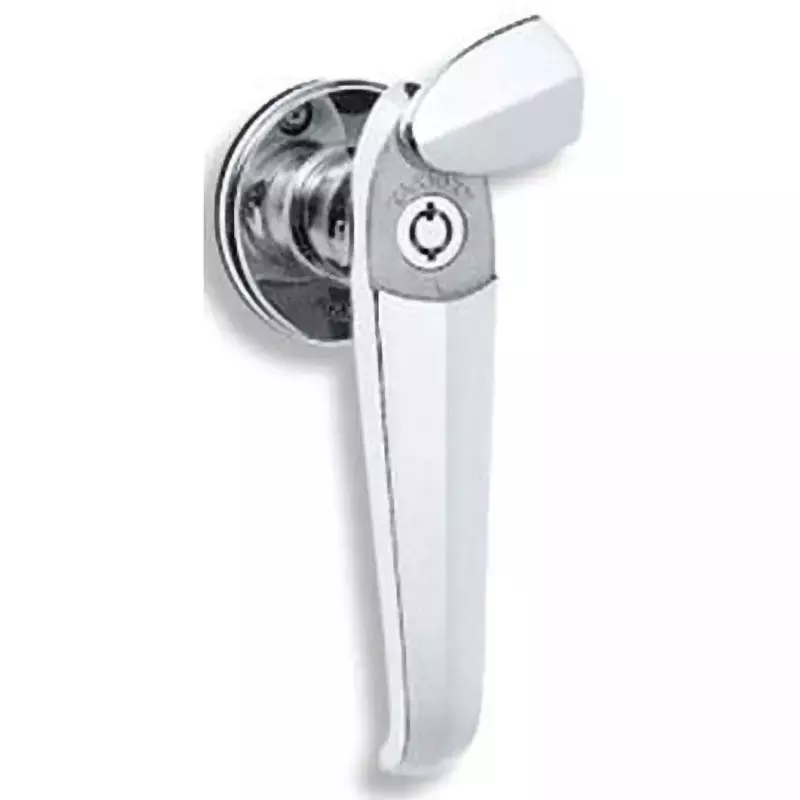

| Type of Product | Waterproof Handle |
| Model No | A-1140-2-2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Waterproof Handle |
Model No |
A-1140-2-2 |
Material |
Stainless Steel Casting (SUS316) |
Weight |
340 g |
Surface Finish Type |
Mirror Buffing |
Monotaro ID |
61102886 |
Maximum Panel Thickness (mm) |
8.8000000000000007 |
Key |
Without key |

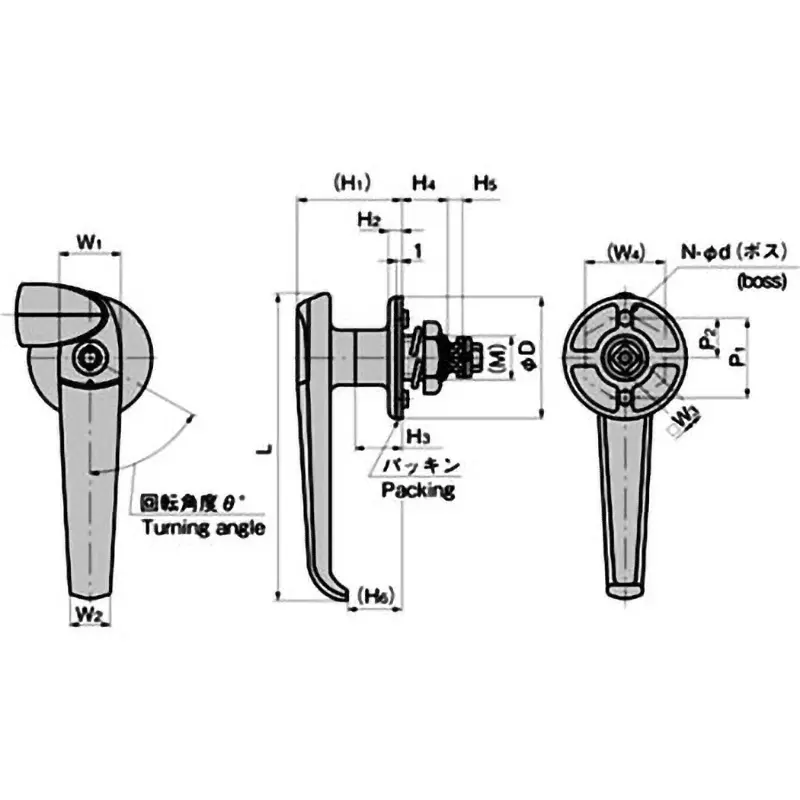

Dimensions H2 (mm) |
5 |
Dimension W4 (mm) |
32 |
Dimension H3 (mm) |
12 |
Dimensions W2 (mm) |
14 |
Dimension W3 (mm) |
8 |
Dimension D (Φmm) |
48 |
Dimension H5 (mm) |
3 |
Dimension L (mm) |
120 |
Dimensions H1 (mm) |
43 |
Dimension H4 (mm) |
14.8 |
Dimensions W1 (mm) |
24 |
Dimension P1 (mm) |
32 |
Dimension n (mm) |
2 |
Dimension |
θ65° |
