| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

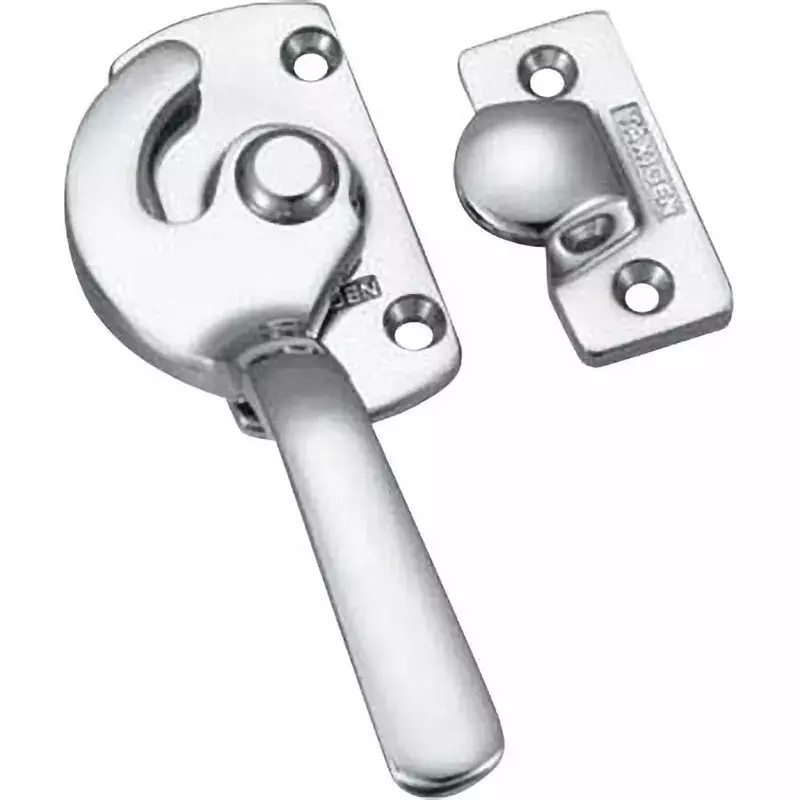

| Type of Product | Sealing Handle |
| Model No | FA-114N-4L |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Sealing Handle |
Model No |
FA-114N-4L |
Material |
Brass For Forging (Equivalent To C3771) |
Weight |
160 g |

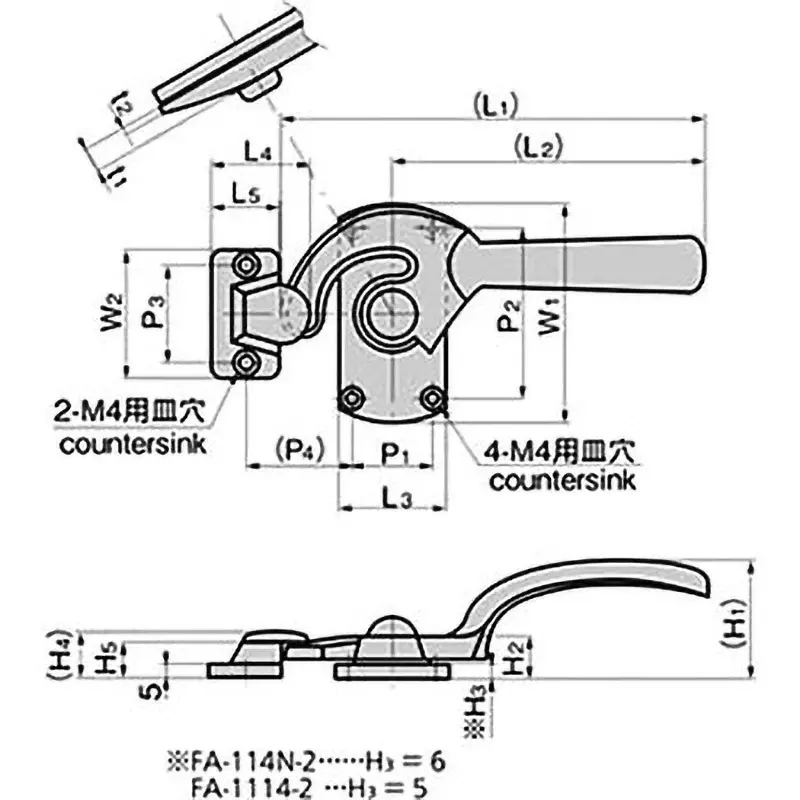

Dimensions L1 (mm) |
111 |
Dimensions l2 (mm) |
84 |
Monotaro ID |
62818428 |
Dimensions H2 (mm) |
13 |
Dimension H3 (mm) |
5 |
Dimensions W2 (mm) |
45 |
Dimension H5 (mm) |
10 |
Dimensions H1 (mm) |
35 |
Dimension H4 (mm) |
14.5 |
Dimensions W1 (mm) |
60 |
Dimension P1 (mm) |
20 |
Dimension P2 (mm) |
40 |
Dimension L3 (mm) |
30 |
Dimensions l4 (mm) |
30 |
Dimensions l5 (mm) |
20 |
Dimension P3 (mm) |
32 |
Dimension P4 (mm) |
28 |
Dimension t1 (mm) |
7 |
Dimension t2 (mm) |
3 |
