| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

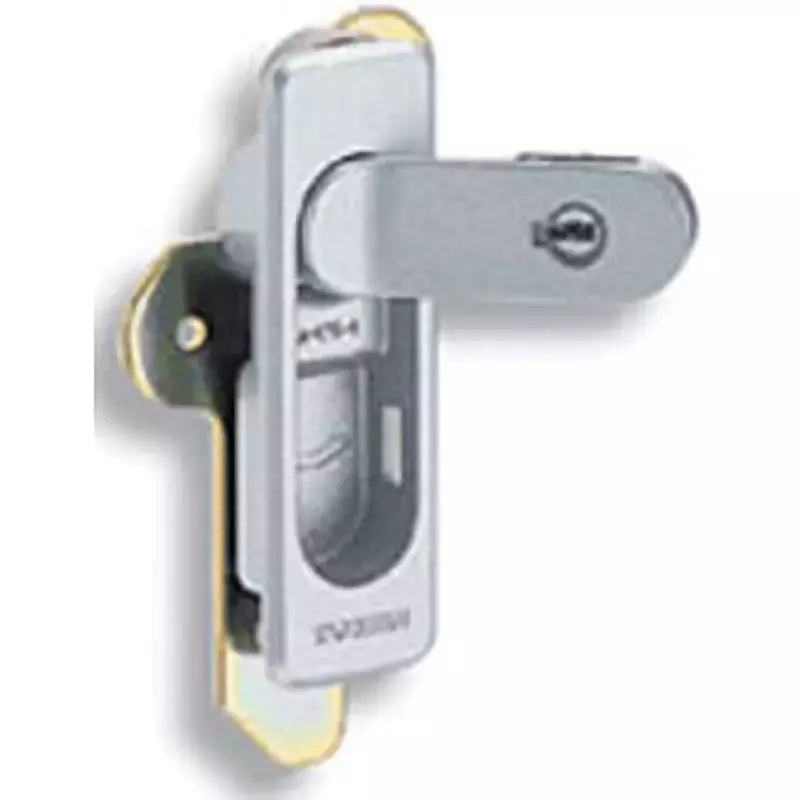

| Type of Product | Plane Swing Handle |
| Model No | A-1475-A-3(#0200) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Plane Swing Handle |
Model No |
A-1475-A-3(#0200) |
Material |
Stainless Steel Casting (SUS304) |
Weight |
192 g |

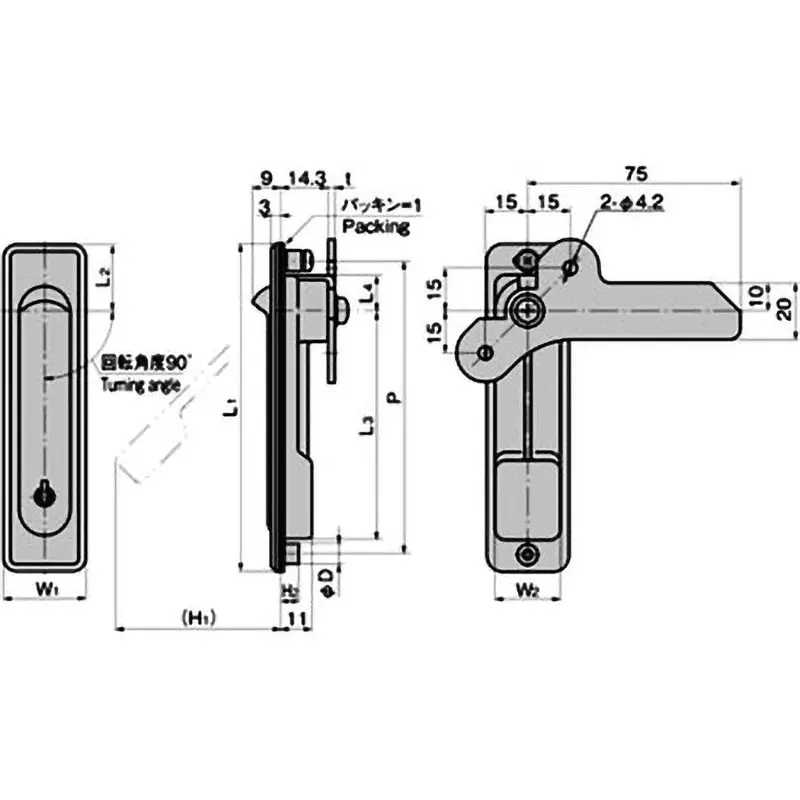

Dimensions P (mm) |
72 |
Dimensions L1 (mm) |
84 |
Dimensions l2 (mm) |
24 |
Monotaro ID |
61104338 |
Included Components |
2 Keys, Screw Set, Special Clasp |
Dimensions H2 (mm) |
6 |
Dimensions W2 (mm) |
23 |
Dimension W3 (mm) |
24 |
Dimension D (Φmm) |
7 |
Dimensions H1 (mm) |
36 |
Dimensions W1 (mm) |
28 |
Dimension L3 (mm) |
49 |
Suitable Thickness of Workpiece (mm) |
0.6 to 2.5 |
Dimensions l4 (mm) |
13 |
Dimensions l5 (mm) |
54 |
Dimension L6 |
49.5 mm |
Dimensions T (mm) |
2.5 |
Dimension L7 |
63 |
Import Country |
Direct Import from Japan |
