| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

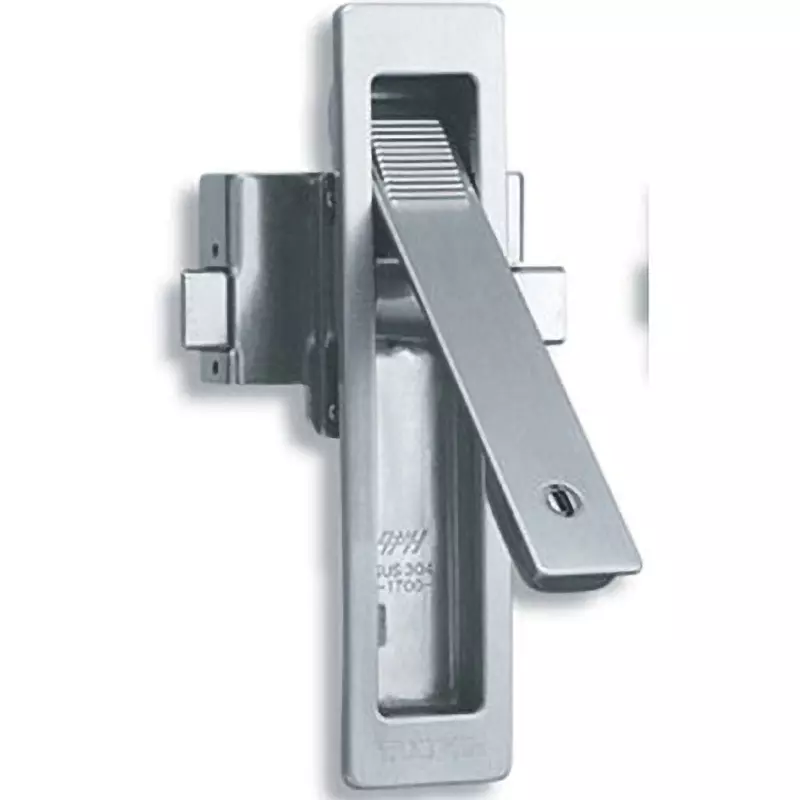

| Type of Product | Stainless Steel Flat Handle |
| Model No | A-1750-1-1R |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Stainless Steel Flat Handle |
Model No |
A-1750-1-1R |
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Weight |
240 g |

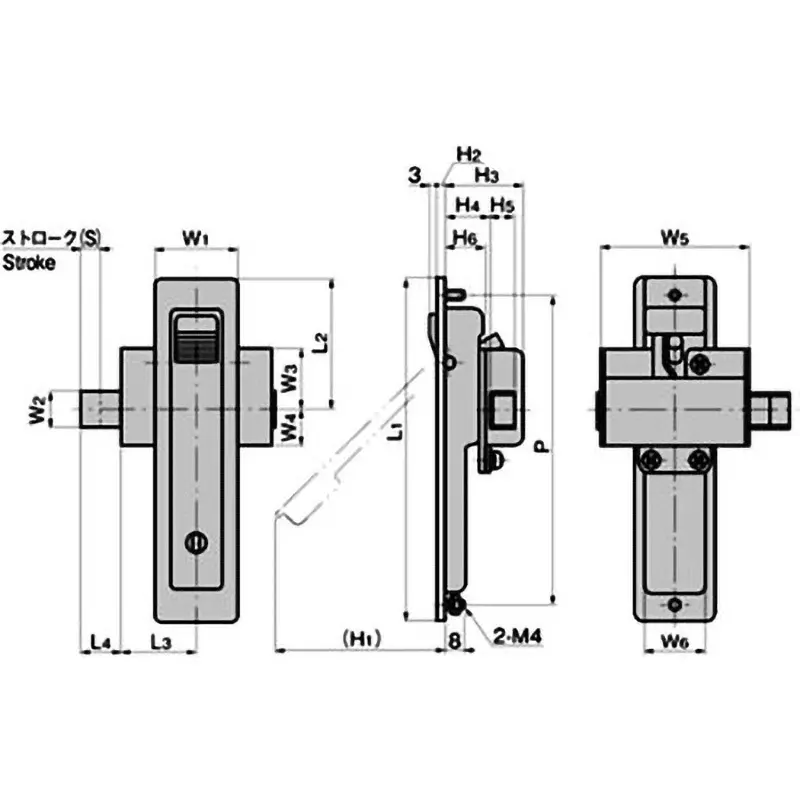

Dimensions P (mm) |
128 |
Dimensions L1 (mm) |
142 |
Dimensions l2 (mm) |
55 |
Monotaro ID |
61104672 |
Included Components |
Includes Two Screws And Keys |
Dimensions H2 (mm) |
3.5 |
Dimension H3 (mm) |
31.5 |
Dimensions W2 (mm) |
15 |
Dimension W3 (mm) |
25 |
Dimension H5 (mm) |
10 |
Dimensions H1 (mm) |
68 |
Dimension H4 (mm) |
18 |
Dimensions W1 (mm) |
33 |
Dimension L3 (mm) |
30.5 |
Suitable Thickness of Workpiece (mm) |
0 to 3.2 |
Dimensions l4 (mm) |
16 |
Dimensions l5 (mm) |
80 |
Dimension L6 |
76 mm |
Dimensions s (mm) |
7.5 |
