| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Thin Waterproof Flat Handle |
| Model No | A-1494-5(#0200) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Thin Waterproof Flat Handle |
Model No |
A-1494-5(#0200) |
Material |
Stainless Steel Casting (SUS304) |
Weight |
245 g |

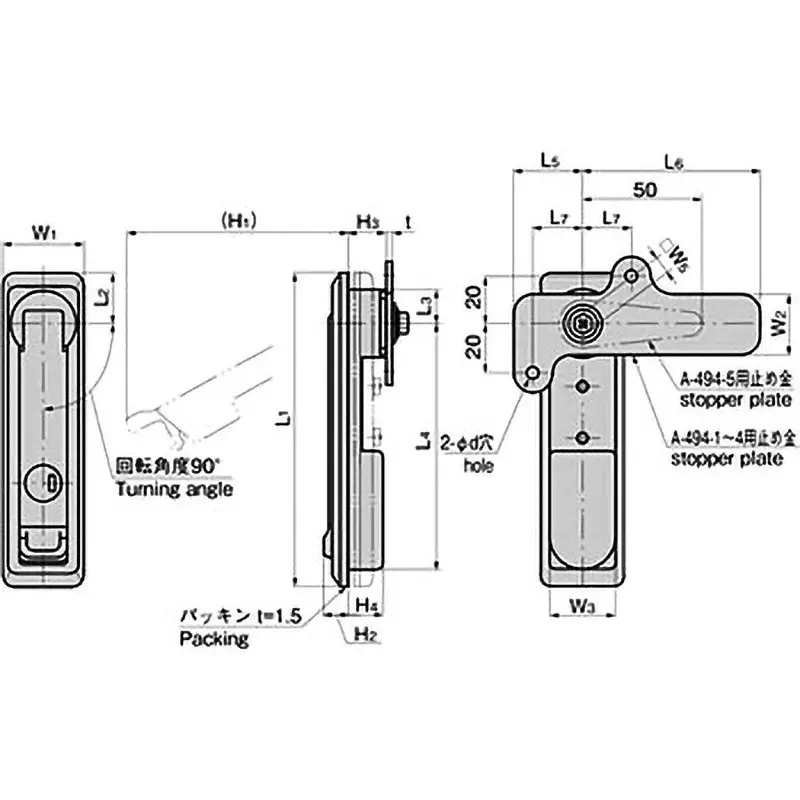

Dimensions L1 (mm) |
84 |
Dimensions l2 (mm) |
22.5 |
Monotaro ID |
62802032 |
Included Components |
2 Keys, Screw Set, Special Clasp, Mounting Plate |
Dimensions H2 (mm) |
12 |
Dimension H3 (mm) |
13 |
Dimensions W2 (mm) |
- |
Dimension W3 (mm) |
23 |
Dimensions H1 (mm) |
43 |
Dimension H4 (mm) |
12 |
Dimensions W1 (mm) |
30 |
Dimension L3 (mm) |
11.5 |
Suitable Thickness of Workpiece (mm) |
0.6 to 2.0 |
Dimensions l4 (mm) |
50.5 |
Dimensions l5 (mm) |
- |
Dimension L6 |
- |
Dimensions T (mm) |
2 |
Dimension L7 |
- |
