| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

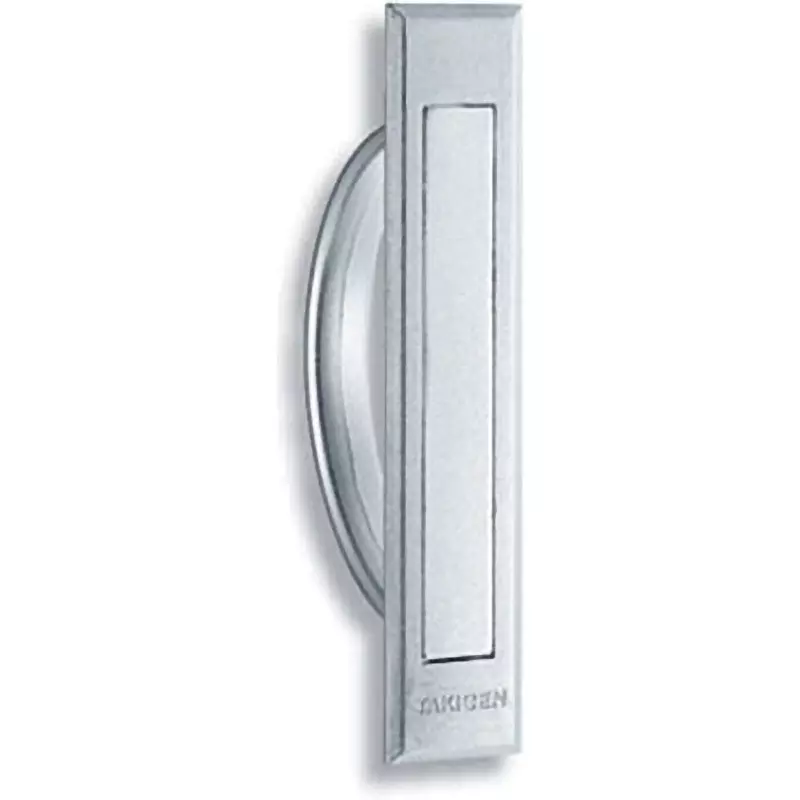

| Type of Product | Rotating Handle |
| Model No | A-174-3 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Rotating Handle |
Model No |
A-174-3 |
Material |
Zinc Alloy (ZDC) |
Weight |
45 g |

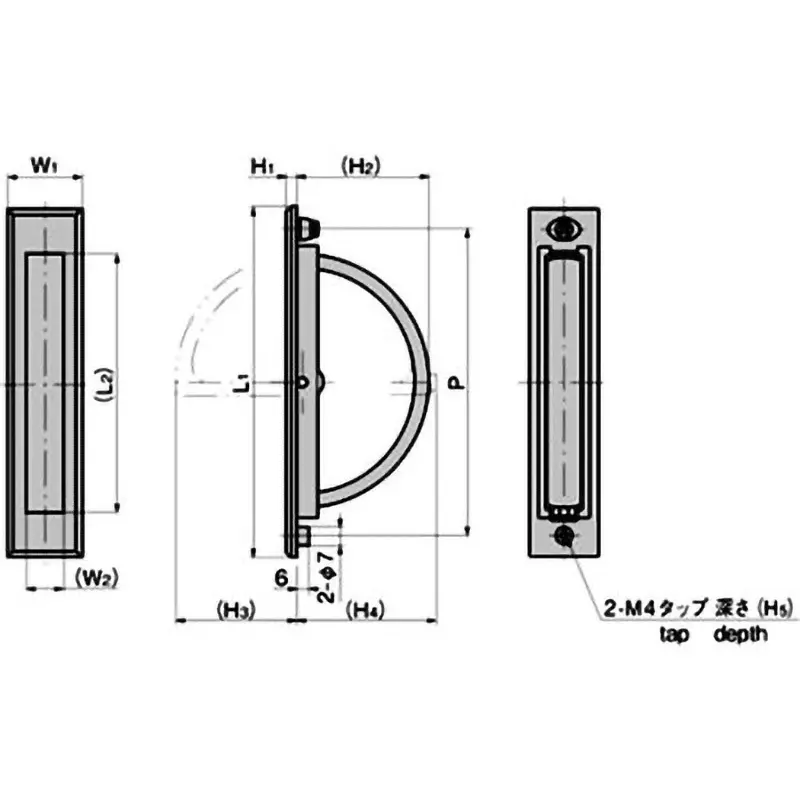

Dimensions P (mm) |
62 |
Dimensions L1 (mm) |
75 |
Surface Finish Type |
Satin Chrome Plating (MZCR) |
TAKIGEN Code |
397 |
Dimensions l2 (mm) |
44 |
Monotaro ID |
61096482 |
Maximum Panel Thickness (mm) |
1.8 |
Dimensions H2 (mm) |
24 |
Dimension H3 (mm) |
19 |
Dimensions W2 (mm) |
9 |
Dimension W3 (mm) |
13 |
Dimension H5 (mm) |
4 |
Dimensions H1 (mm) |
2 |
Dimension H4 (mm) |
27 |
Dimensions W1 (mm) |
15 |
Dimension L3 (mm) |
50 |
Working Load |
294N |
