| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG. CO., LTD. |

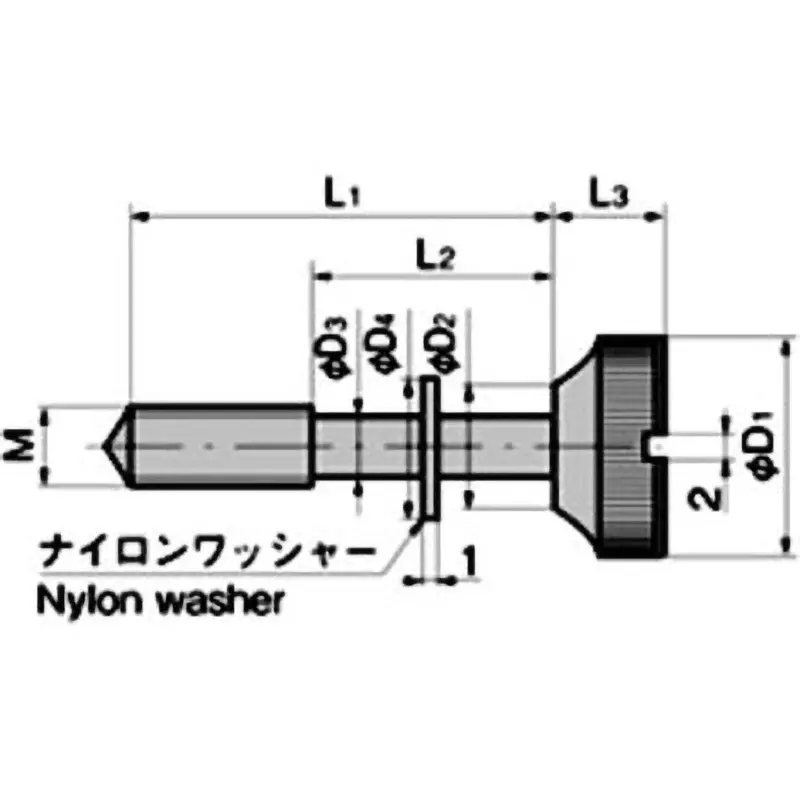

| Type of Product | Foot Length Knurl Knob (M6 X L1 = 36 X L2 = 21) |
| Model No | A-176-13 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Type of Product |
Foot Length Knurl Knob (M6 X L1 = 36 X L2 = 21) |
Model No |
A-176-13 |
Material |
Free-cutting brass bar (C3602BD) |
Application |
Distribution boards, control equipment, vending machines |
Surface Finish Type |
Body: Chrome plating (MBCr), Mounting part: Chrome plating (MBCr) |
TAKIGEN Code |
404 |
Monotaro ID |
61096613 |
Included Components |
1 nylon washer |
Dimension L3 (mm) |
9 |
Type |
Round type |
Dimension d2 (Φmm) |
10 |
Dimension d1 (Φmm) |
18 |
Dimension M |
M6 |
Dimension d3 (Φmm) |
4.8 |
Mass (g) |
20 |
Import Country |
Direct Import from Japan |
Dimension L1 |
36 mm |
Dimension L2 |
21 mm |
Connection to Equipment |
Male screw |
Nominal Size of Screw |
M6 |
Mounting Material |
Free-cutting brass bar (C3602BD) |
Mounting Length (mm) |
36 |
Dimension d4 (mm) |
10 |
