| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Latching Flat Handle |
| Model No | A-510-3-1-L(#0200) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Latching Flat Handle |
Model No |
A-510-3-1-L(#0200) |
Material |
Aluminum Alloy (ADC) |
Weight |
615 g |

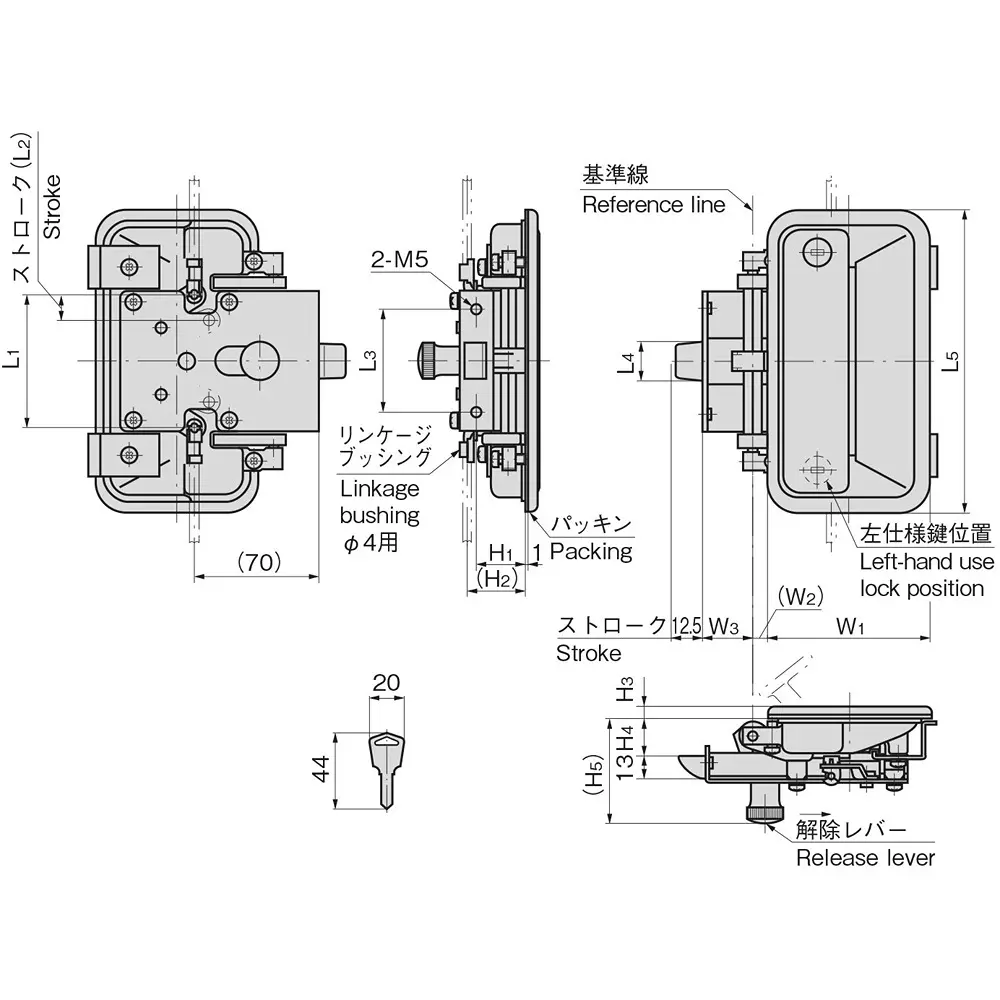

Dimensions L1 (mm) |
100 |
Surface Finish Type |
Satellite Chrome Plating (MACR) |
Dimensions l2 (mm) |
7 |
Monotaro ID |
54340293 |
Included Components |
2 Keys |
Dimensions H2 (mm) |
36.5 |
Dimension W4 (mm) |
61 |
Dimension H3 (mm) |
5 |
Dimensions W2 (mm) |
10.5 |
Dimension W3 (mm) |
30 |
Dimension H5 (mm) |
62 |
Dimensions H1 (mm) |
28 |
Dimension H4 (mm) |
22 |
Dimensions W1 (mm) |
69 |
Dimension L3 (mm) |
50 |
Dimensions l4 (mm) |
18 |
Dimensions l5 (mm) |
134.5 |
Dimension L6 |
127 mm |
Dimensions R (mm) |
9 |
