| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Plane Handle |
| Model No | A-250-2-2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Plane Handle |
Model No |
A-250-2-2 |
Material |
Zinc Alloy (ZDC) |
Weight |
163 g |

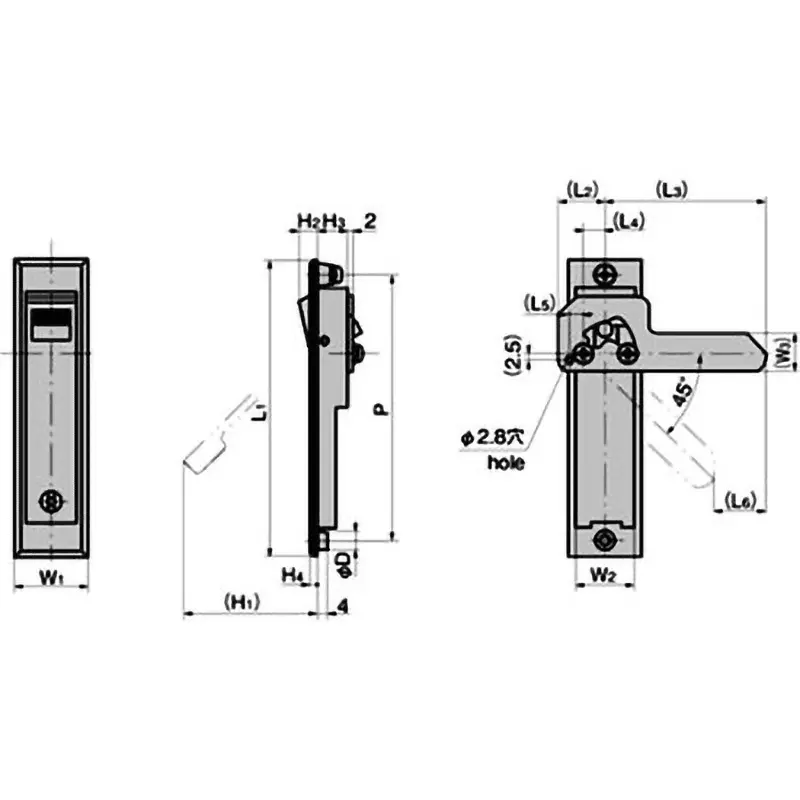

Dimensions P (mm) |
105 |
Dimensions L1 (mm) |
117 |
Dimensions l2 (mm) |
18.5 |
Monotaro ID |
61098512 |
Included Components |
Screw Set, Special Clasp |
Dimensions H2 (mm) |
7 |
Dimension H3 (mm) |
12 |
Dimensions W2 (mm) |
23 |
Dimension W3 (mm) |
15 |
Dimension D (Φmm) |
7 |
Dimensions H1 (mm) |
50 |
Dimension H4 (mm) |
3 |
Dimensions W1 (mm) |
28 |
Dimension L3 (mm) |
61.5 |
Suitable Thickness of Workpiece (mm) |
0 to 2.5 |
Dimensions l4 (mm) |
8.5 |
Dimensions l5 (mm) |
5.5 |
Dimension L6 |
20 mm |
Dimensions R (mm) |
4 |
