| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

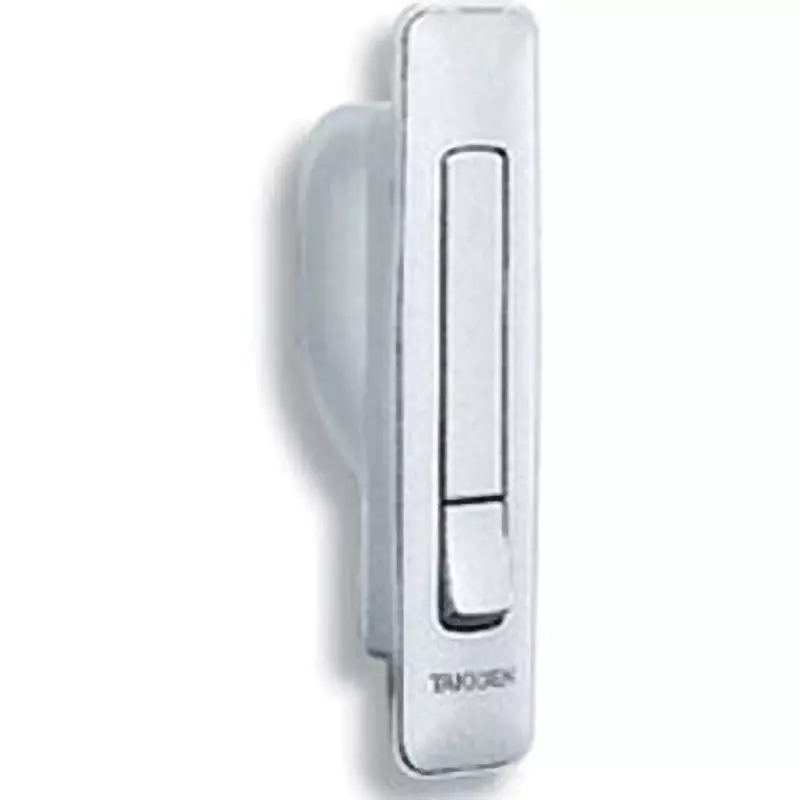

| Type of Product | Push Button Rotary Handle |
| Model No | A-174-P-3 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Push Button Rotary Handle |
Model No |
A-174-P-3 |
Material |
Zinc Alloy (ZDC) |
Weight |
90 g |

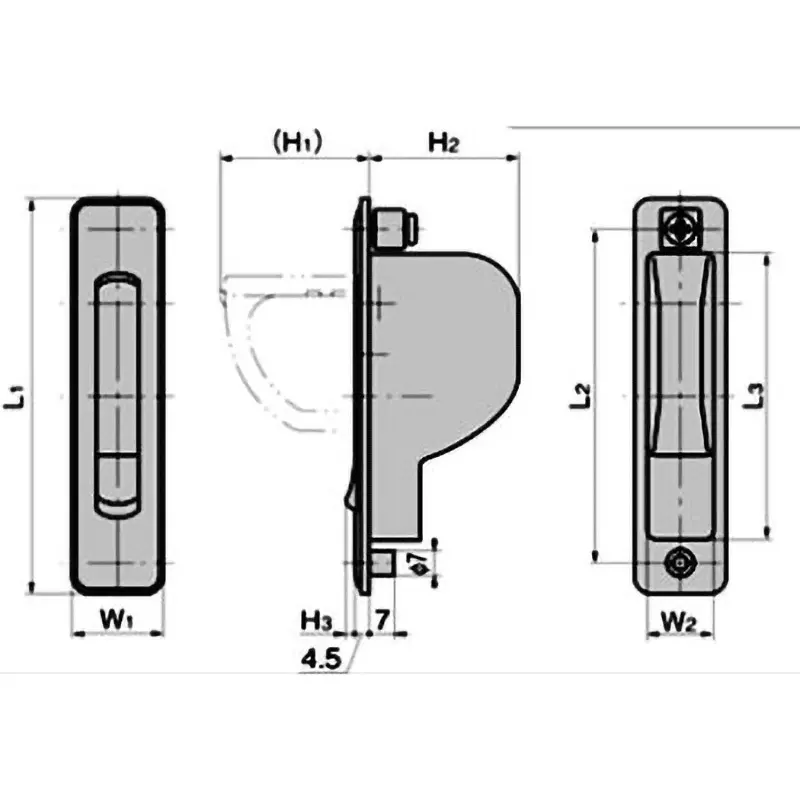

Dimensions P (mm) |
78 |
Dimensions L1 (mm) |
92 |
Surface Finish Type |
Baking Painting (Silver Metallic) |
TAKIGEN Code |
1713 |
Dimensions l2 (mm) |
78 |
Monotaro ID |
61096534 |
Included Components |
Mounting Screw |
Maximum Panel Thickness (mm) |
4 |
Dimensions H2 (mm) |
37 |
Dimension H3 (mm) |
1.8 |
Dimensions W2 (mm) |
15 |
Dimension W3 (mm) |
16 |
Dimensions H1 (mm) |
33 |
Dimensions W1 (mm) |
21 |
Dimension L3 (mm) |
66 |
Dimensions l4 (mm) |
60 |
Dimensions l5 (mm) |
54.5 |
Dimension L6 |
67 mm |
