| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Waterproof Collar Lock Handle |
| Model No | A-1310-1 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Waterproof Collar Lock Handle |
Model No |
A-1310-1 |
Weight |
590 g |

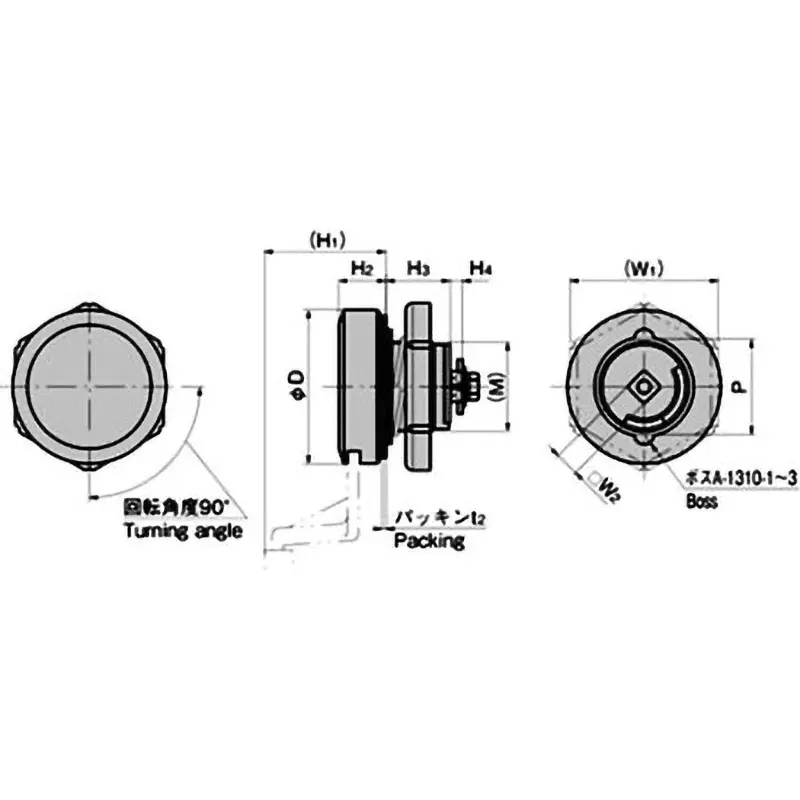

Dimensions P (mm) |
38.5 |
Surface Finish Type |
Body: Cutting |
TAKIGEN Code |
1083 |
Monotaro ID |
61104058 |
Included Components |
Large Nut and Screw Set |
Maximum Panel Thickness (mm) |
1.6 to 8 |
Dimensions H2 (mm) |
19 |
Dimension H3 (mm) |
26 |
Dimensions W2 (mm) |
10 |
Dimension D (Φmm) |
62 |
Dimensions H1 (mm) |
48.5 |
Dimension H4 (mm) |
5 |
Dimensions W1 (mm) |
60 |
Dimensions R (mm) |
4.5 |
Main Unit Material |
Stainless Steel Casting (SUS304) |
Dimension M |
M36 |
Dimension t2 (mm) |
1.5 |
Import Country |
Direct Import from Japan |
